Installation

POWER STEERING: POWER STEERING ECU: INSTALLATION

1. INSTALL POWER STEERING ECU ASSEMBLY

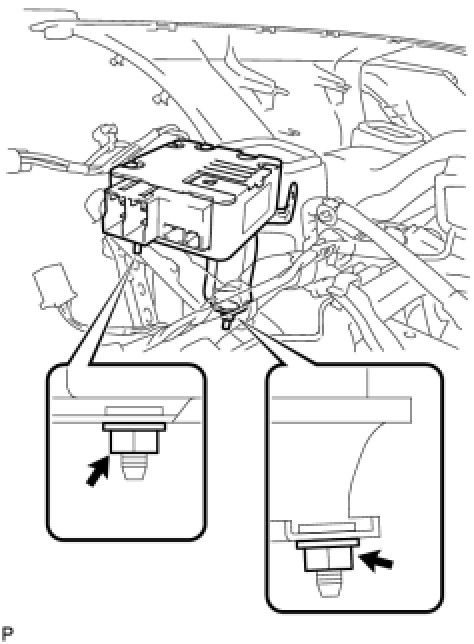

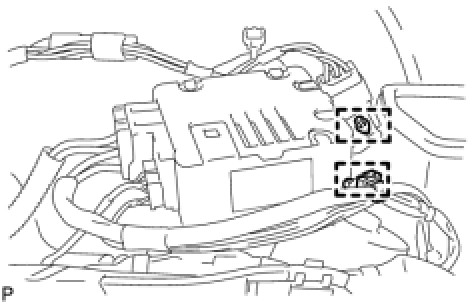

(a) Install the power steering ECU with the 2 nuts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

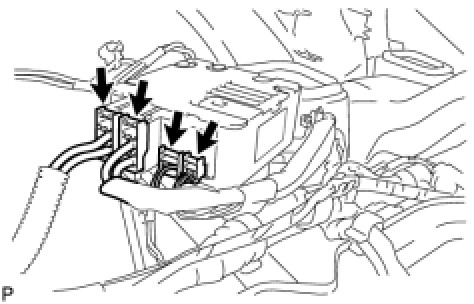

(b) Connect the 4 connectors.

(d) Install the 2 wire harness clamps onto the power steering ECU assembly.

2. INSTALL UPPER INSTRUMENT PANEL Installation

3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

4. INSTALL INSTRUMENT CLUSTER FINISH PANEL RETAINER Installation

5. INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY Installation

6. INSTALL COMBINATION METER ASSEMBLY Installation

7. INSTALL INSTRUMENT CLUSTER FINISH PANEL Installation

8. INSTALL FRONT PILLAR GARNISH RH Installation

9. INSTALL FRONT PILLAR GARNISH LH Installation

10. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation

11. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation

13. INSPECT SRS WARNING LIGHT Installation

14. INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT

Programming and Relearning
