Installation

WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH: INSTALLATION

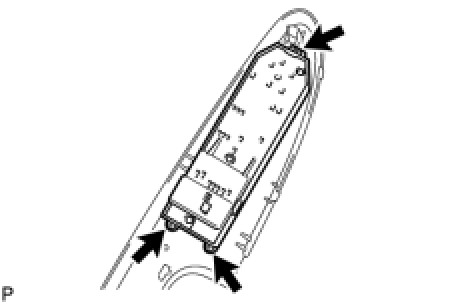

1. INSTALL POWER WINDOW MASTER SWITCH





(a) Install the power window master switch with the 3 screws.

2. INSTALL FRONT ARMREST BASE UPPER PANEL LH

HINT
Use the same procedure as for the RH side Reassembly.
