Shift Lever Assembly: Components: Illustration

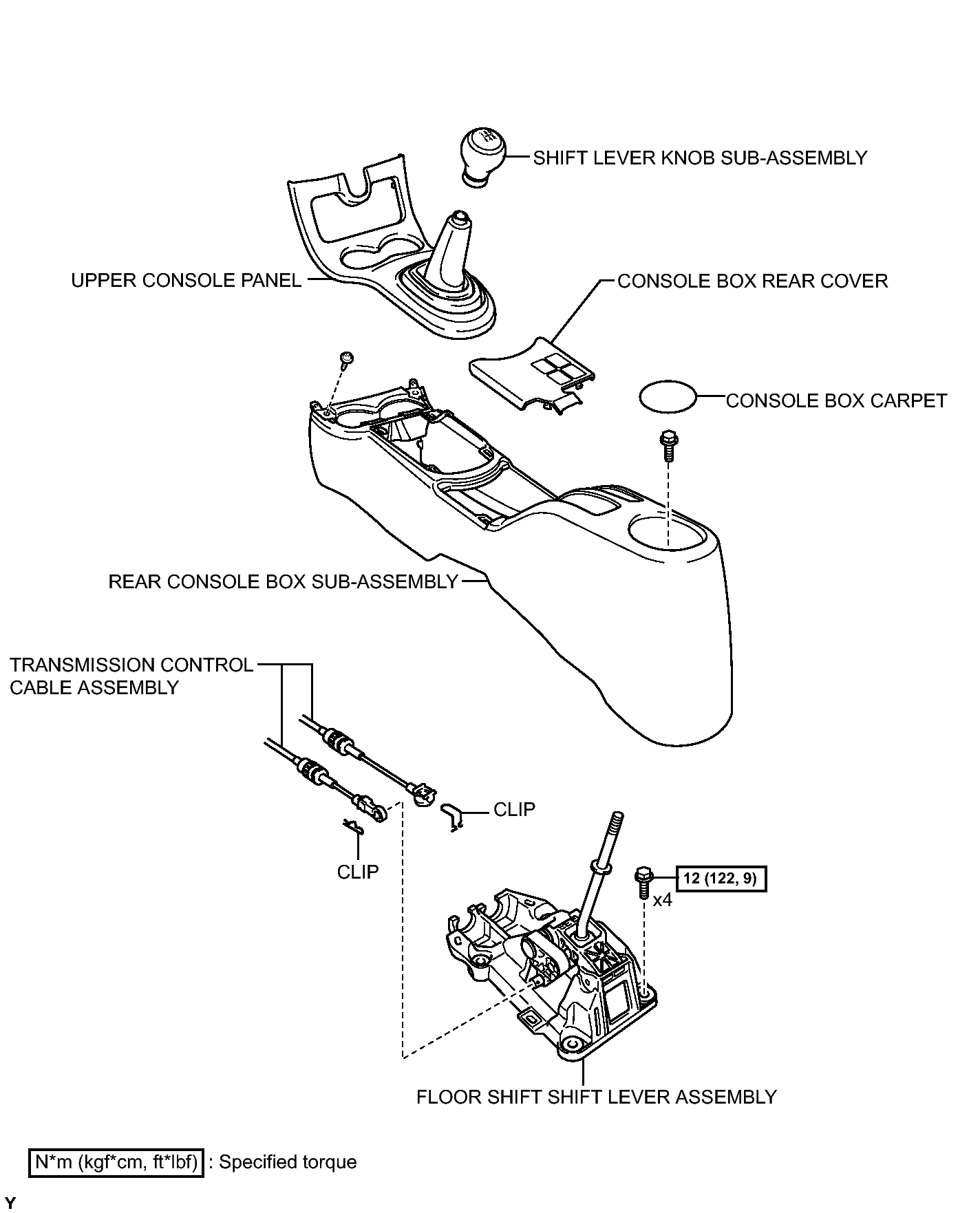

Fig 1: Identifying Shift Lever Assembly Replacement Components With Torque Specification
GTY158057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
