Key Reminder and Light Reminder: Notes

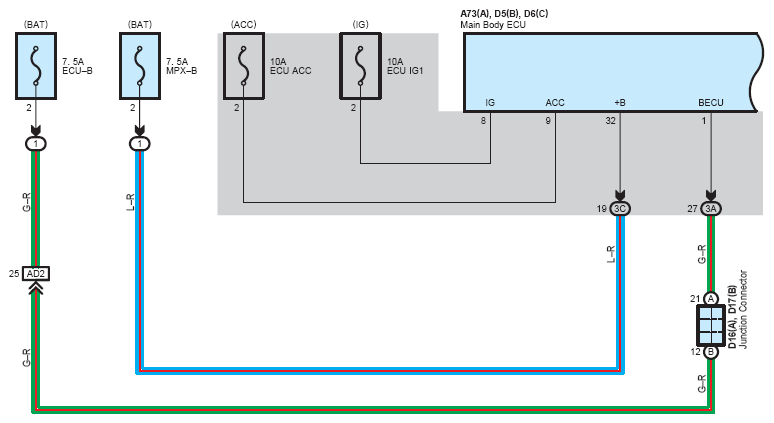

Fig 1: Key Reminder And Light Reminder - Wiring Diagram (1 Of 4)
G08774147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

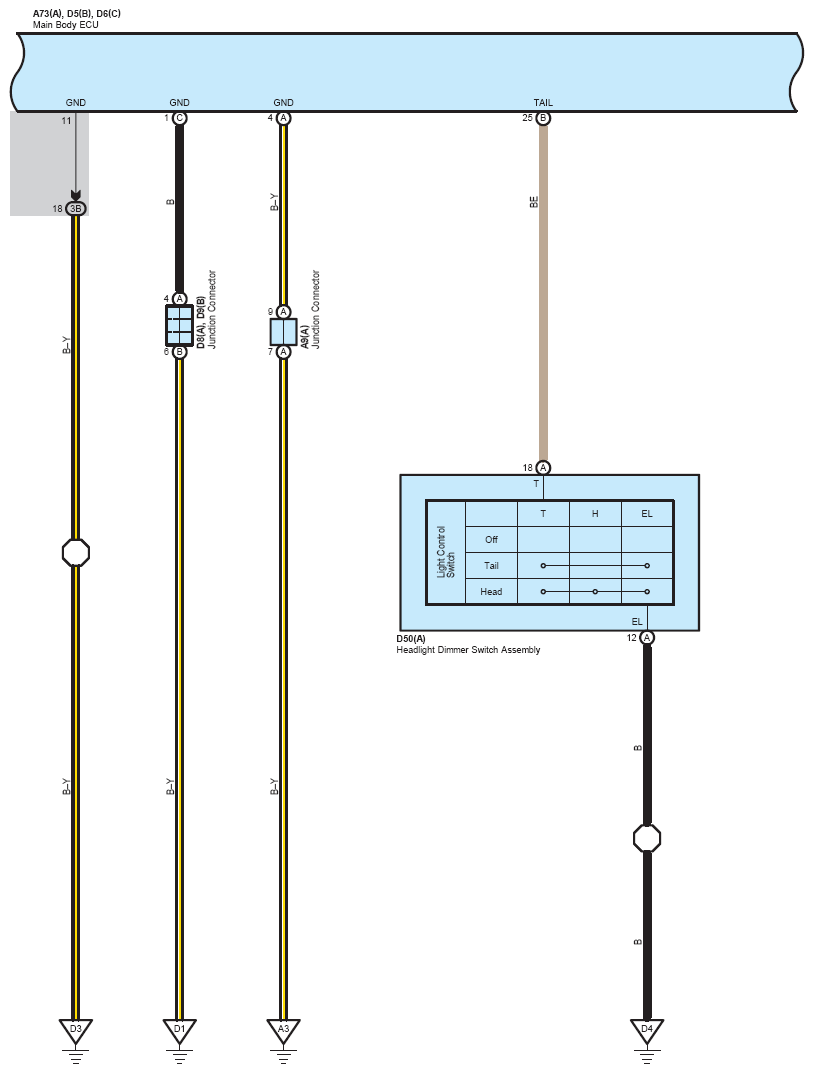

Fig 2: Key Reminder And Light Reminder - Wiring Diagram (2 Of 4)
G08774148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

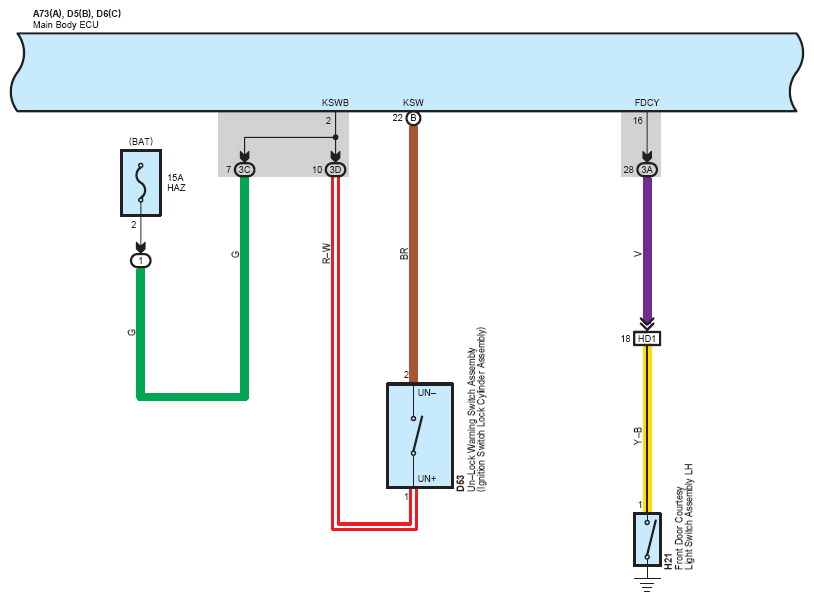

Fig 3: Key Reminder And Light Reminder - Wiring Diagram (3 Of 4)
G08774149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

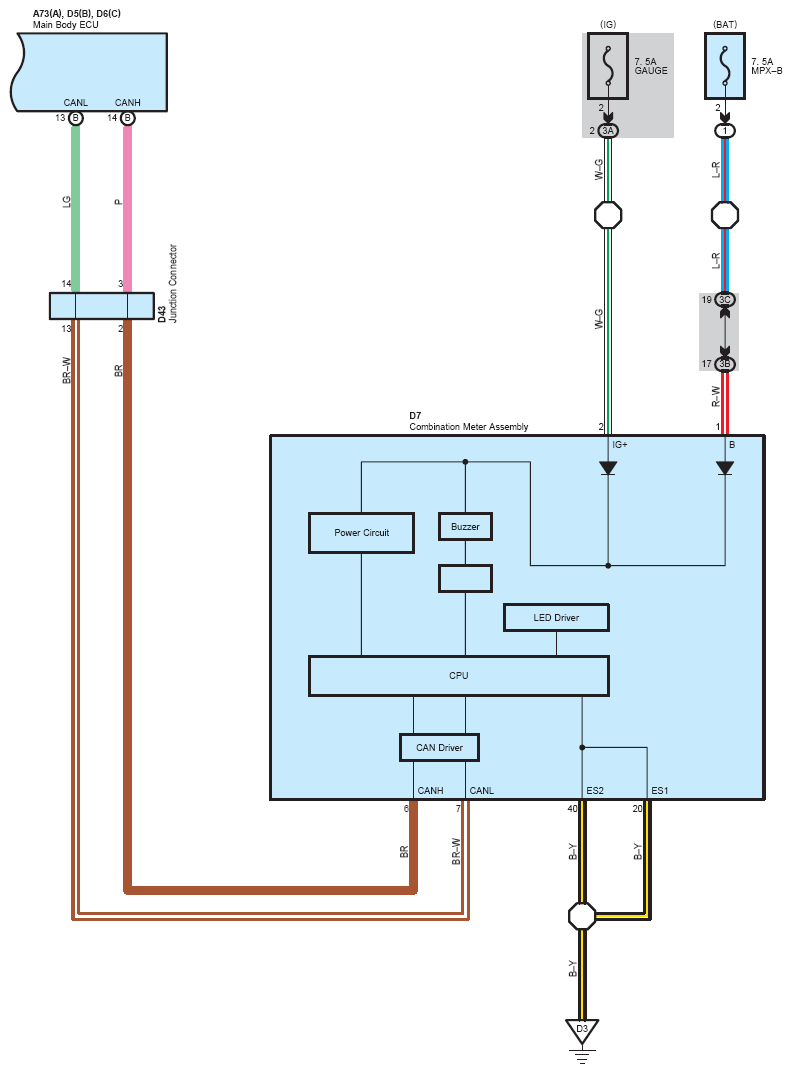

Fig 4: Key Reminder And Light Reminder - Wiring Diagram (4 Of 4)
G08774150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
