Emission Control Systems: Locations

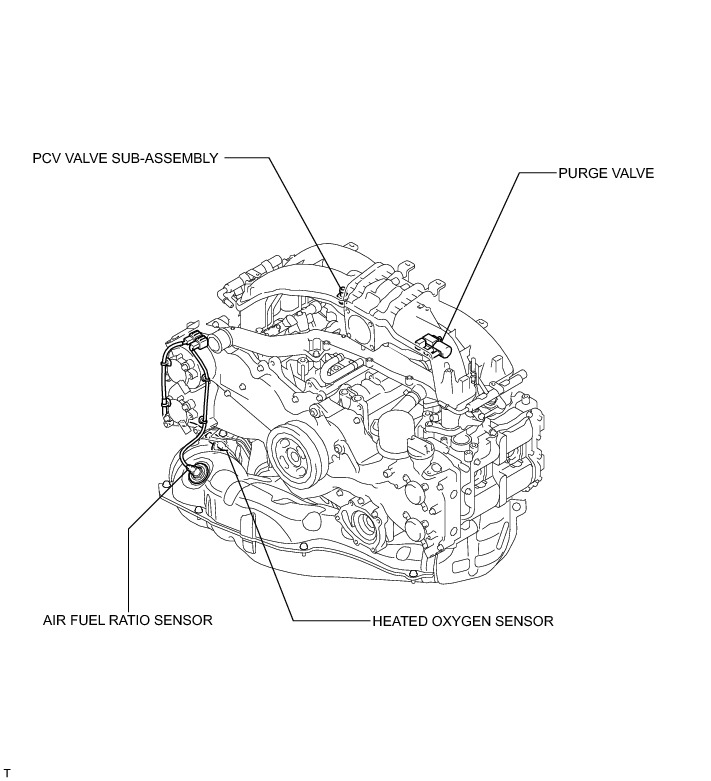

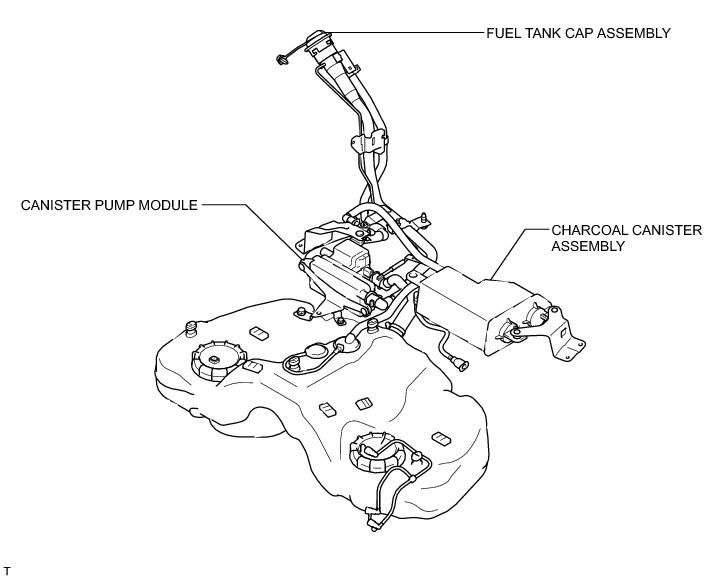

FA20 EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION; 2013 MY FR-S [03/2012 -]
