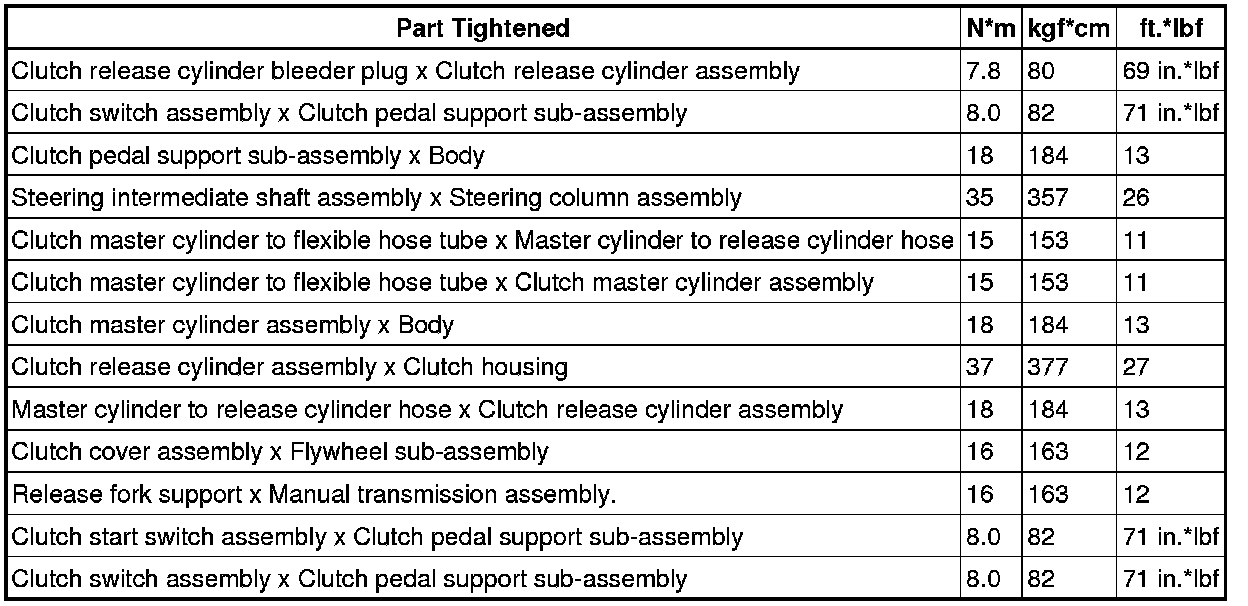

Torque Specifications






SPECIFICATIONS: CLUTCH: TORQUE SPECIFICATIONS; 2013 MY FR-S [03/2012 -]















Clutch Cover Bolts













Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
Tighten the 6 bolts in order, starting with the bolt located near the knock pin at the top
