Illumination and Taillight: Notes

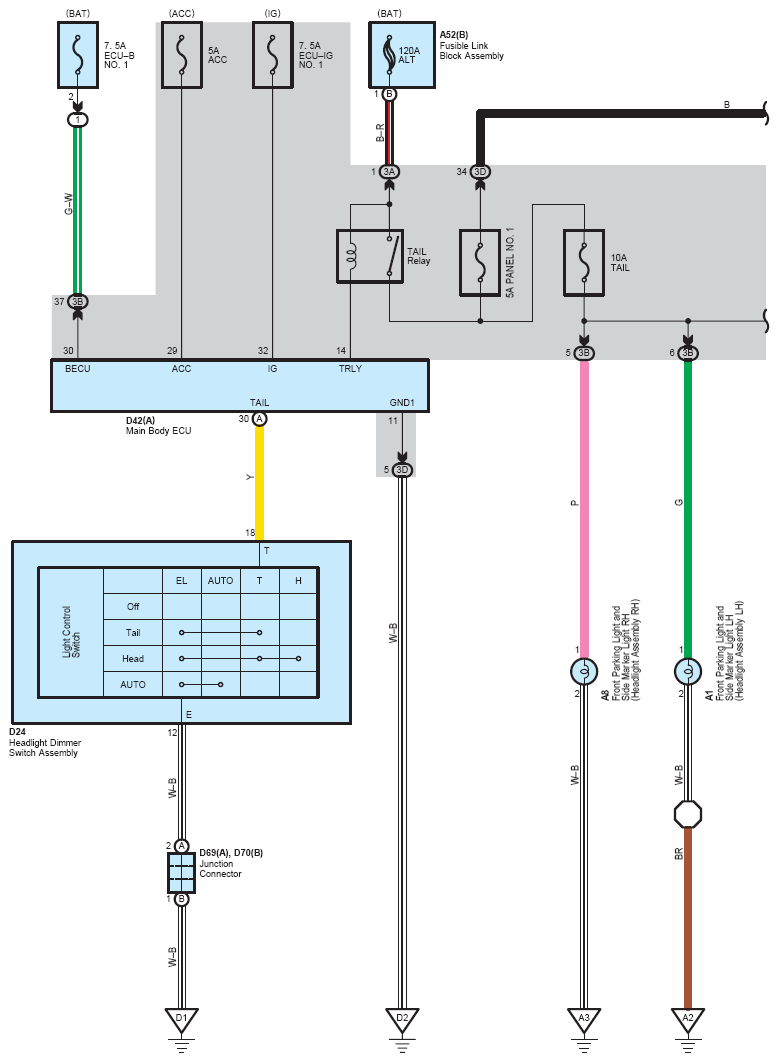

Fig 1: Illumination And Taillight - Wiring Diagram (1 Of 4)
G08774671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

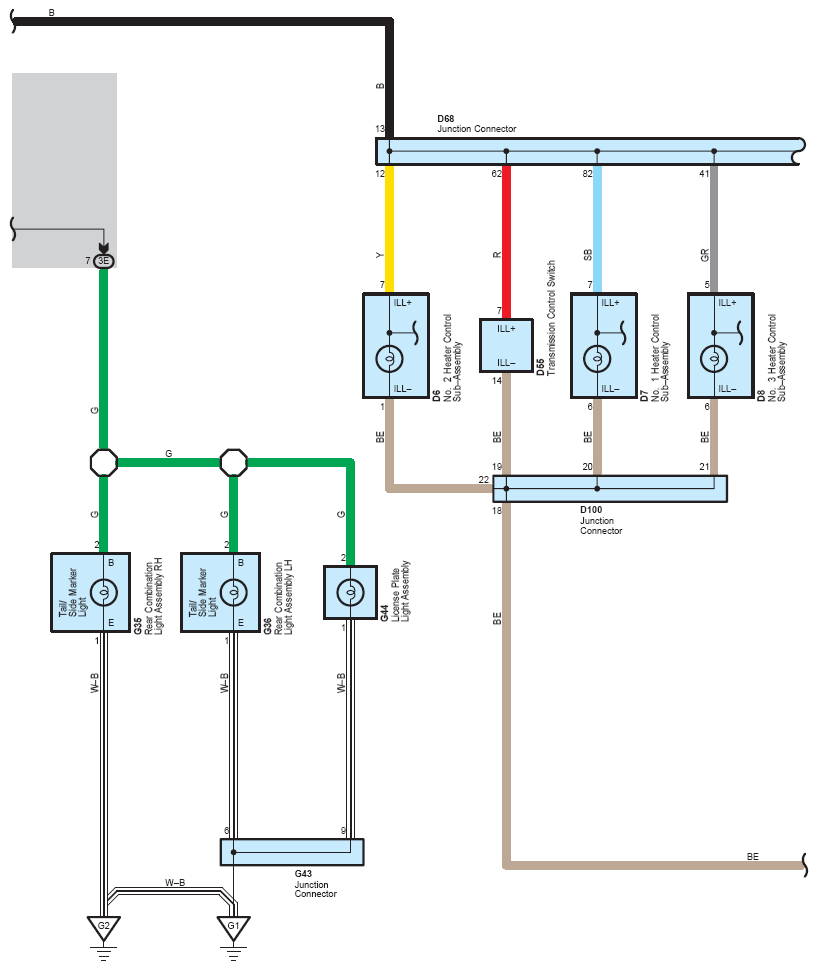

Fig 2: Illumination And Taillight - Wiring Diagram (2 Of 4)
G08774672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

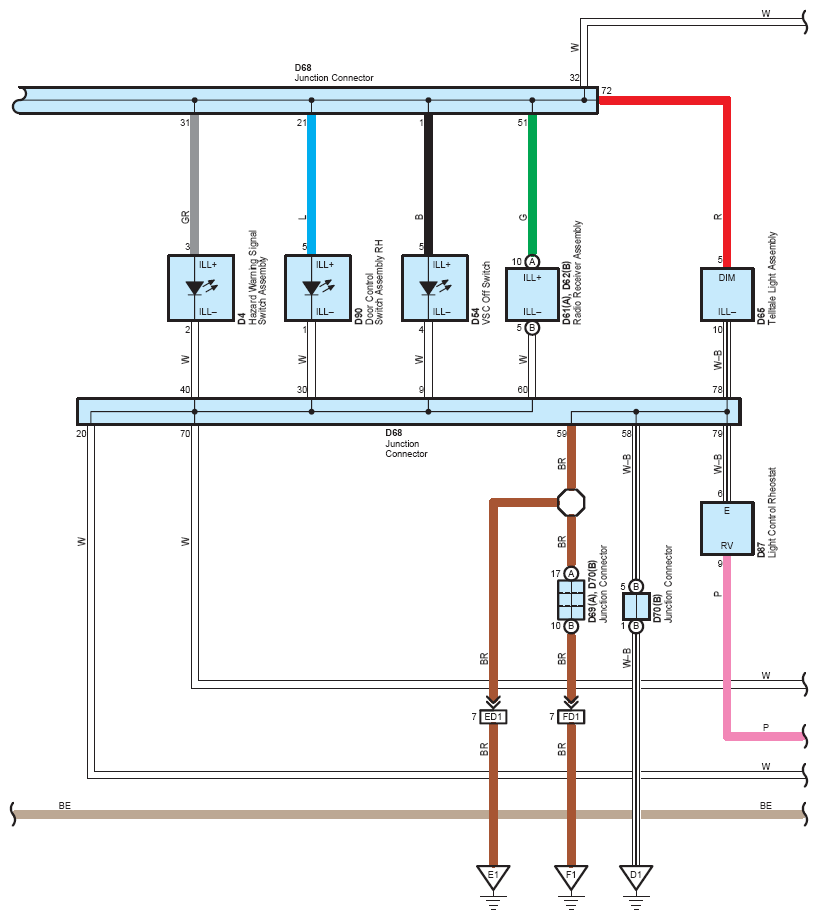

Fig 3: Illumination And Taillight - Wiring Diagram (3 Of 4)
G08774673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

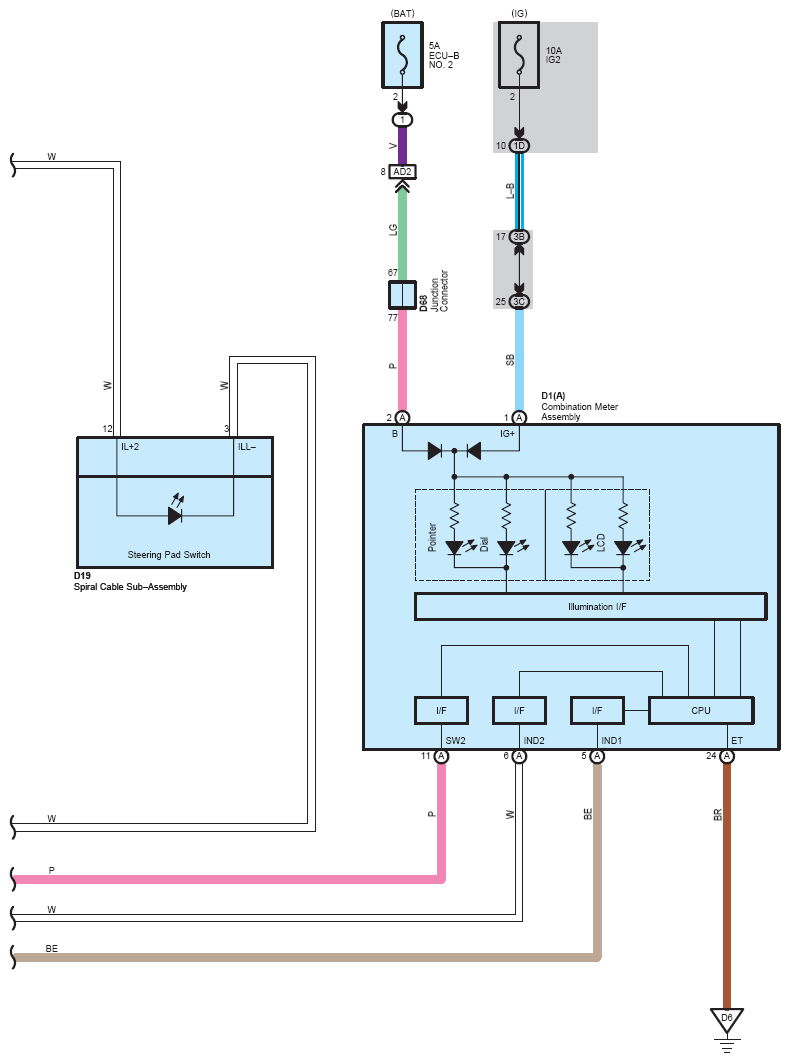

Fig 4: Illumination And Taillight - Wiring Diagram (4 Of 4)
G08774674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
