Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

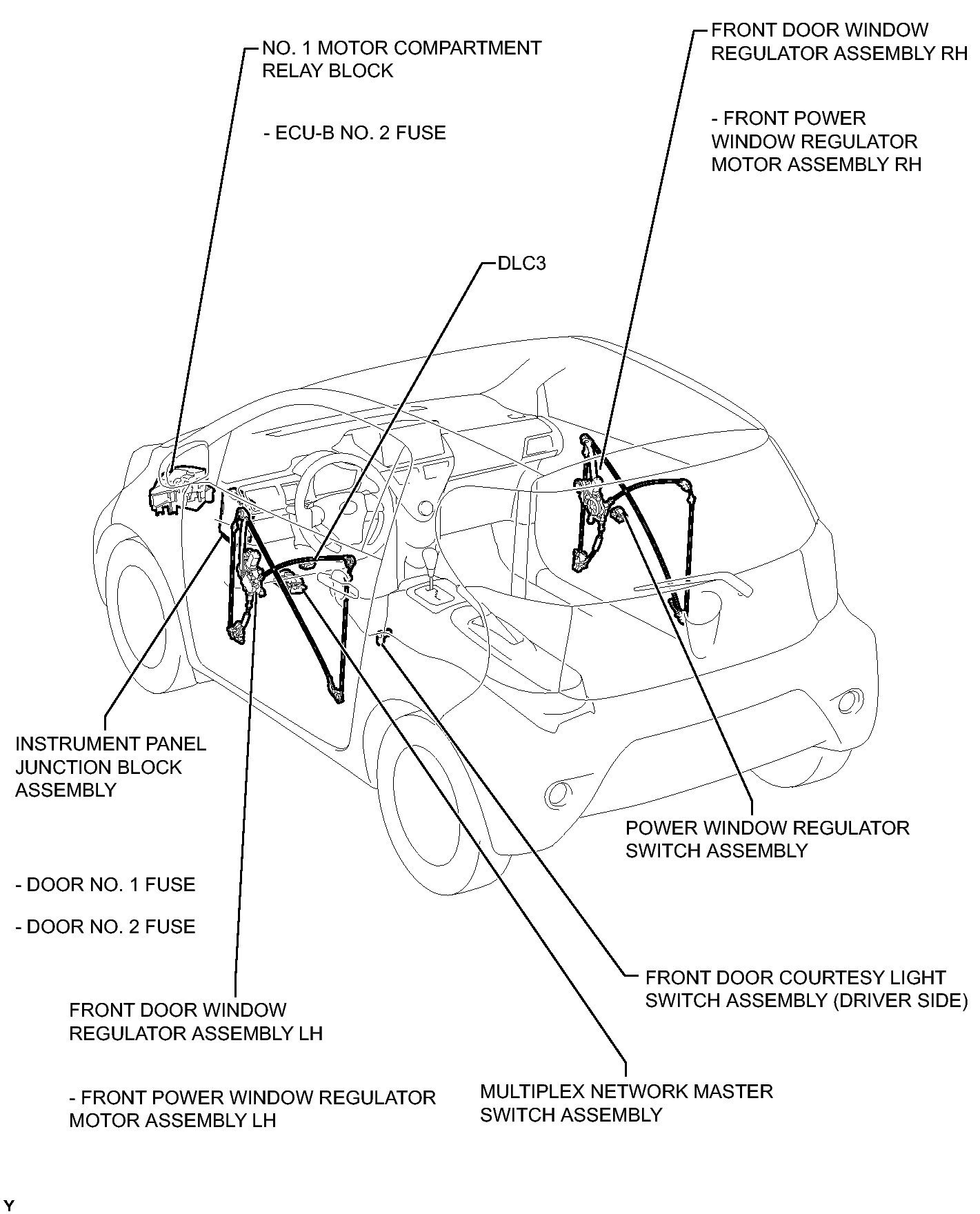

Fig 1: Identifying Power Window Control System Replacement Components Location
GTY390495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
