Front Speed Sensor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

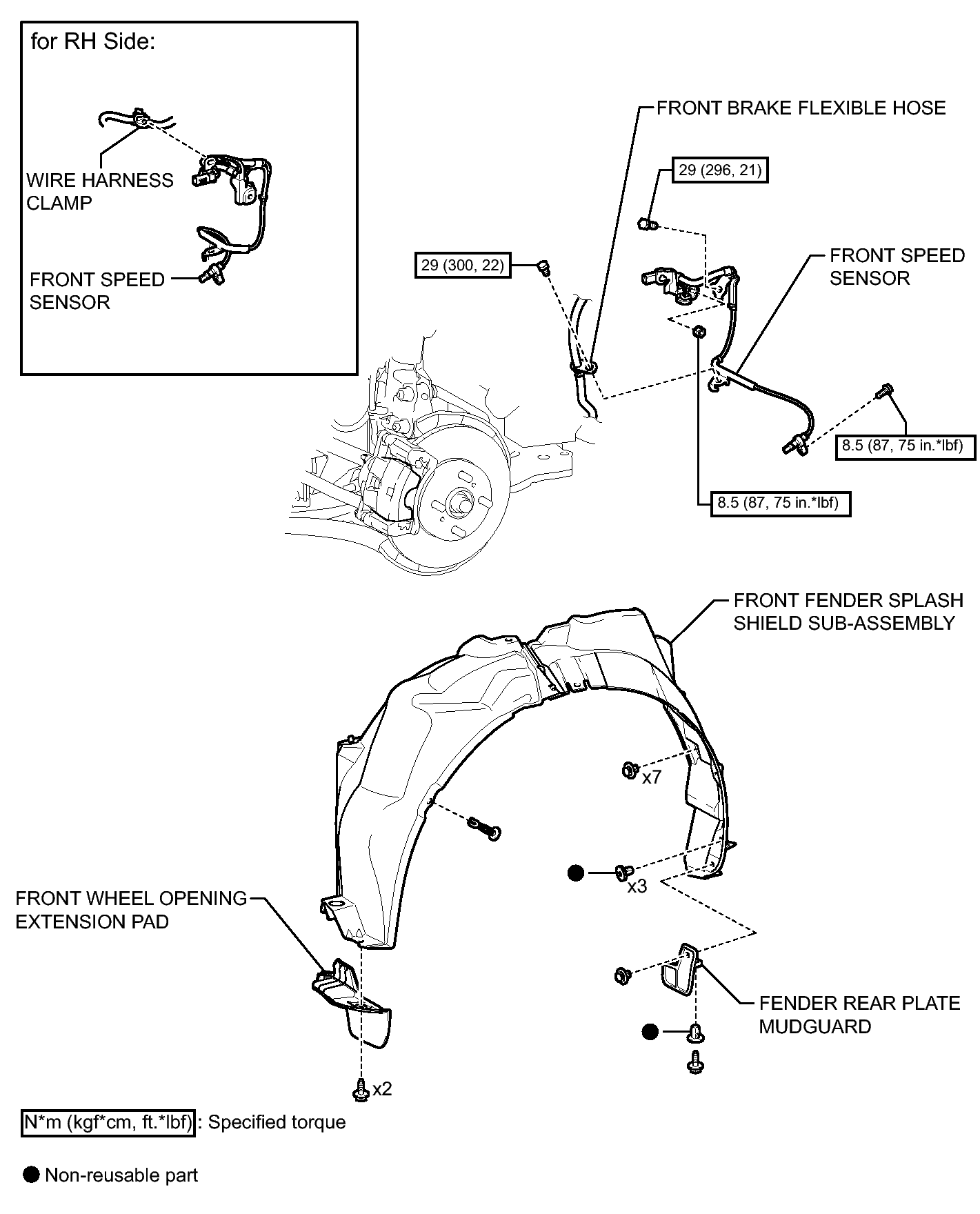

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specifications
GTY386057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
