Fuel Tank: Installation: Installation

  1. INSTALL NO. 2 FUEL TANK CUSHION
    1. Install the 3 No. 2 fuel tank cushions to the fuel tank assembly.
  2. INSTALL FUEL TANK ASSEMBLY
    1. Engage the hose clamp and install the fuel tank vent hose to the fuel tank assembly.
    2. Engage the hose clamp and install the fuel tank main tube sub-assembly to the fuel tank assembly.
    3. Clean the bolt hole and remove any grease.
    4. Install the fuel tank assembly to the vehicle with 4 new bolts.

      Torque: 14 N*m (146 kgf*cm, 11 ft.*lbf)

  3. CONNECT FUEL TANK TO FILLER PIPE HOSE
    1. Connect the fuel tank to filler pipe hose to the fuel tank assembly and tighten the hose clamp.
  4. CONNECT FUEL TANK BREATHER TUBE SUB-ASSEMBLY
    1. Align the fuel tank breather tube sub-assembly connector with the fuel tank filler pipe sub-assembly, push the fuel tank breather tube sub-assembly connector in until the fuel tank breather tube sub-assembly connector retainer makes a click sound, then lock the fuel tank breather tube sub-assembly connector cover of the fuel tank breather tube sub-assembly connector.
      Fig 1: Connecting Fuel Tank Breather Tube Sub-Assembly
      GTY388244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Fuel Tank Breather Tube Sub-assembly Connector Cover
      *2 Fuel Tank Breather Tube Sub-assembly Connector
      *3 O-ring
      *4 Fuel Tank Breather Tube Sub-assembly Connector Retainer
      *5 Nylon Tube
      Push
      NOTE:
      • Check that there are no scratches or foreign matter on the disconnected parts of the fuel tank breather tube sub-assembly connector and fuel tank filler pipe sub-assembly before performing this work.
      • After connecting, pull the fuel tank filler pipe sub-assembly and fuel tank breather tube sub-assembly connector to make sure that they are securely connected.
  5. CONNECT FUEL TANK VENT HOSE
    1. Connect the fuel tank vent hose to the charcoal canister assembly and lock it by pushing in the fuel tank vent hose retainer.

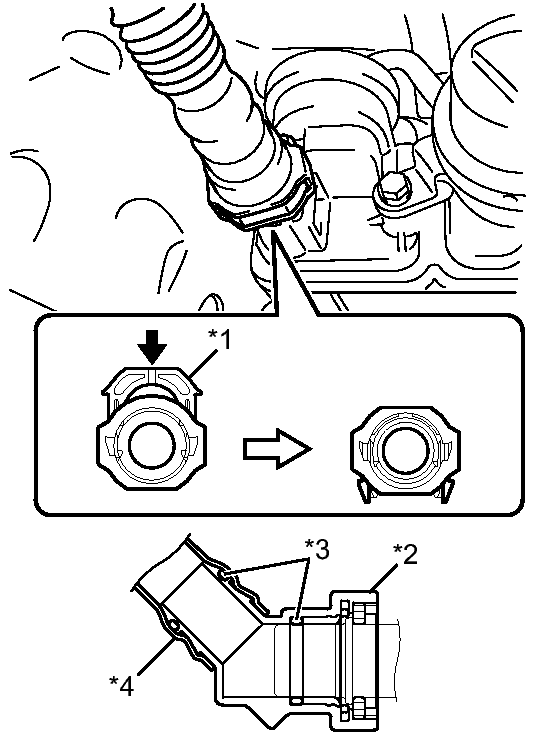

      Fig 2: Connecting Fuel Tank Vent Hose
      GTY388959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Fuel Tank Vent Hose Connector Retainer
      *2 Fuel Tank Vent Hose Connector
      *3 O-ring
      *4 Nylon Tube
      Push
      NOTE:
      • Check that there are no scratches or foreign objects on the connecting part.
      • Check that the fuel tank vent hose is inserted securely.
      • After installing the fuel tank vent hose retainer, check that the fuel tank vent hose is securely connected by pulling on it.

      HINT:

      • Insert the inlet tube until a "click" sound is heard.
      • The quick connector cannot be locked when the tube is not inserted securely.
  6. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Align the fuel tank main tube sub-assembly connector with the fuel main tube, push the fuel tank main tube sub-assembly connector in until the fuel tank main tube sub-assembly connector retainer makes a click sound, then lock the cover of the fuel tank main tube sub-assembly connector.
      Fig 3: Connecting Fuel Tank Main Tube Sub-Assembly
      GTY391096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Fuel Tank Main Tube Sub-assembly Connector Cover
      *2 Fuel Tank Main Tube Sub-assembly Connector
      *3 O-ring
      *4 Fuel Tank Main Tube Sub-assembly Connector Retainer
      *5 Nylon Tube
      Push
      NOTE:
      • Check that there are no scratches or foreign matter on the disconnected parts of the fuel tank main tube sub-assembly connector and fuel main tube before performing this work.
      • After connecting, pull the fuel main tube and fuel tank main tube sub-assembly connector to make sure that they are securely connected.
  7. INSTALL FUEL TANK COVER VENT CASE SUB-ASSEMBLY
    1. Install the fuel tank cover case sub-assembly to the vehicle with the bolt and clip.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  8. INSTALL NO. 4 FRONT FLOOR HEAT INSULATOR
    1. Install the No. 4 front floor heat insulator to the vehicle with the 2 nuts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  9. INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE  See step  1
  10. INSTALL FUEL PUMP GAUGE RETAINER  See step  2
  11. CONNECT FUEL TANK VENT HOSE  See step  3
  12. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY  See step  4
  13. INSTALL REAR FLOOR SERVICE HOLE COVER  See step  5
  14. INSTALL REAR SEAT ASSEMBLY  . Refer to INSTALLATION - Step 1
  15. INSTALL NO. 2 REAR SEAT LEG COVER  . Refer to INSTALLATION - Step 2
  16. INSTALL NO. 1 REAR SEAT LEG COVER  . Refer to INSTALLATION - Step 3
  17. ADD FUEL
  18. INSPECT FOR FUEL LEAK

    Refer to PRECAUTION
