Removal [07/2015 - ]: Procedure

  1. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the negative battery cable.

      Refer to REMOVAL [07/2015 - ]

    2. Lift up the vehicle.
    3. Remove the screw.

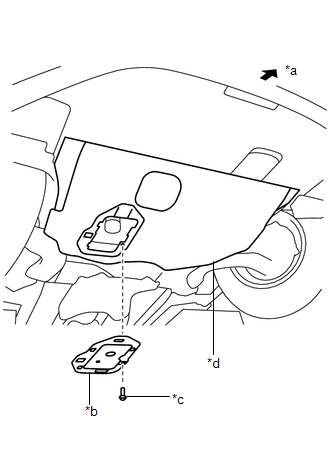

      GTY487499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Vehicle Front
      *b Service Hole Cover
      *c Screw
      *d Front Under Cover No. 2
    4. Remove the service hole cover (installed to front under cover No. 2).
    5. Disconnect the CKP sensor connector.
    6. Remove the bolt.

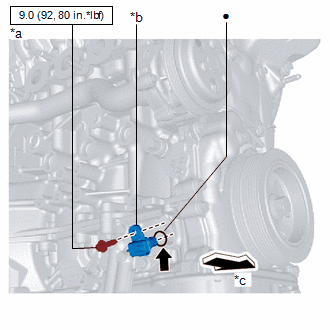

      GTY493429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt
      *b CKP Sensor
      *c Vehicle Front
      • Non-reusable part
      Oil
    7. Remove the CKP sensor.
