Components [06/2015 - ]: Illustration

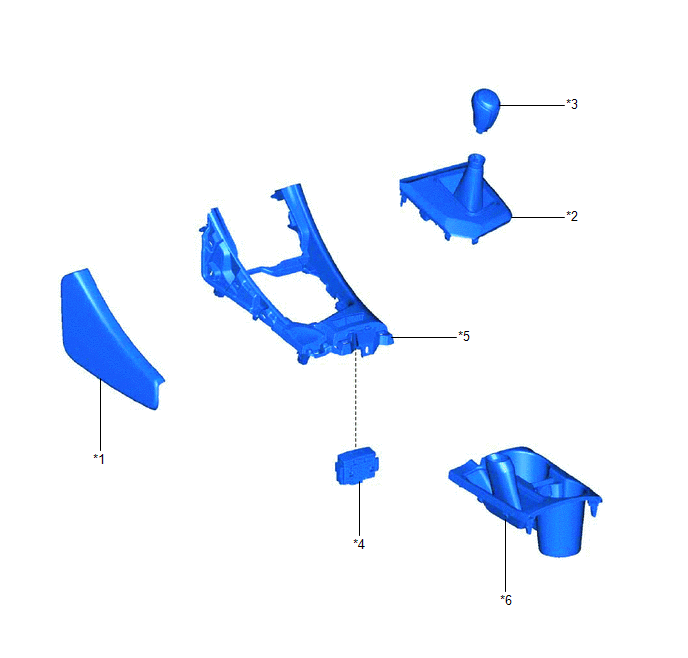

Fig 1: Pattern Select Switch Replacement Components
GTY487937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL *2 POSITION INDICATOR HOUSING ASSEMBLY
*3 SHIFT LEVER KNOB SUB-ASSEMBLY *4 SPORT SWITCH (COMBINATION SWITCH ASSEMBLY)
*5 UPPER CONSOLE PANEL *6 UPPER CONSOLE PANEL SUB-ASSEMBLY
