Removal [06/2015 - ]: Procedure

  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3

  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  3. REMOVE POSITION INDICATOR HOUSING ASSEMBLY

    Refer to PROCEDURE - Step 7

  4. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  5. REMOVE UPPER CONSOLE PANEL

    Refer to PROCEDURE - Step 9

  6. REMOVE SPORT SWITCH (COMBINATION SWITCH ASSEMBLY)

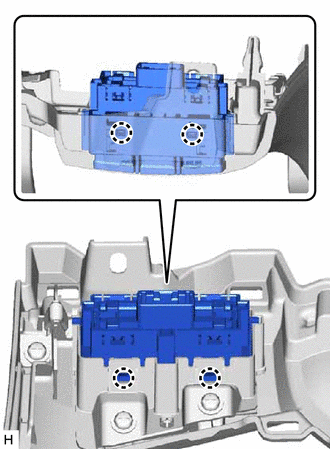

    1. Disengage the 4 claws to remove the SPORT switch (combination switch assembly) from the upper console panel.
      GTY495040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
