Removal [06/2015 - ]: Procedure

  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3

  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

    Refer to PROCEDURE - Step 4

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for CVT)

    Refer to PROCEDURE - Step 5

  4. REMOVE SHIFTING HOLE BEZEL (for Manual Transaxle)

    Refer to PROCEDURE - Step 6

  5. REMOVE POSITION INDICATOR HOUSING ASSEMBLY (for CVT)

    Refer to PROCEDURE - Step 7

  6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  7. REMOVE UPPER CONSOLE PANEL

    Refer to PROCEDURE - Step 9

  8. REMOVE VSC OFF SWITCH (COMBINATION SWITCH ASSEMBLY)

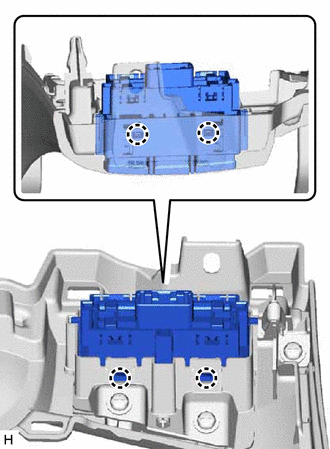

    1. Disengage the 4 claws to remove the VSC OFF switch (combination switch assembly) from the upper console panel.
      GTY490779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
