Data Link Connector: Description and Operation

GF54.22-P-2200MCC Data Link Connector Component Description

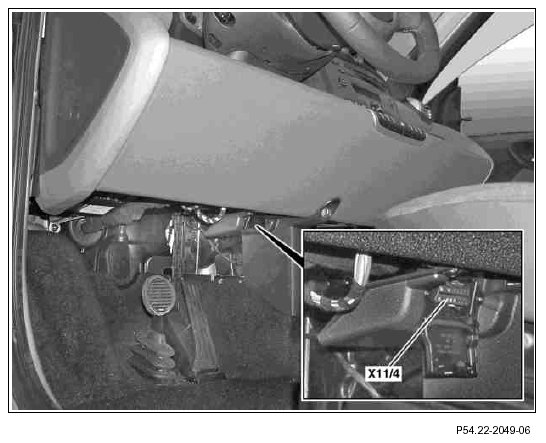

Shown on LHD model
X11/4 Data link connector

Location
The data link connector is located in the footwell on the driver-side.

Task
The data link connector is the interface for the connection of STAR DIAGNOSIS to the Controller Area Network (data bus/CAN bus) (CAN).
