Front axle transmission 4MATIC, function - GF33.10-P-3000AV

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0 with TRANSMISSION 722.960/962/963/964/965 as of Model Year 2009/AEJ 08

MODEL 204.2 with TRANSMISSION 722.962/965 as of Model Year 2009/AEJ 08

MODEL 204.9 with TRANSMISSION 722.960/962/964/965

MODEL 212 with TRANSMISSION 722.960/961/962

MODEL 216 with TRANSMISSION 722.961 as of Model Year 2009/AEJ 08

MODEL 221 with TRANSMISSION 722.960/961/962 as of Model Year 2009/AEJ 08

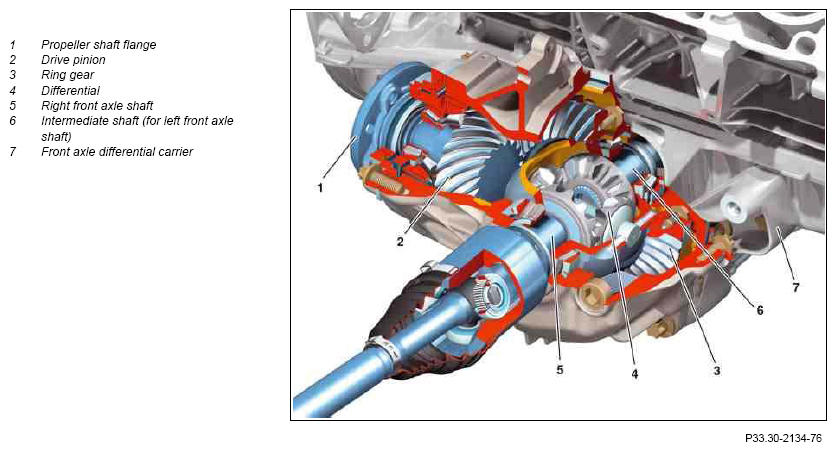

Sectional view of front axle transmission

Fig 1: Sectional View Of Front Axle Transmission

Courtesy of MERCEDES-BENZ USA

Front axle transmission 4MATIC, general information

The front axle transmission is designed as a single-speed differential with smooth-running technology (fuel economy).

The housing of the front axle transmission is made of aluminum and it is bolted with a carrier (7) to the engine oil pan.

The drive pinion (2) is positioned at an 83° angle to the ring gear (3), to compensate for the angular course of the propeller shaft to the front axle transmission.

The ring gear (3) is mounted on the engine side, and bolted to the differential cage of the differential (4).

This location of the front axle transmission components means that the change in direction, caused by the single-speed lateral output in the transfer case, is inverted again.
