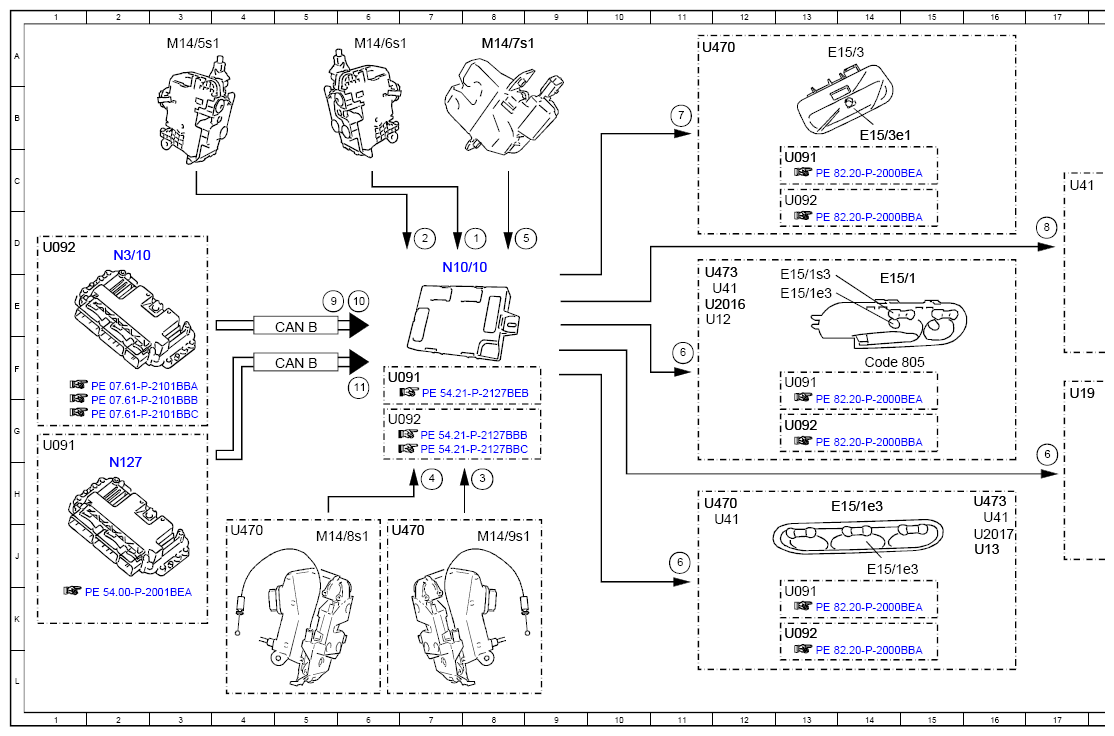

Automatic Interior Lights Control Electrical Function Schematic - PE82.20-P-2052-97BBA
MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Driver door central locking microswitch, status | 8D |
| 10 | Engine stop, status | 6E |
| 11 | Drivetrain operational, signal | 6F |
| 2 | Front passenger door central locking microswitch, status | 7D |
| 3 | Right rear central locking microswitch, status | 8H |
| 4 | Left rear central locking microswitch, status | 7H |
| 5 | Liftgate central locking system microswitch, status | 9D |
| 6 | Front dome lamp, actuation | 11J |
| 6 | Front dome lamp, actuation | 11F |
| 6 | Front dome lamp, actuation | 17G |
| 7 | Rear dome lamp, actuation | 11B |
| 8 | Load compartment illumination, actuation | 17D |
| 9 | Engine start, status | 5E |
| CAN B | Interior CAN | 5E |
| CAN B | Interior CAN | 5F |
| Code 805 | Model year 2015 | 14F |
| E15/1 | Front dome lamp with reading lamps | 14E |
| E15/1e3 | Front interior lamp | 14J |
| E15/1e3 | Front interior lamp | 14H |
| E15/1e3 | Front interior lamp | 13E |
| E15/1s3 | Front interior lamp switch | 13E |
| E15/2 | Front dome lamp | 19G |
| E15/2e1 | Front interior lamp | 20H |
| E15/3 | Rear dome lamp | 13A |
| E15/3e1 | Rear lamp | 14B |
| E18/1 | Load compartment lamp | 19C |
| M14/5s1 | Front passenger door central locking system microswitch | 3A |
| M14/6s1 | Driver door central locking system microswitch | 6A |
| M14/7s1 | Liftgate central locking system microswitch | 8A |
| M14/8s1 | Left rear central locking microswitch | 5J |
| M14/9s1 | Right rear central locking microswitch | 8J |
| N10/10 | Center SAM control unit | 7D |
| N127 | Electric drive control unit | 2H |
| N3/10 | ME-SFI [ME] control unit | 2D |
| U091 | Valid for model 453.091/391/491 | 1G |
| U091 | Valid for model 453.091/391/491 | 6F |
| U091 | Valid for model 453.091/391/491 | 13K |
| U091 | Valid for model 453.091/391/491 | 18H |
| U091 | Valid for model 453.091/391/491 | 13F |
| U091 | Valid for model 453.091/391/491 | 18E |
| U091 | Valid for model 453.091/391/491 | 13C |
| U092 | Except model 453.091/391/491 | 1D |
| U092 | Except model 453.091/391/491 | 6G |
| U092 | Except model 453.091/391/491 | 13K |
| U092 | Except model 453.091/391/491 | 18J |
| U092 | Except model 453.091/391/491 | 13G |
| U092 | Except model 453.091/391/491 | 18E |
| U092 | Except model 453.091/391/491 | 13C |
| U12 | Valid for left-hand drive vehicles | 11E |
| U13 | Valid for right-hand drive vehicles | 16J |
| U19 | Valid for standard equipment | 17F |
| U2016 | Valid up to model year 2016 | 11E |
| U2017 | Valid as of model year 2016 | 16J |
| U41 | Valid for special equipment (Highline; Passion, Prime, Proxy, Brabus Edition #1) | 12H |
| U41 | Valid for special equipment (Highline; Passion, Prime, Proxy, Brabus Edition #1) | 11E |
| U41 | Valid for special equipment (Highline; Passion, Prime, Proxy, Brabus Edition #1) | 17C |
| U41 | Valid for special equipment (Highline; Passion, Prime, Proxy, Brabus Edition #1) | 16H |
| U470 | Valid for model 453.0 | 4J |
| U470 | Valid for model 453.0 | 6J |
| U470 | Valid for model 453.0 | 11H |
| U470 | Valid for model 453.0 | 11A |
| U473 | Only valid for 453.3/4 | 11E |
| U473 | Only valid for 453.3/4 | 16H |
