Chart C-8 - Acceleration Correction Check
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Chart C-8 - Acceleration Correction Check

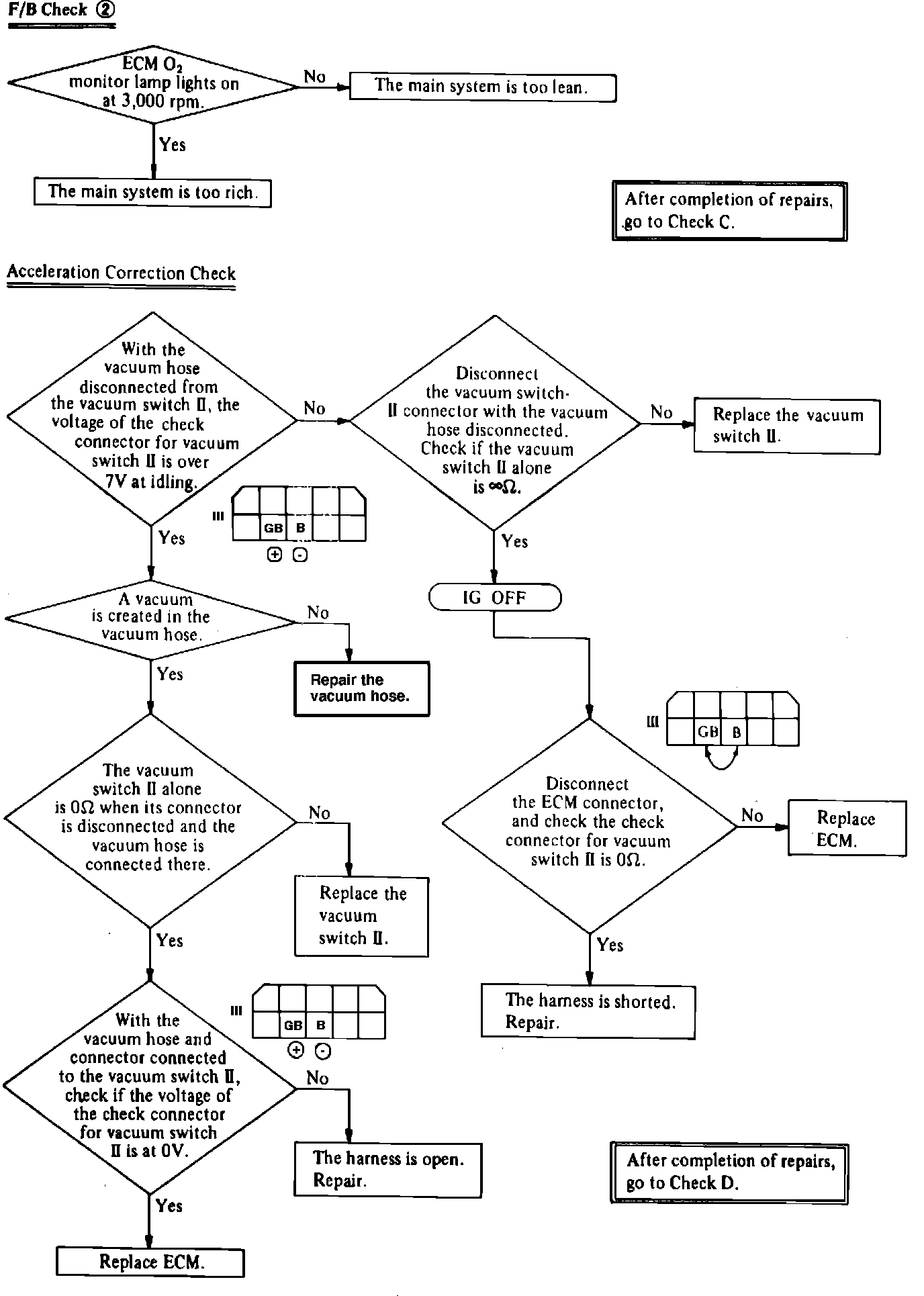

Fig.10 Electronically controlled carburetor troubleshoooting. Chart C-8:
