A/T Technical Data

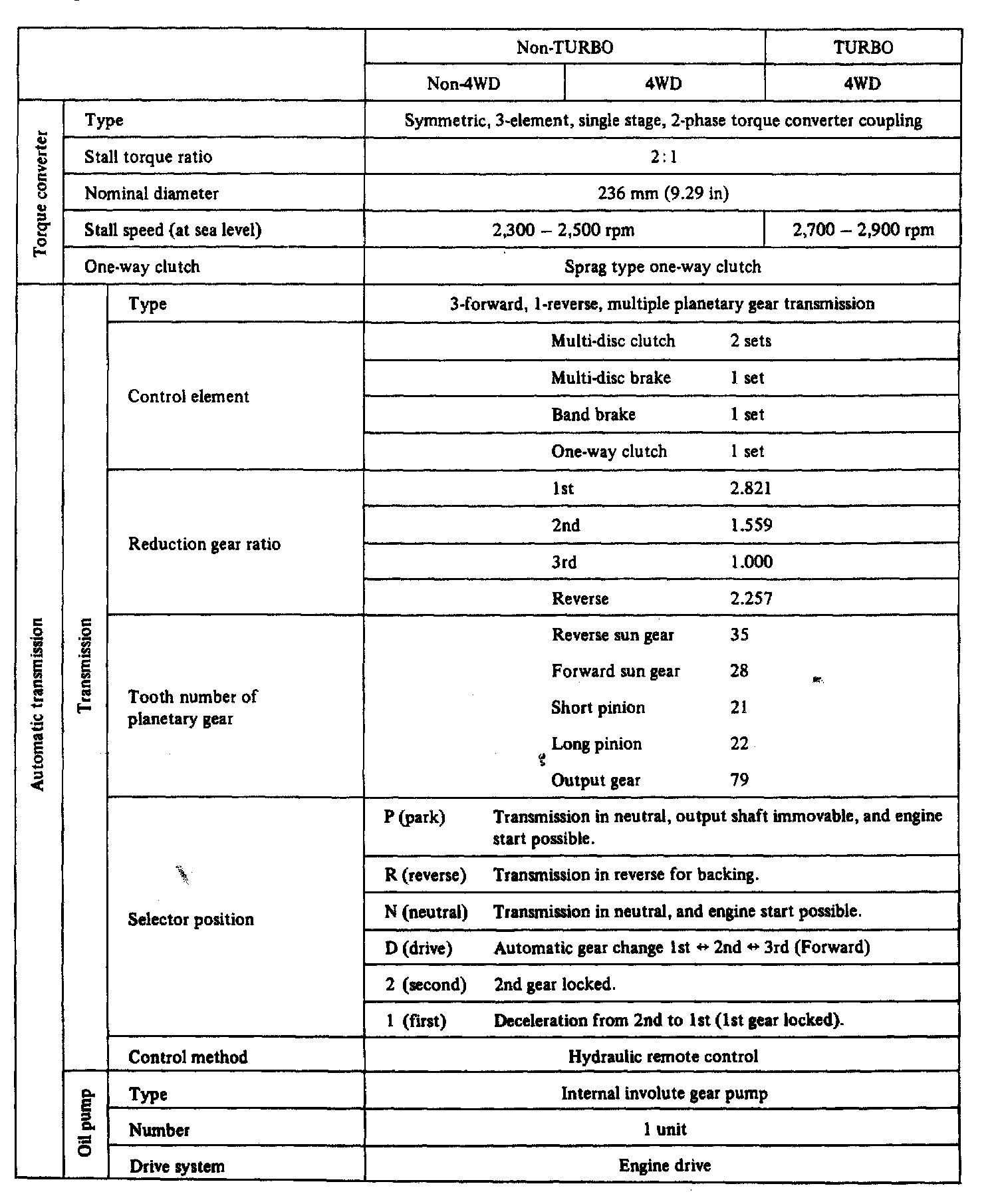

3-spd A/T, Transmission Service Data:

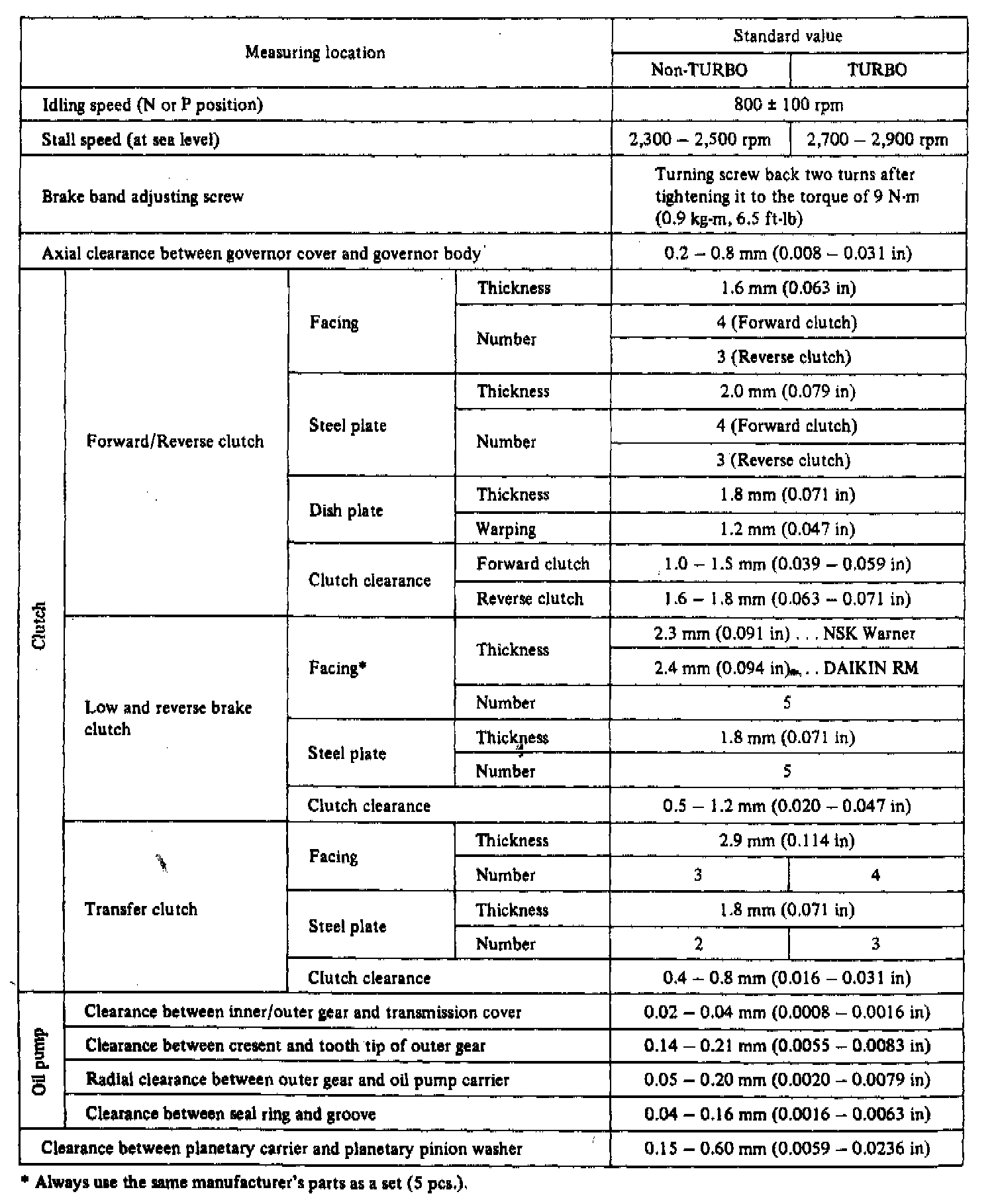

3-spd A/T, Transmission Service Data:

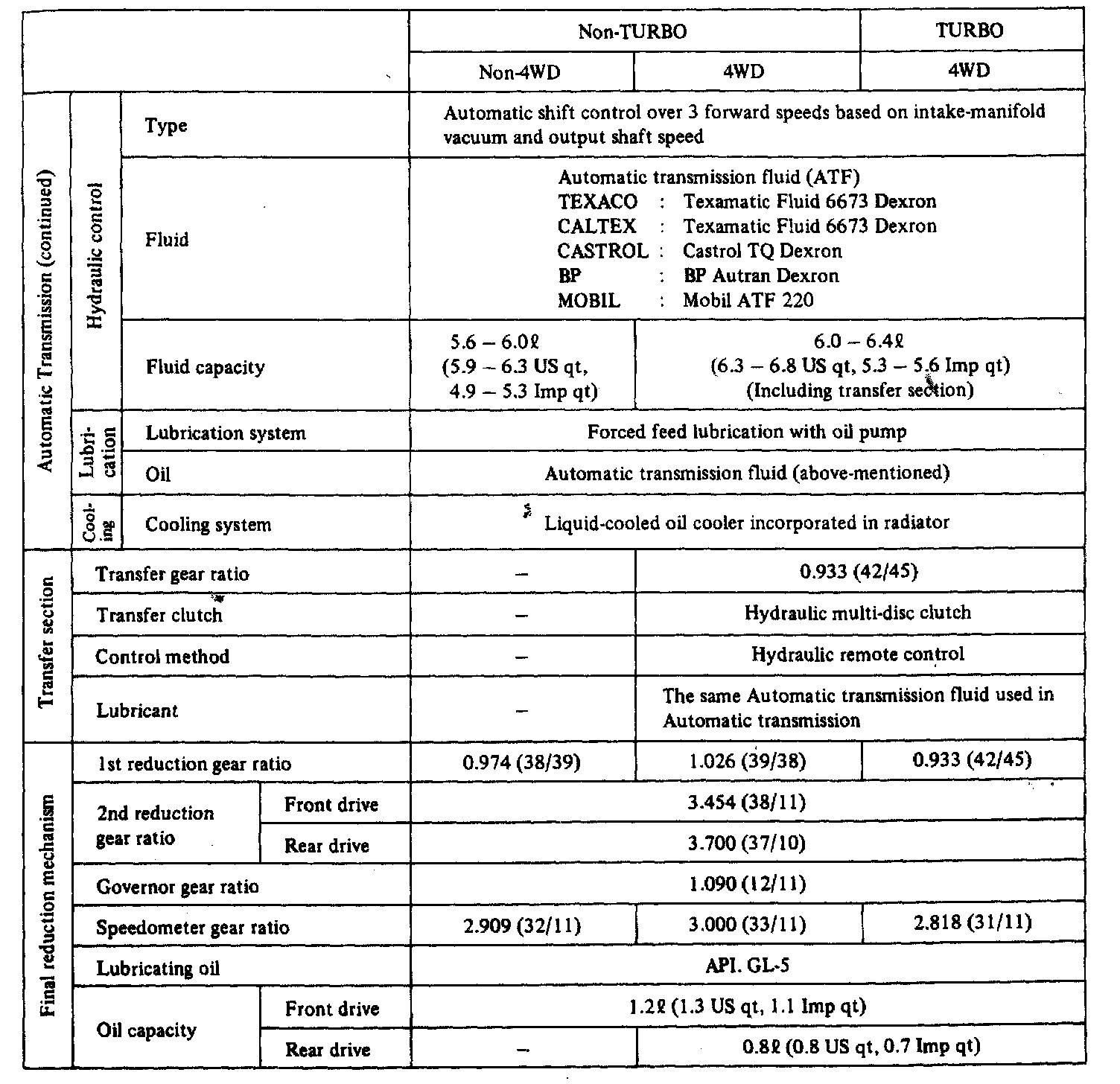

3-spd A/T, Transmission Service Data:

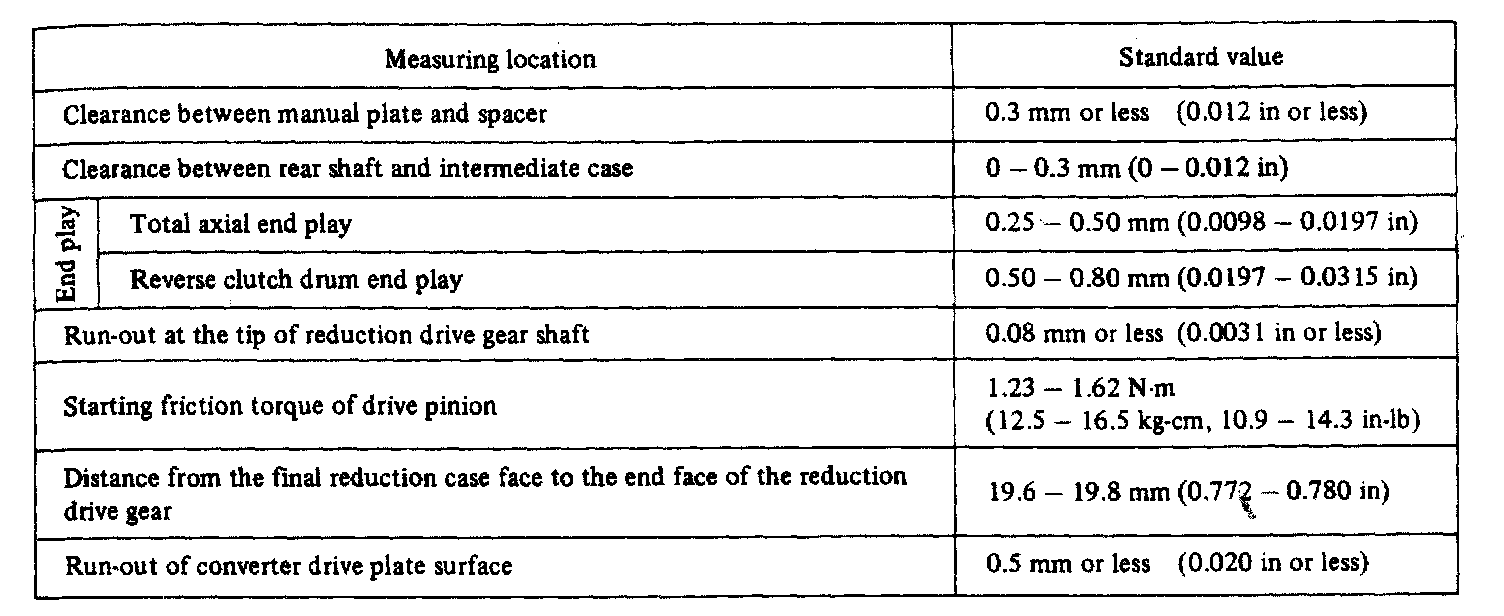

3-spd A/T, Transmission Standard Values:
