Manifold Pressure/Vacuum Sensor: Testing and Inspection

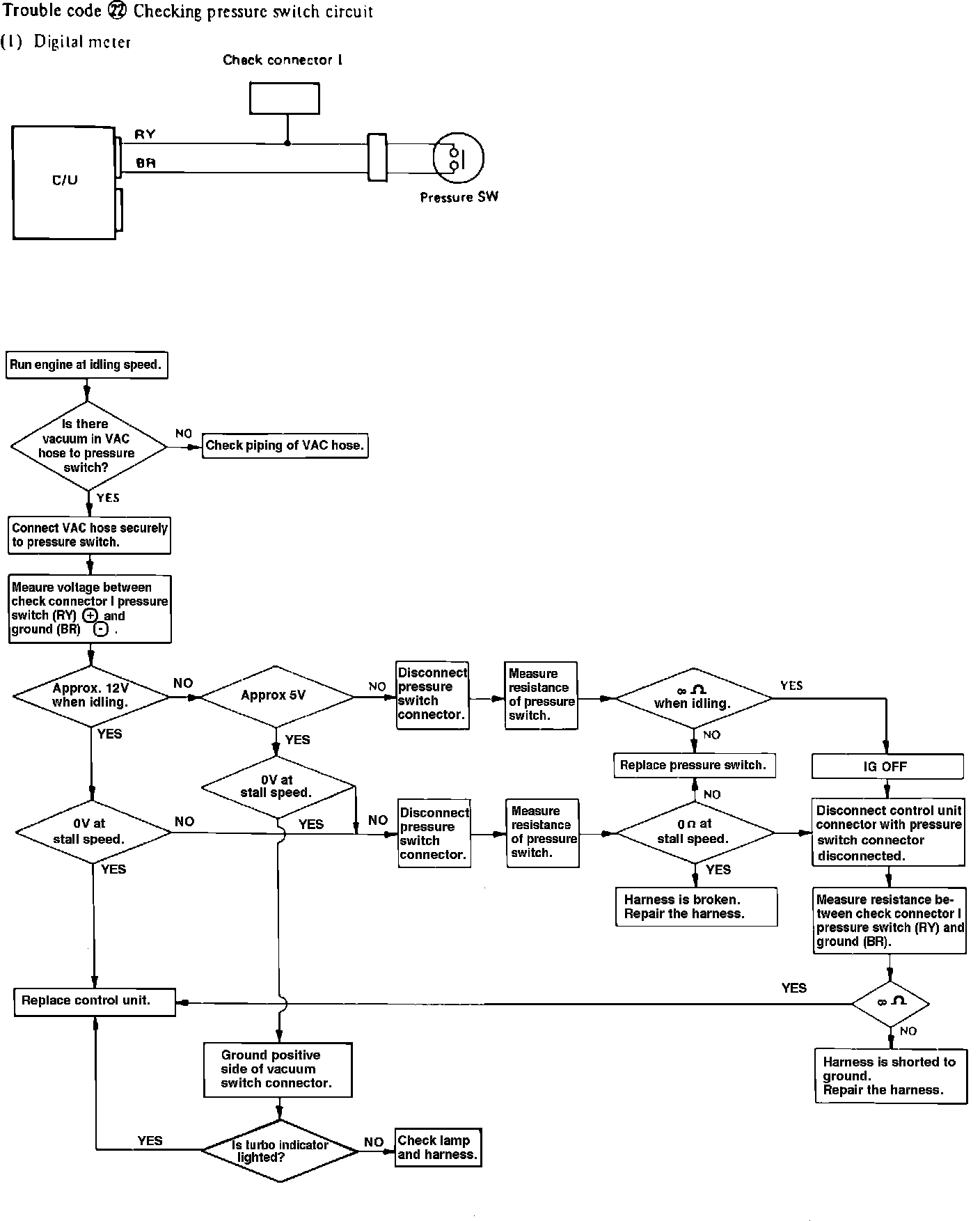

Fig.10a EGI system troubleshooting chart. Trouble code 22. Checking pressure switch circuit. Digital type meter.:

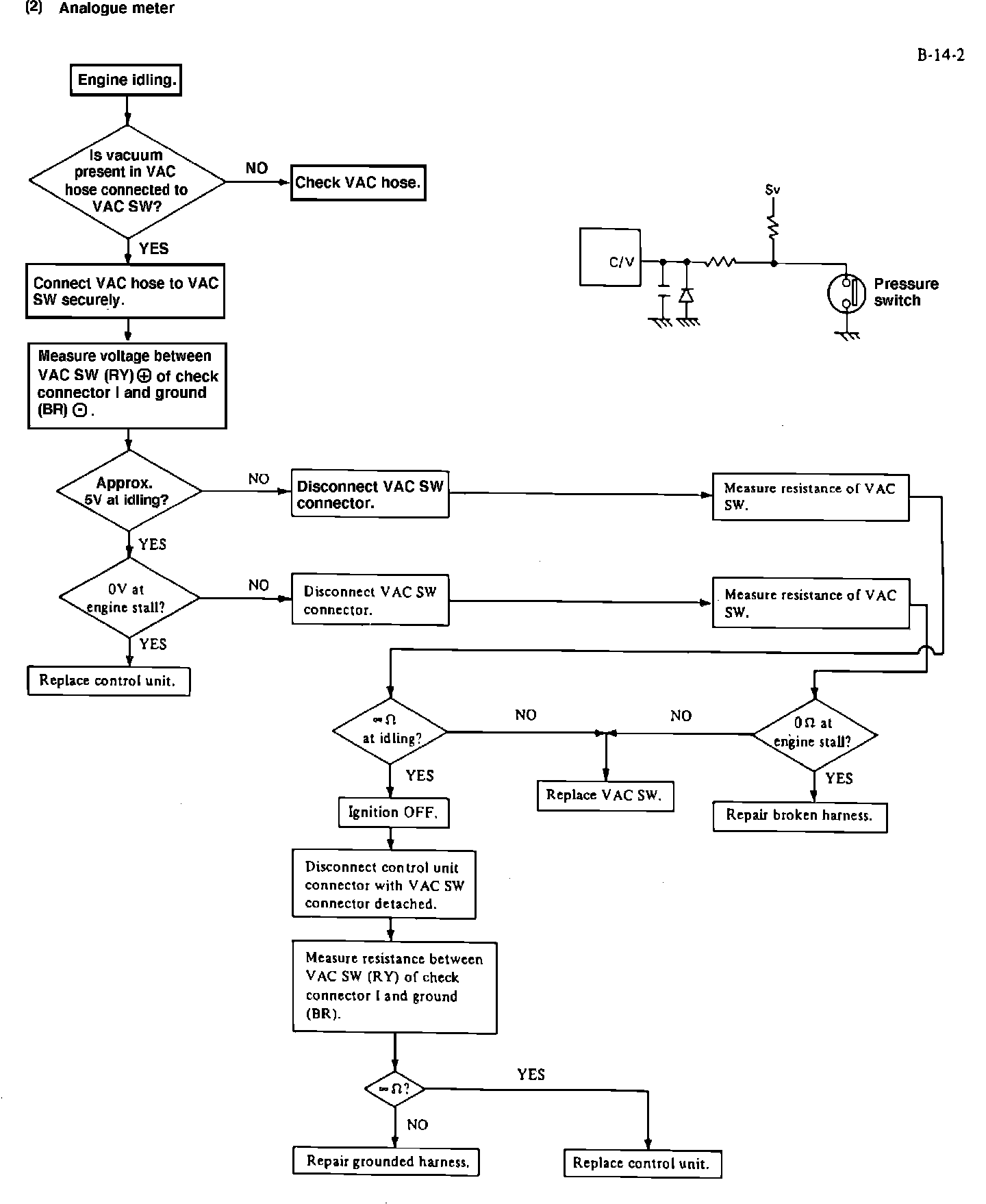

Fig.10b EGI system troubleshooting chart. Trouble code 22. Checking pressure switch circuit. Analog type meter.:
