Home >> Subaru >> 1985 >> Hatchback 2WD F4-1595cc 1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Torque Specifications

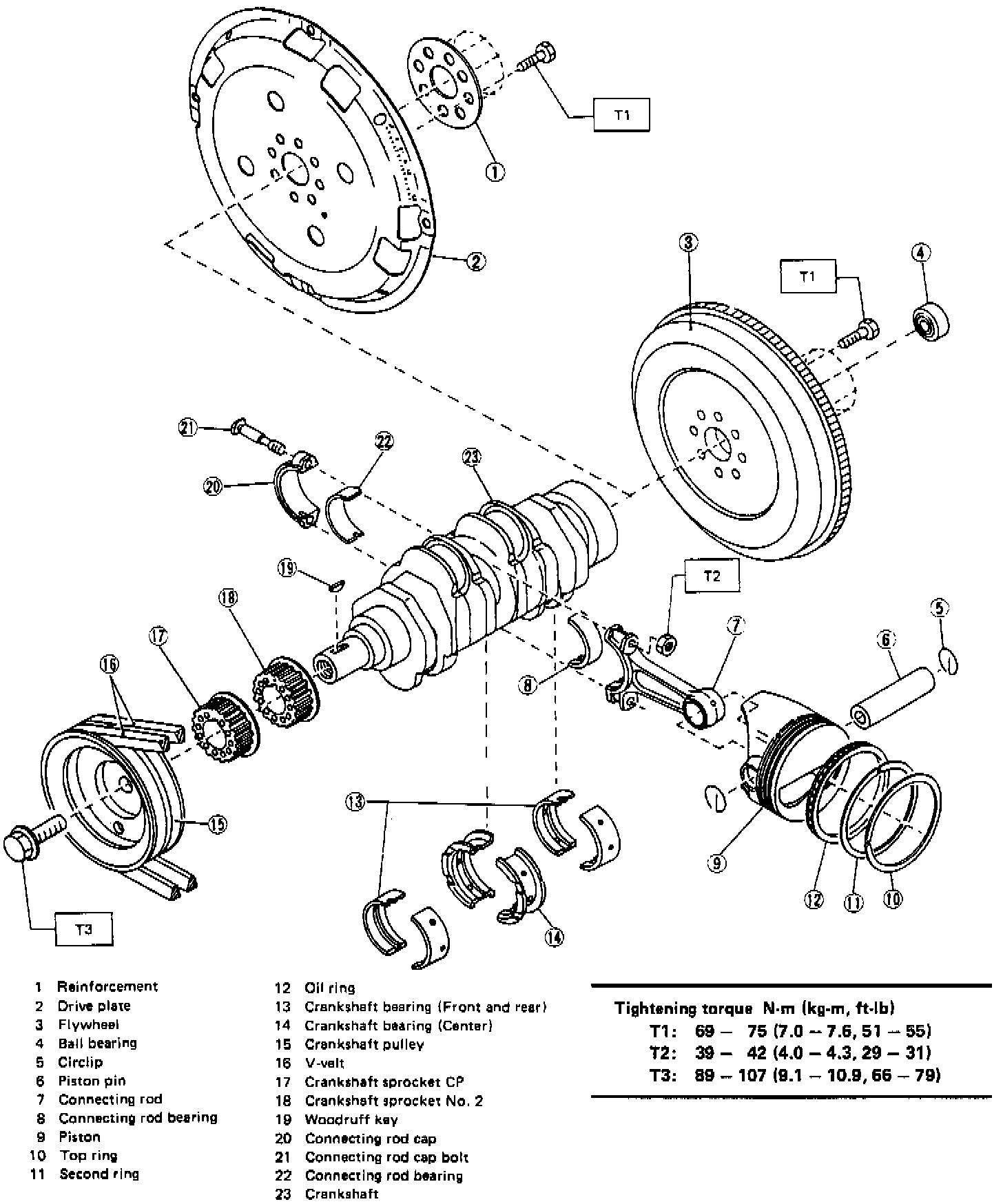

Crankshaft And Piston:

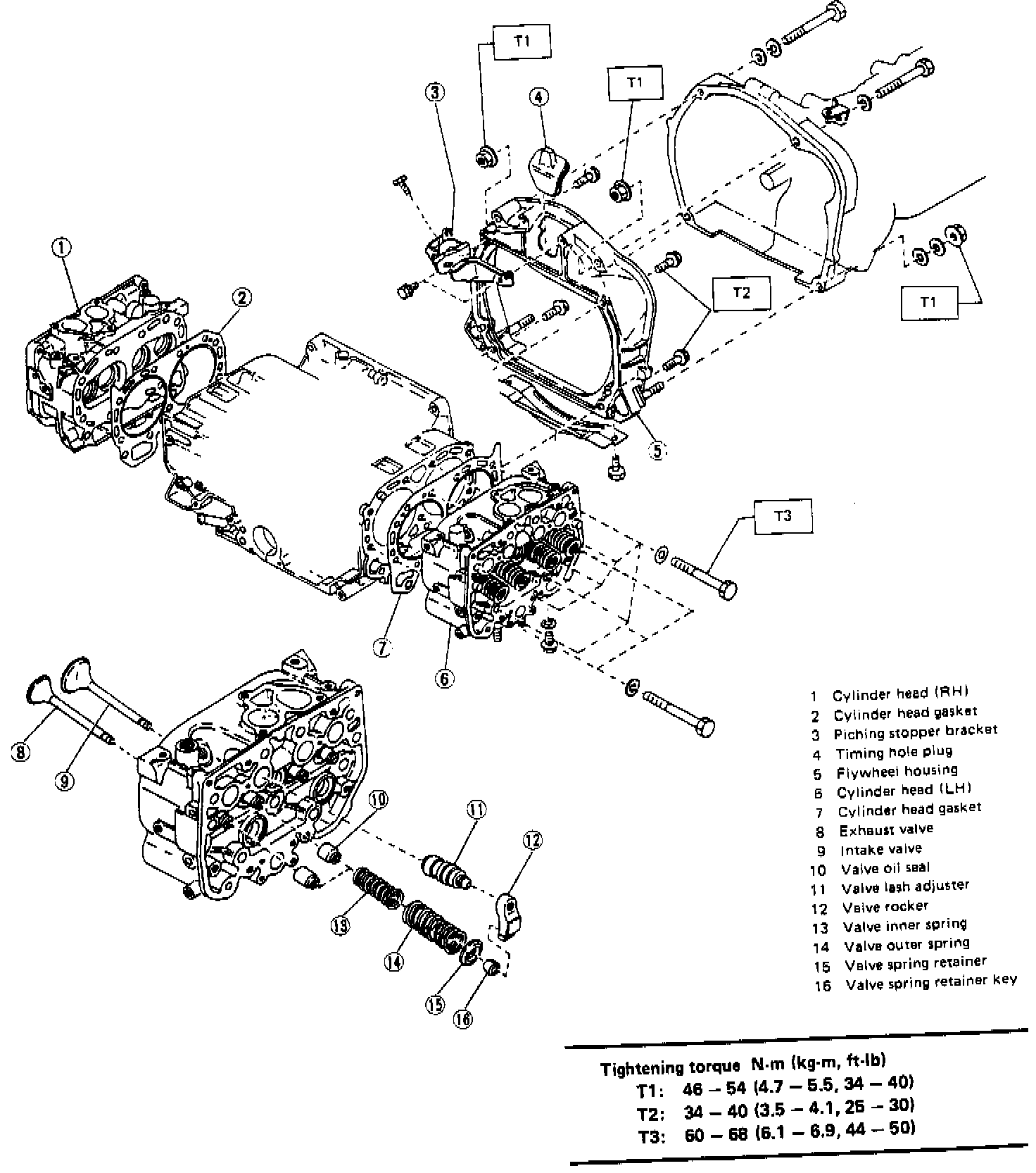

Cylinder Head And Flywheel Housing:






See TSB 02-85-91

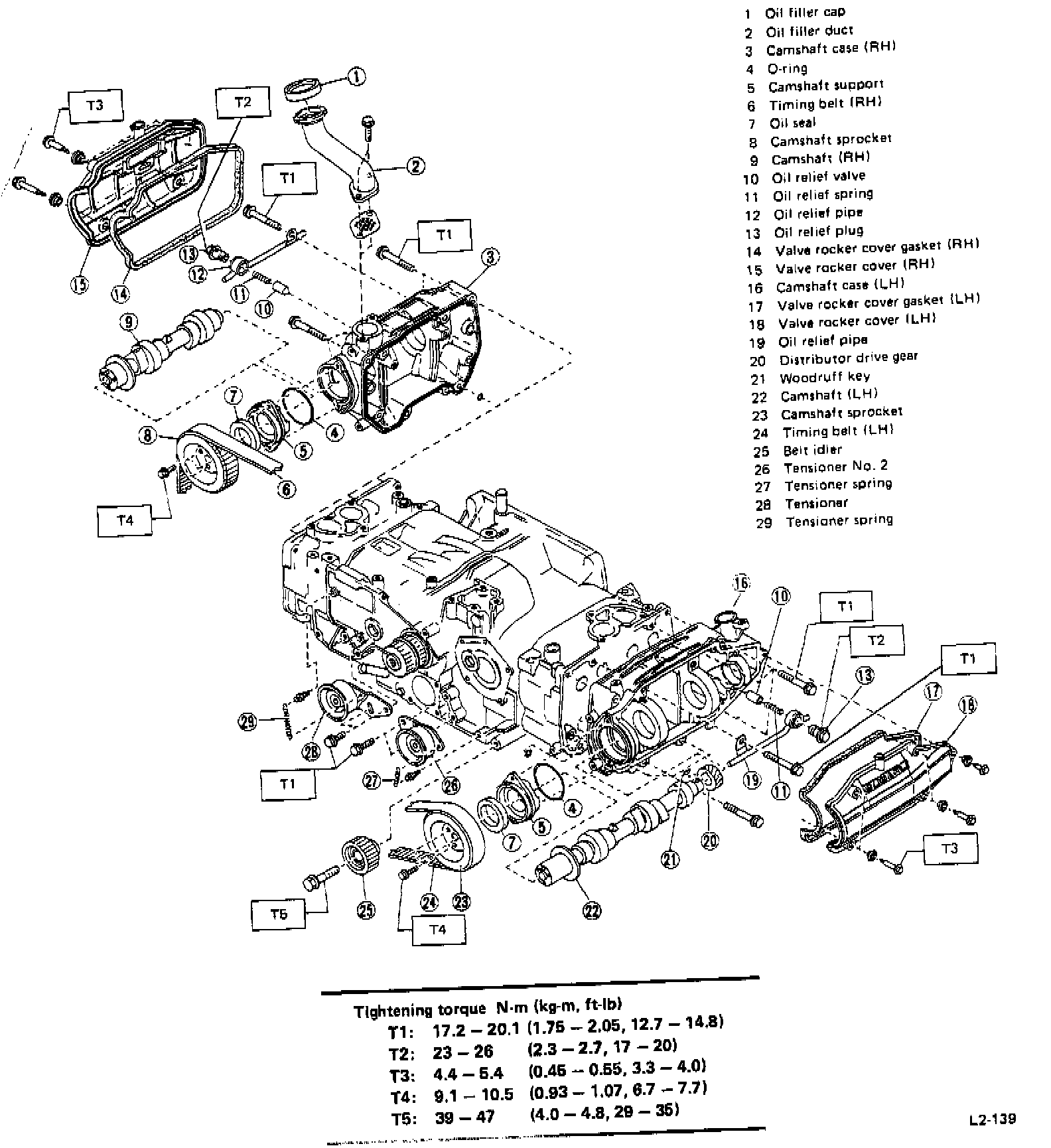

Camshaft And Timing Belt:
