Trip Computer

Fig. 102 Trip Computer Wiring Circuit. Models Exc. XT:

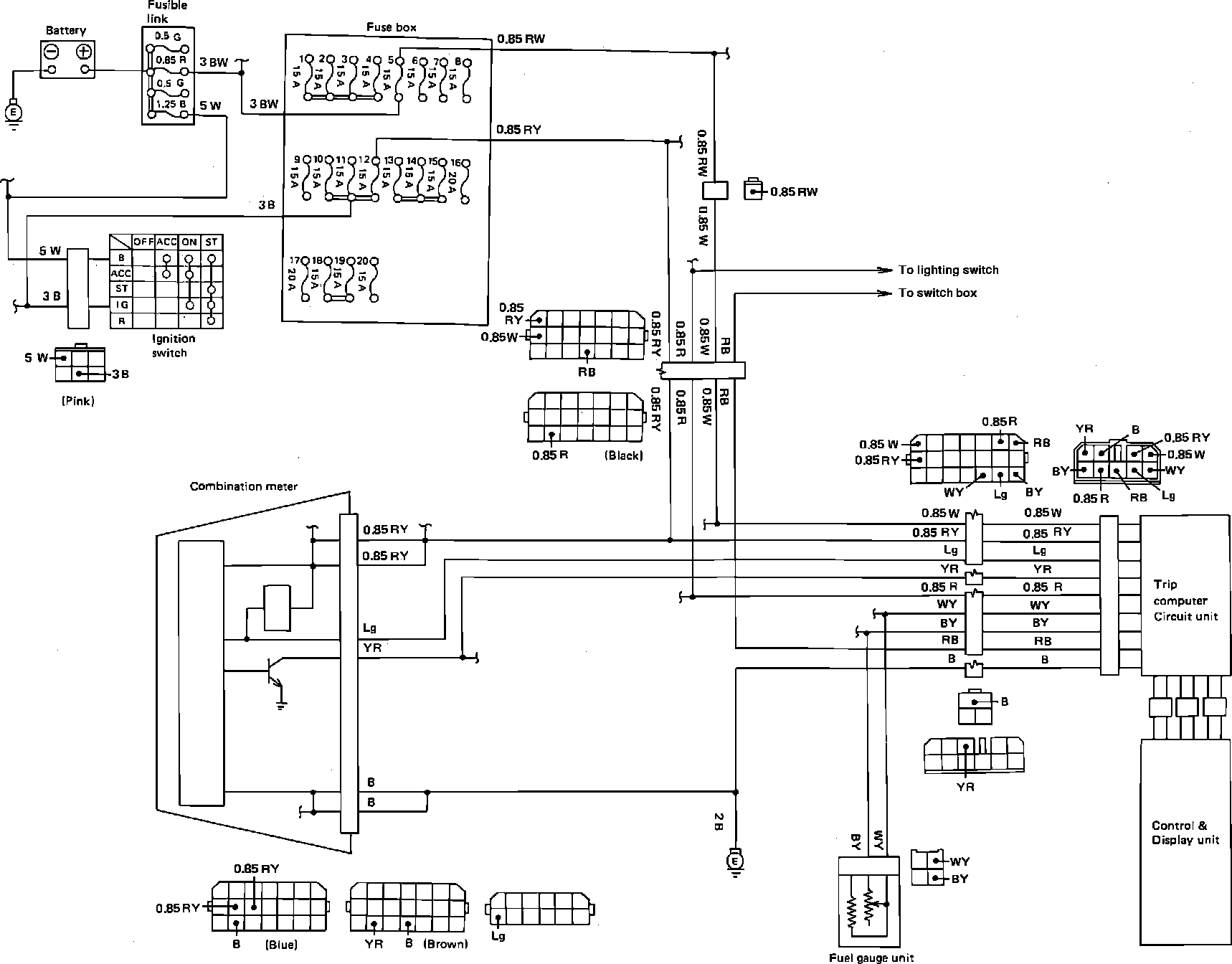

Fig. 133 Trip Computer Wiring Circuit. XT Models:
