EGR Control Solenoid: Testing and Inspection

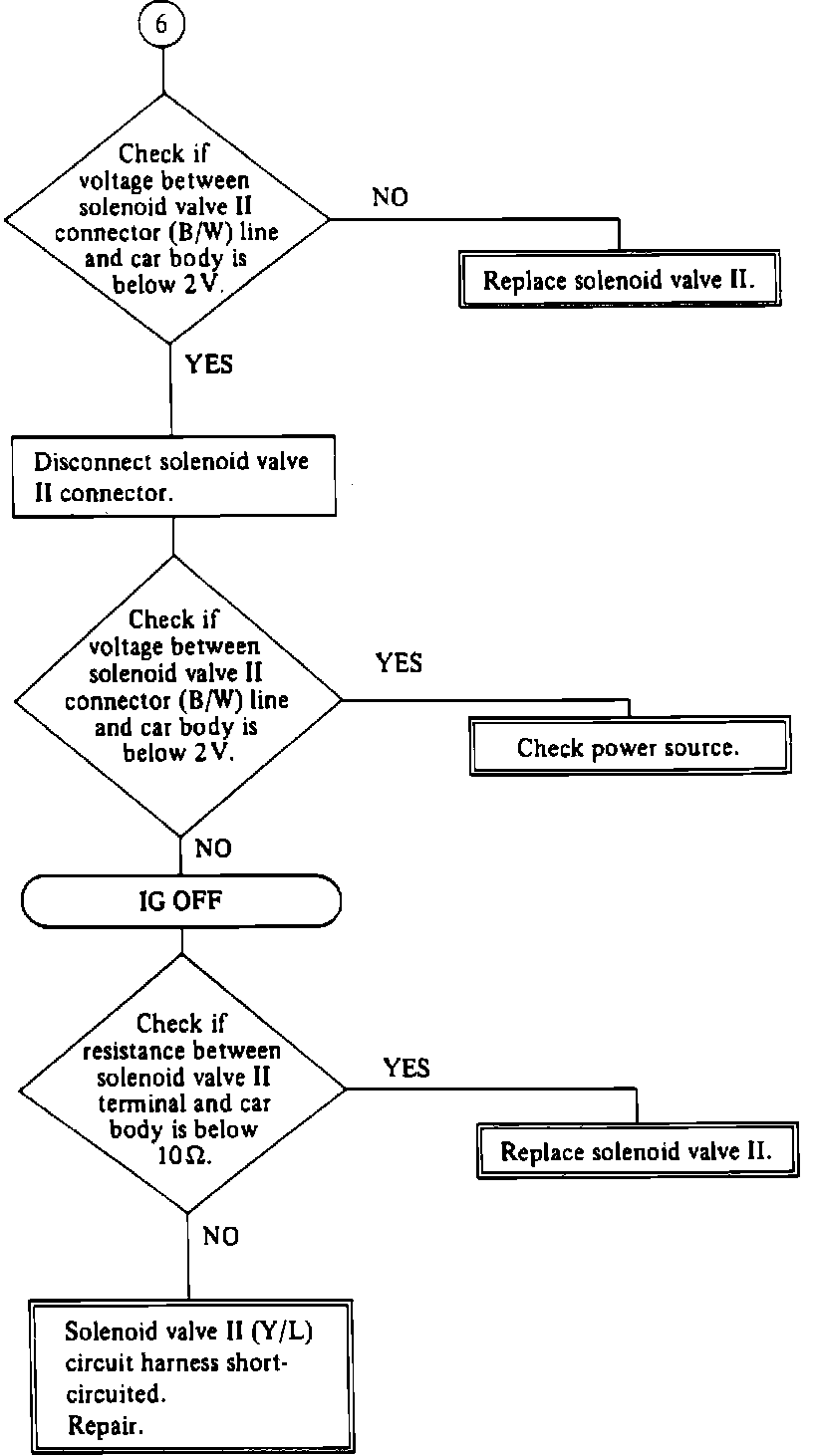

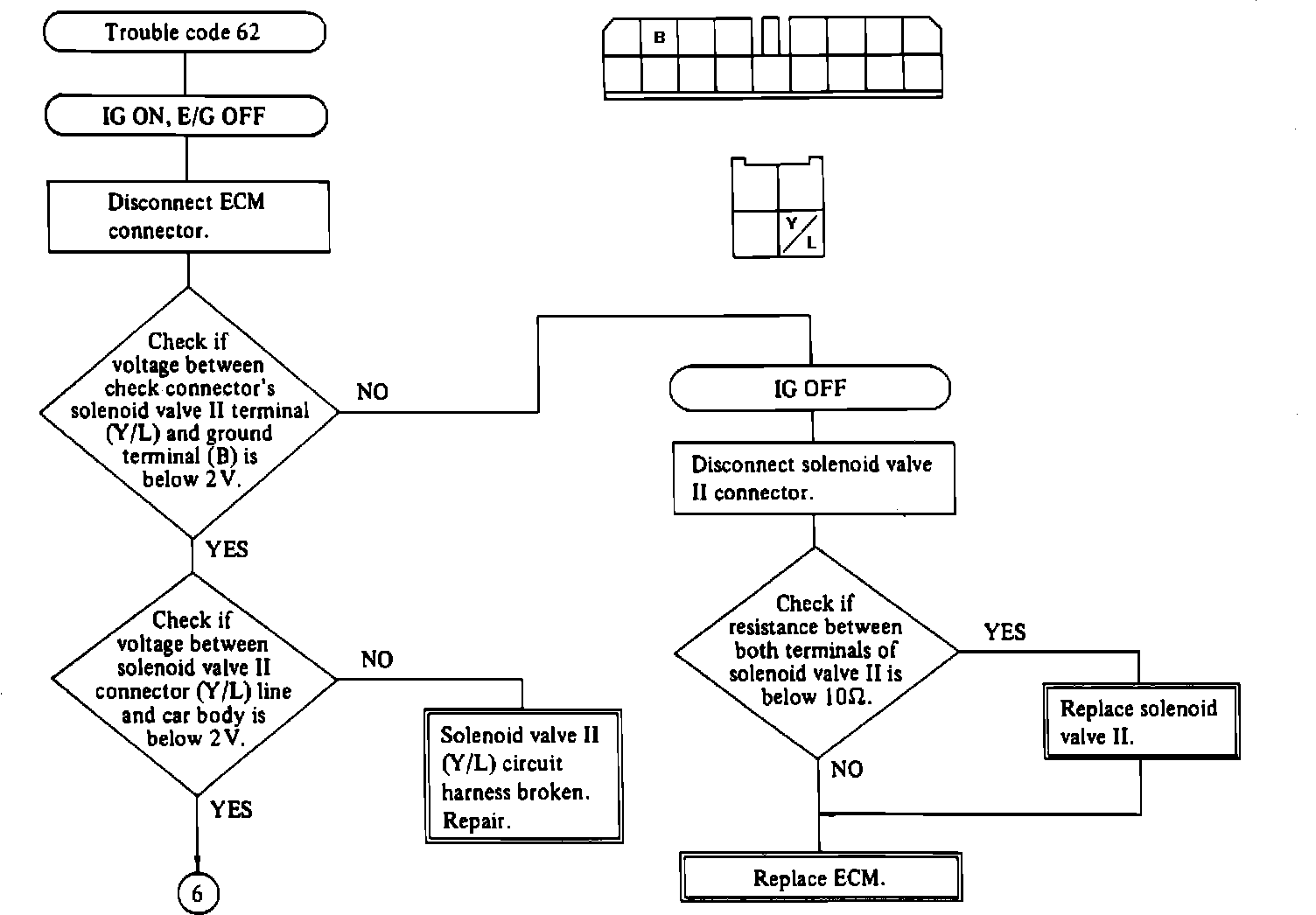

Code 62 - Solenoid Valve ll Stays On:



Code 62 - Solenoid Valve ll Stays On:



Code 63 - Solenoid Valve ll Stays Off:
