Subaru
>>
1987
>>
Hatchback 2WD F4-1781cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine Lubrication
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

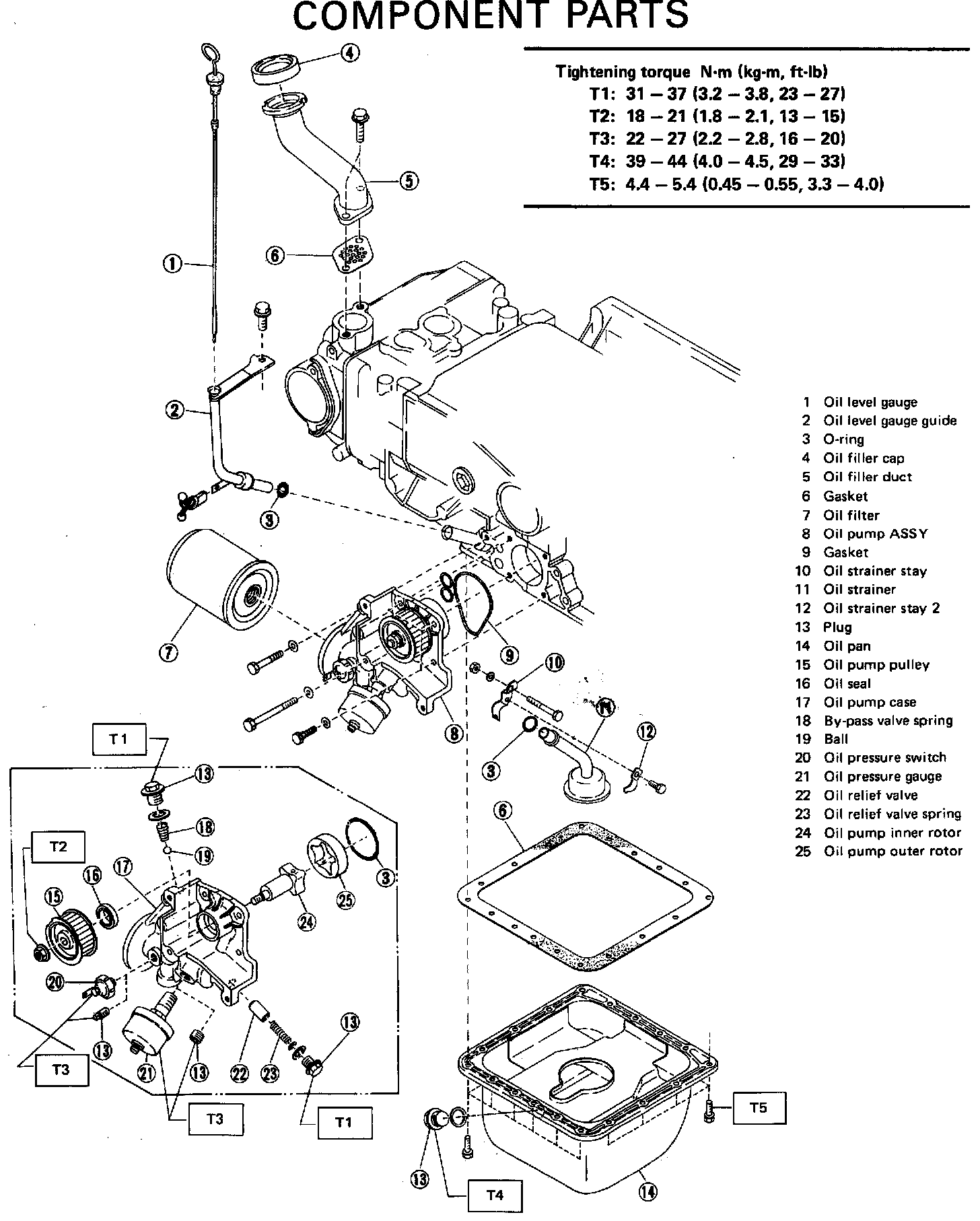

System Diagram
Engine Lubrication
System
