Manifold Pressure/Vacuum Sensor: Testing and Inspection

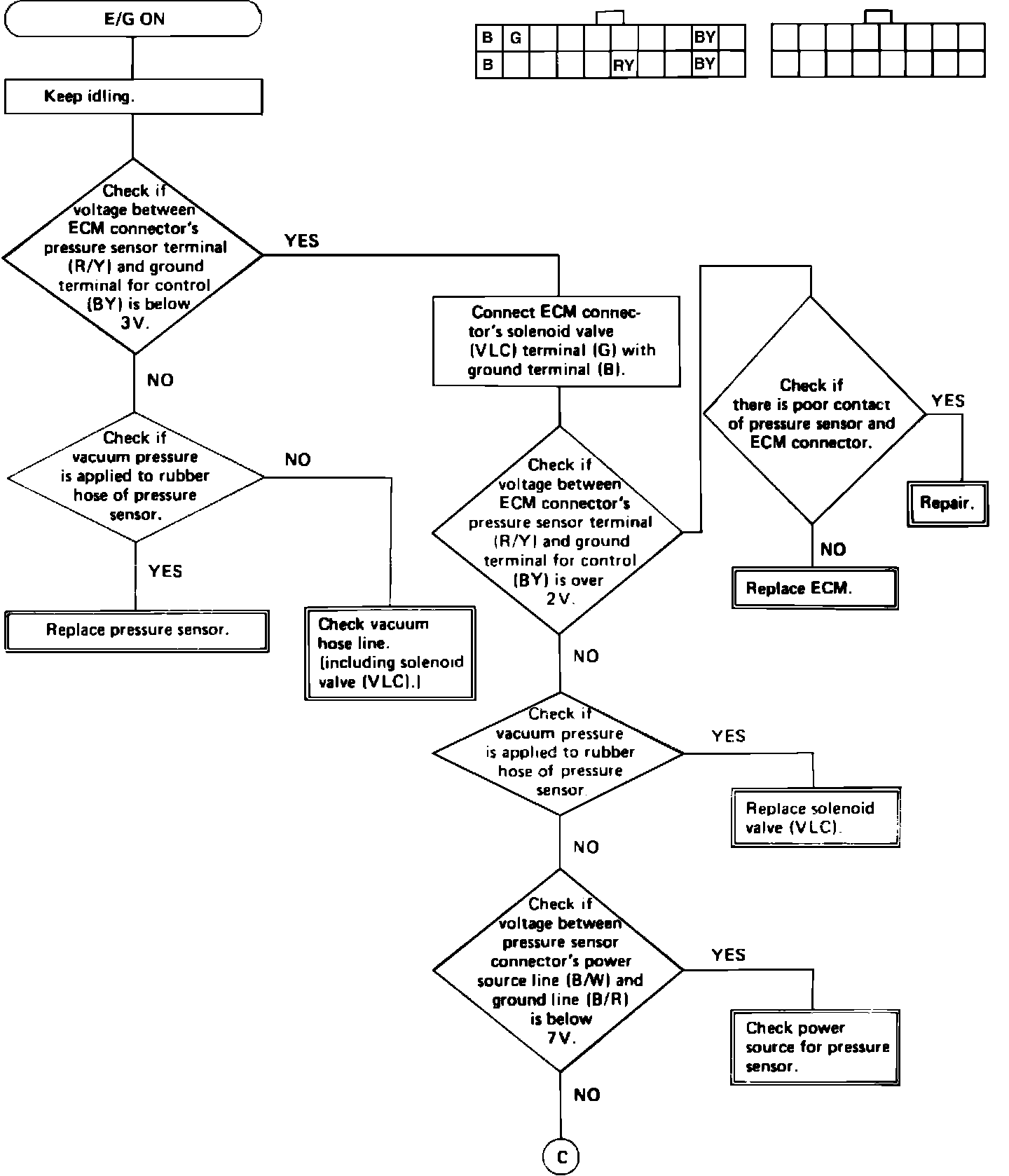

Fig. 30a Electronically controlled carburetor diagnostic chart . Trouble code 23.:



Fig. 30b Electronically controlled carburetor diagnostic chart . Trouble code 23.:
