Transfer Case Torque Data

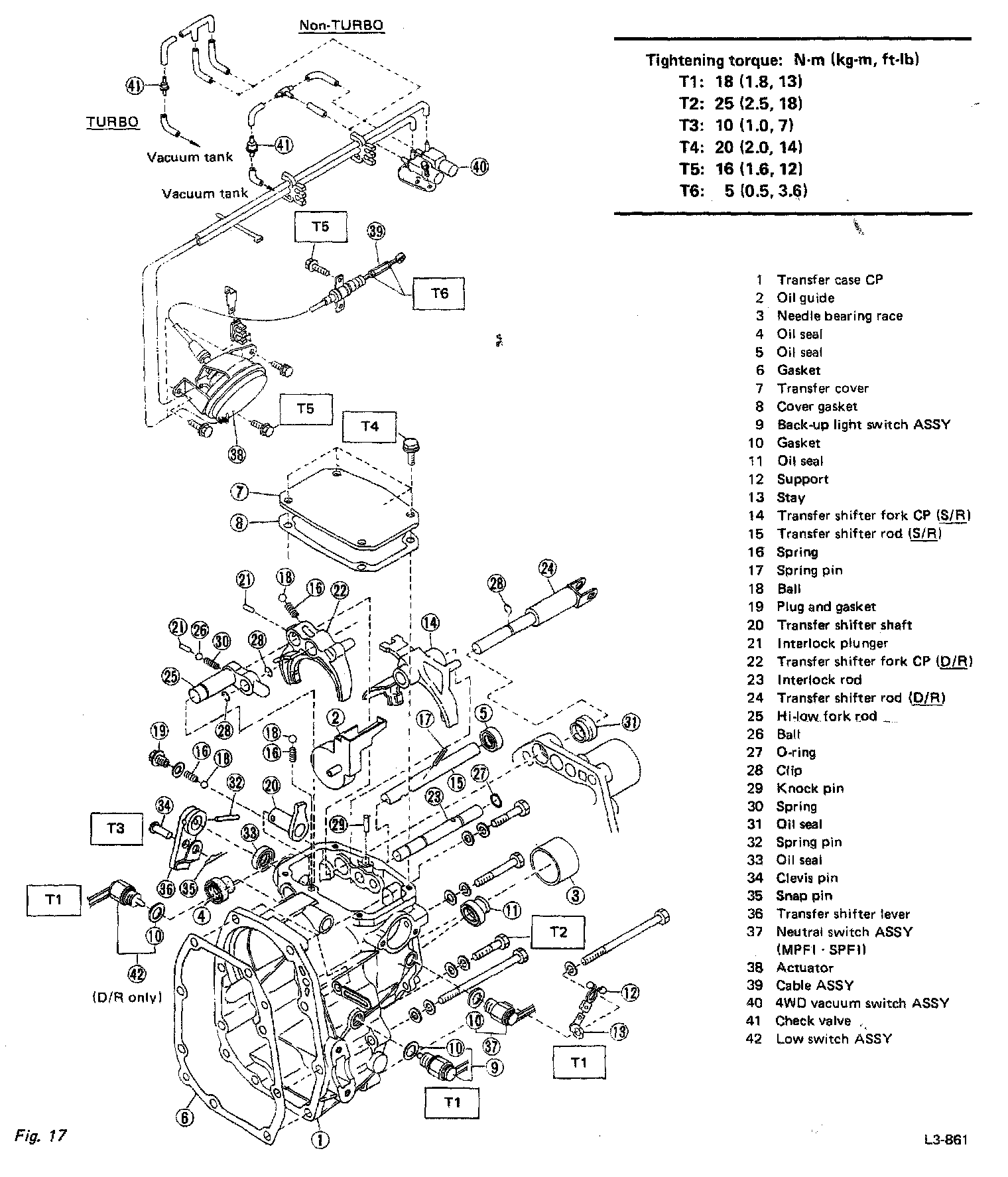

5-spd M/T, Transfer Case & Transfer Control System (Full-Time 4WD):

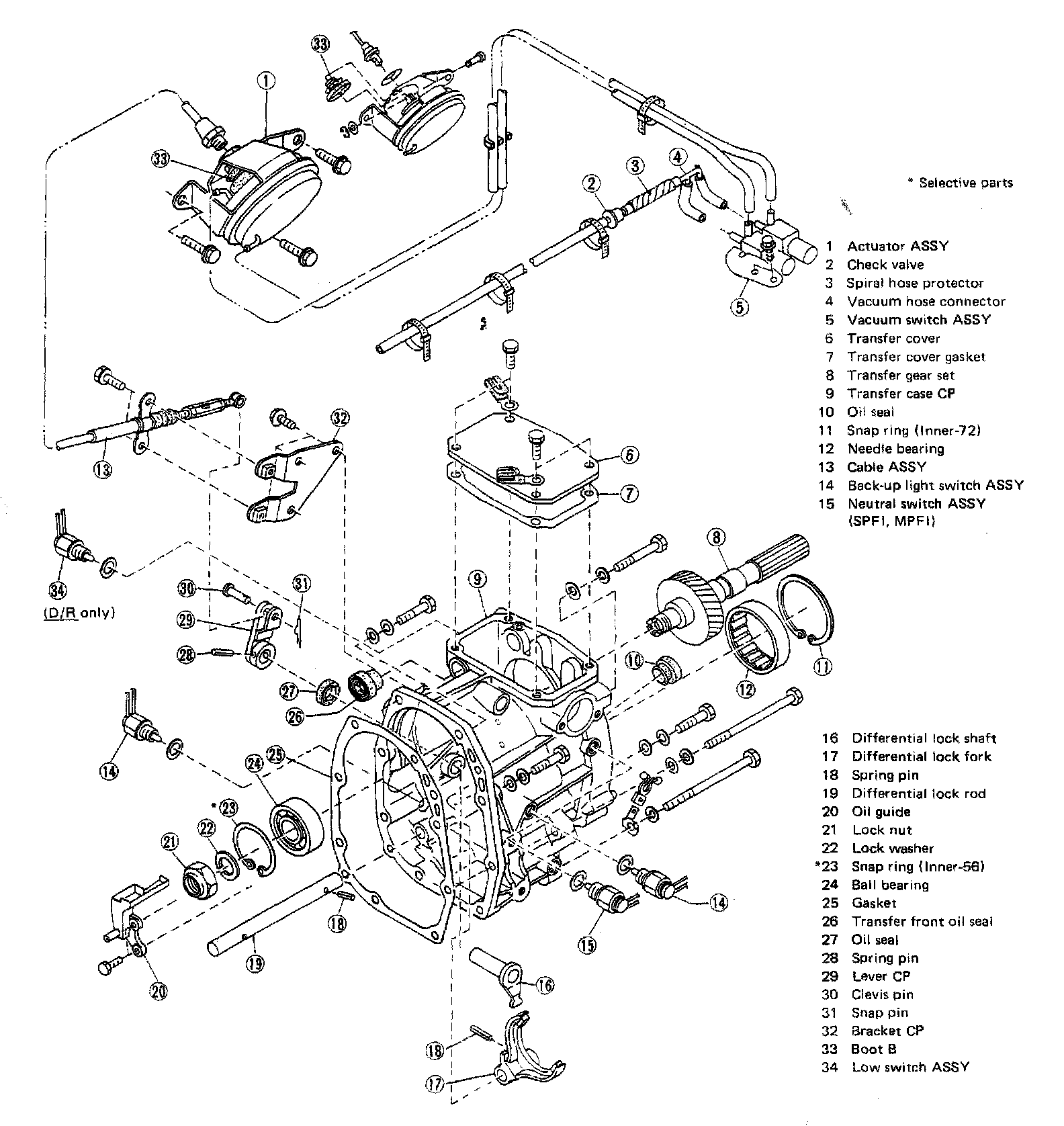

5-spd M/T, Transfer Case & Transfer Control System (Selective 4WD):
