Fuel Pump Circuit

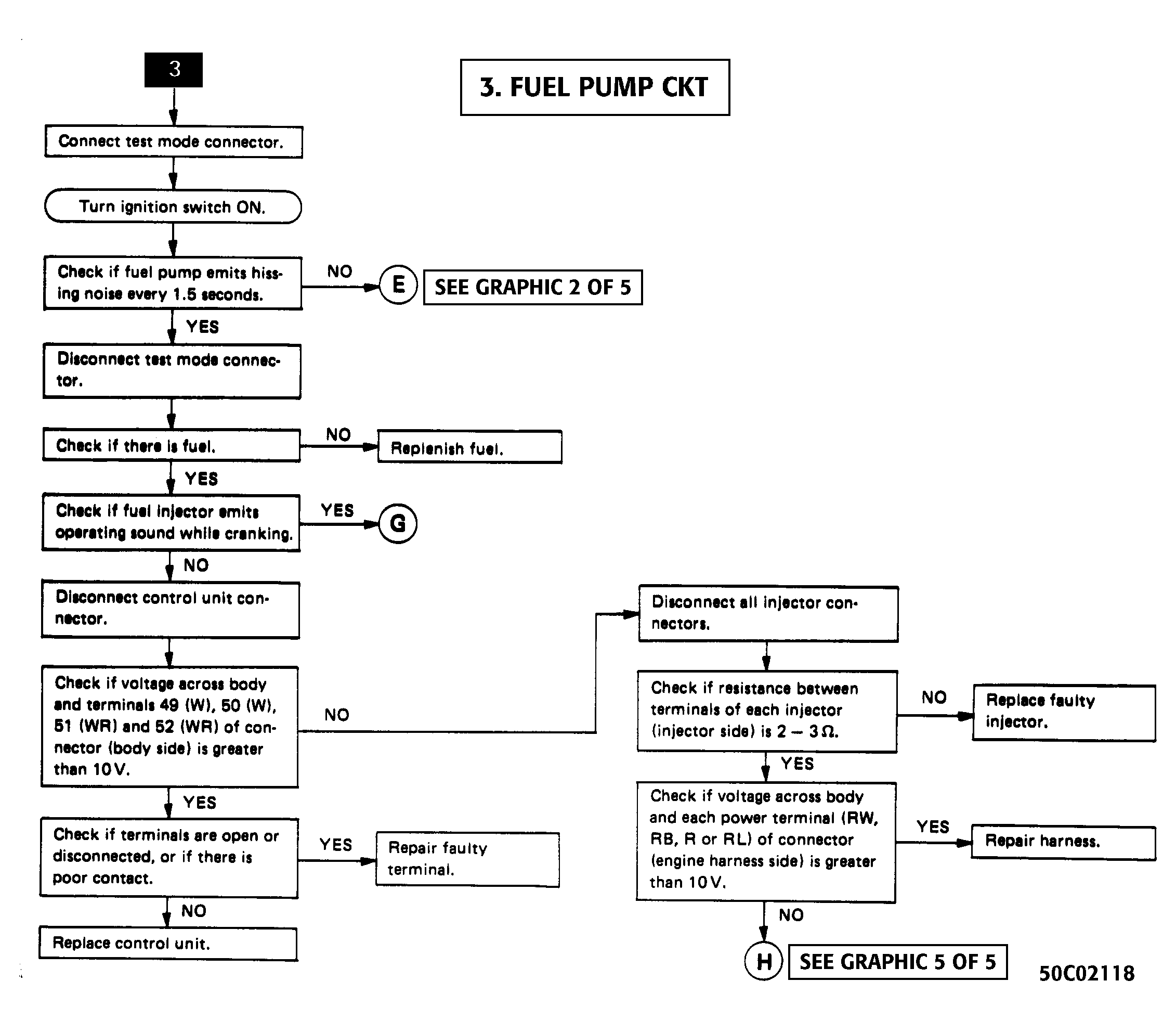

Fig 1: Fuel Pump Circuit Part 1 of 5

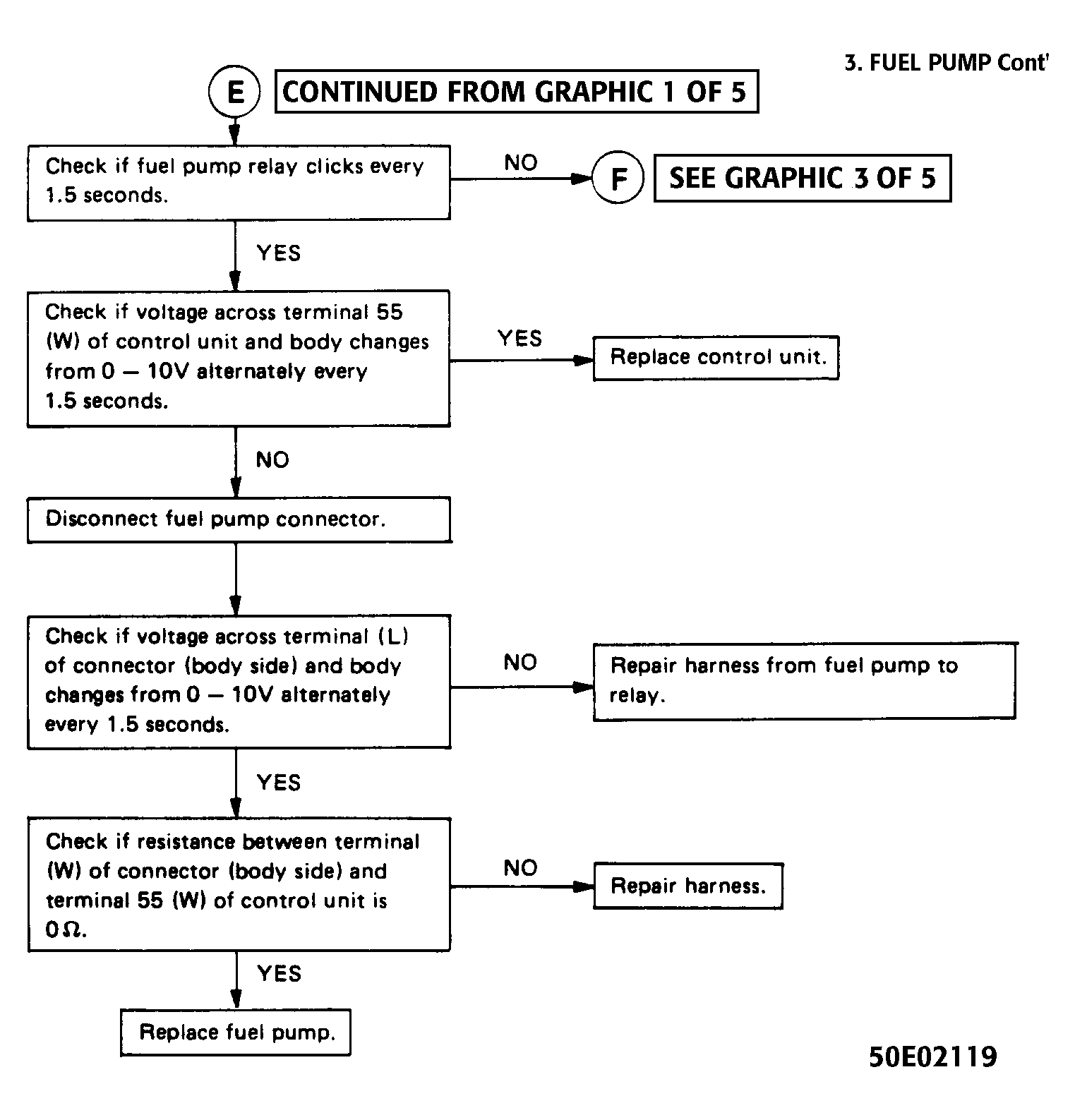

Fig 2: Fuel Pump Circuit Part 2 of 5

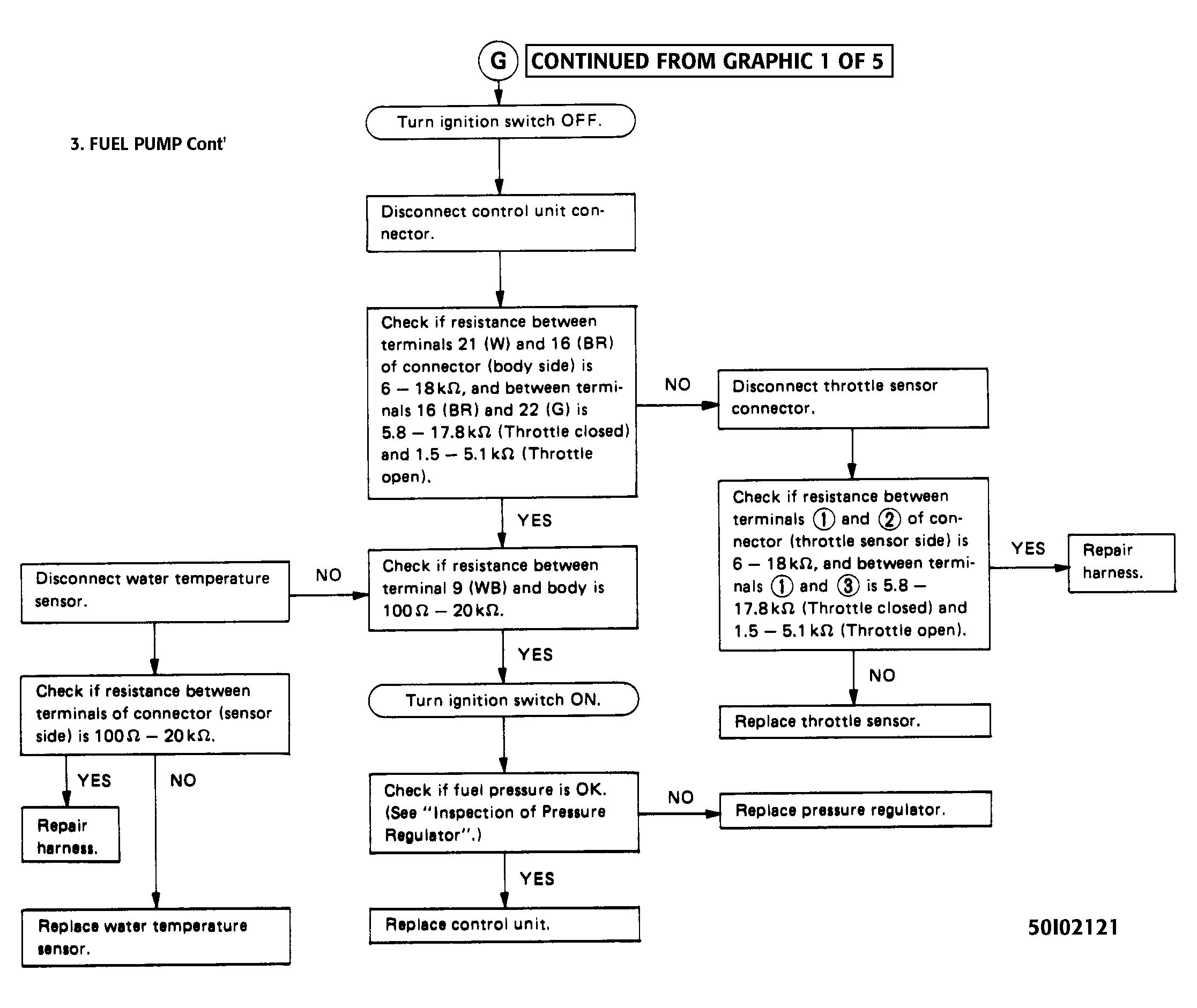

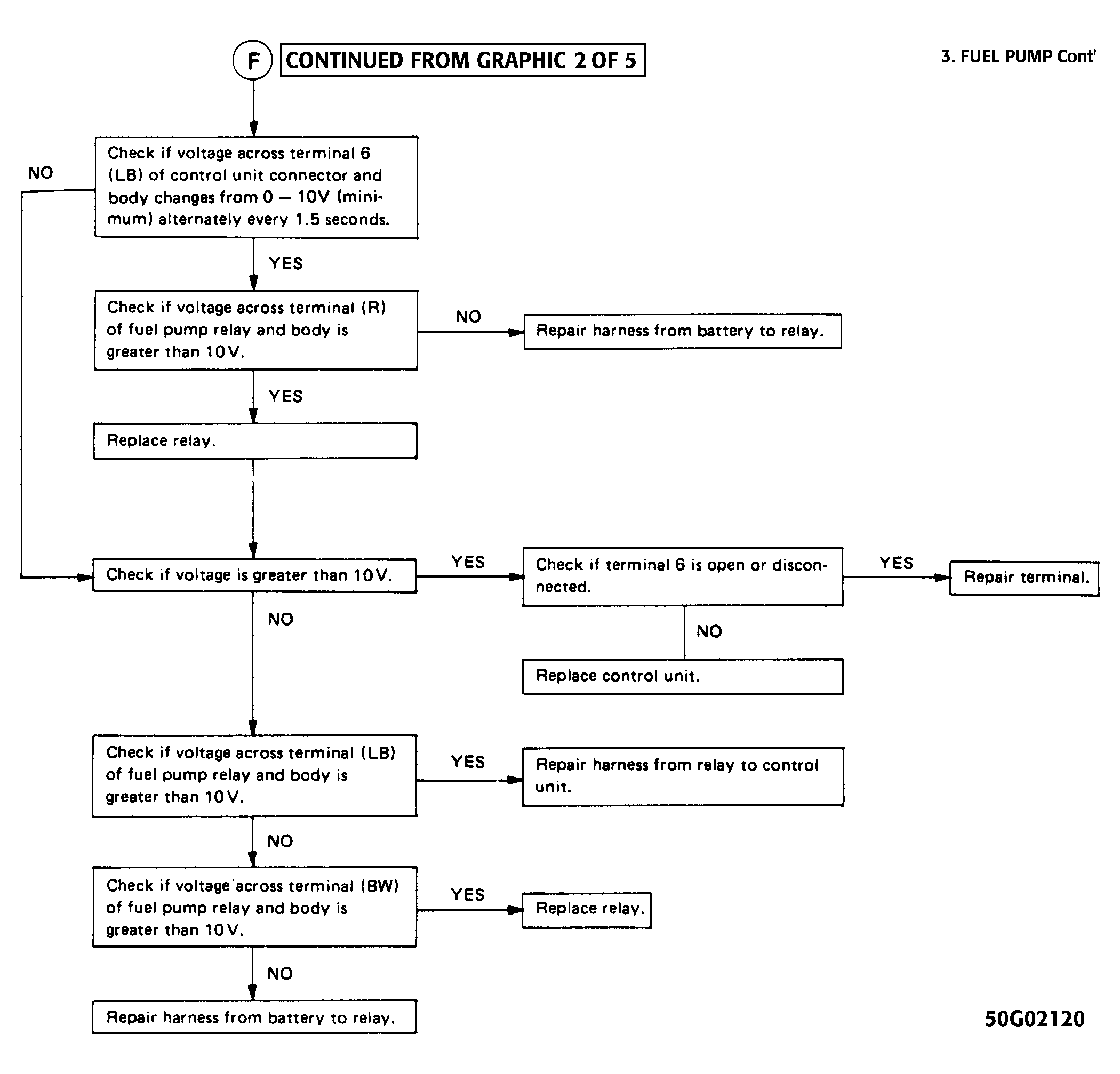

Fig 3: Fuel Pump Circuit Part 3 of 5

Fig 4: Fuel Pump Circuit Part 4 of 5

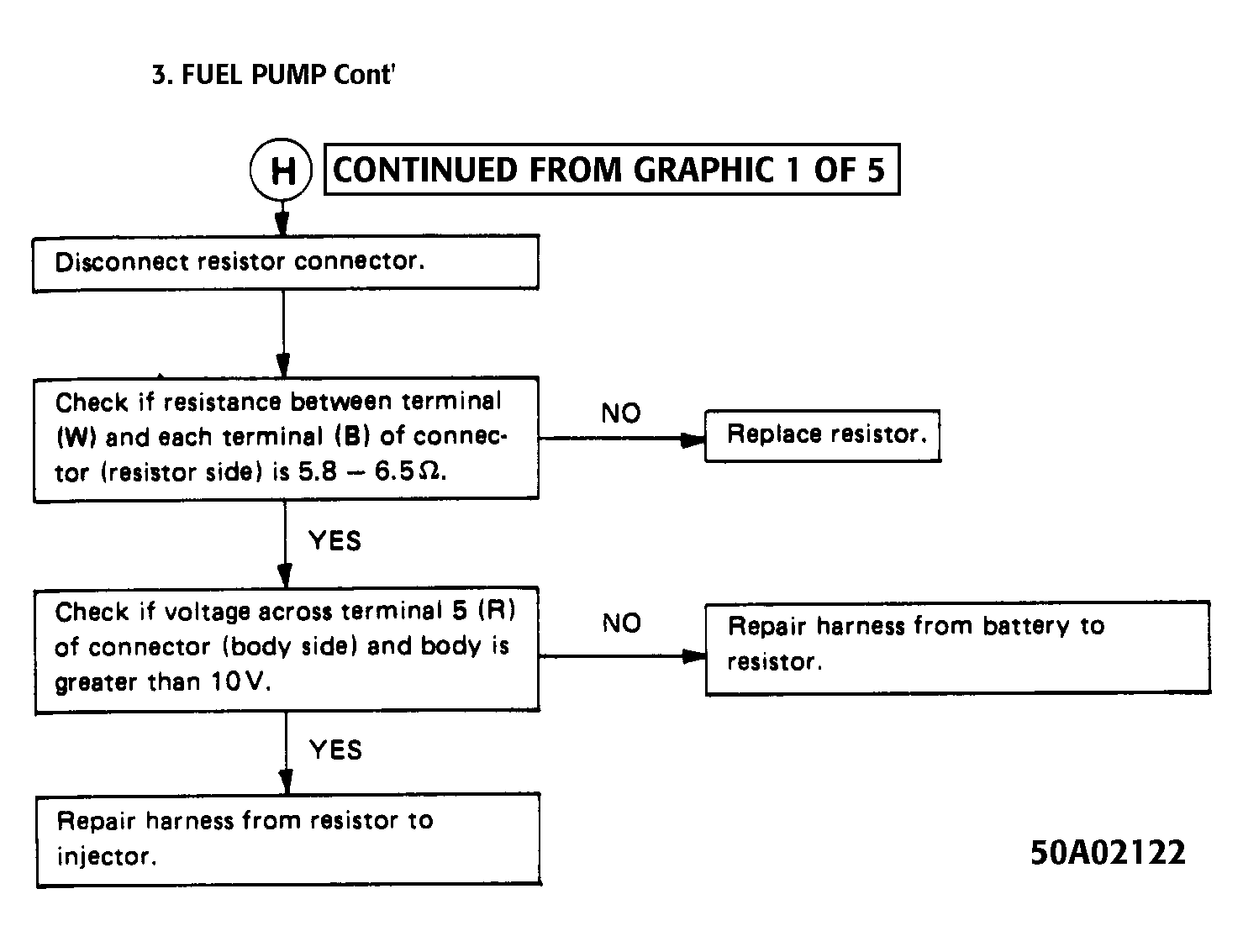

Fig 5: Fuel Pump Circuit Part 5 of 5
