Service Specifications
SPECIFICATIONS AND SERVICE DATA
Engine Specifications

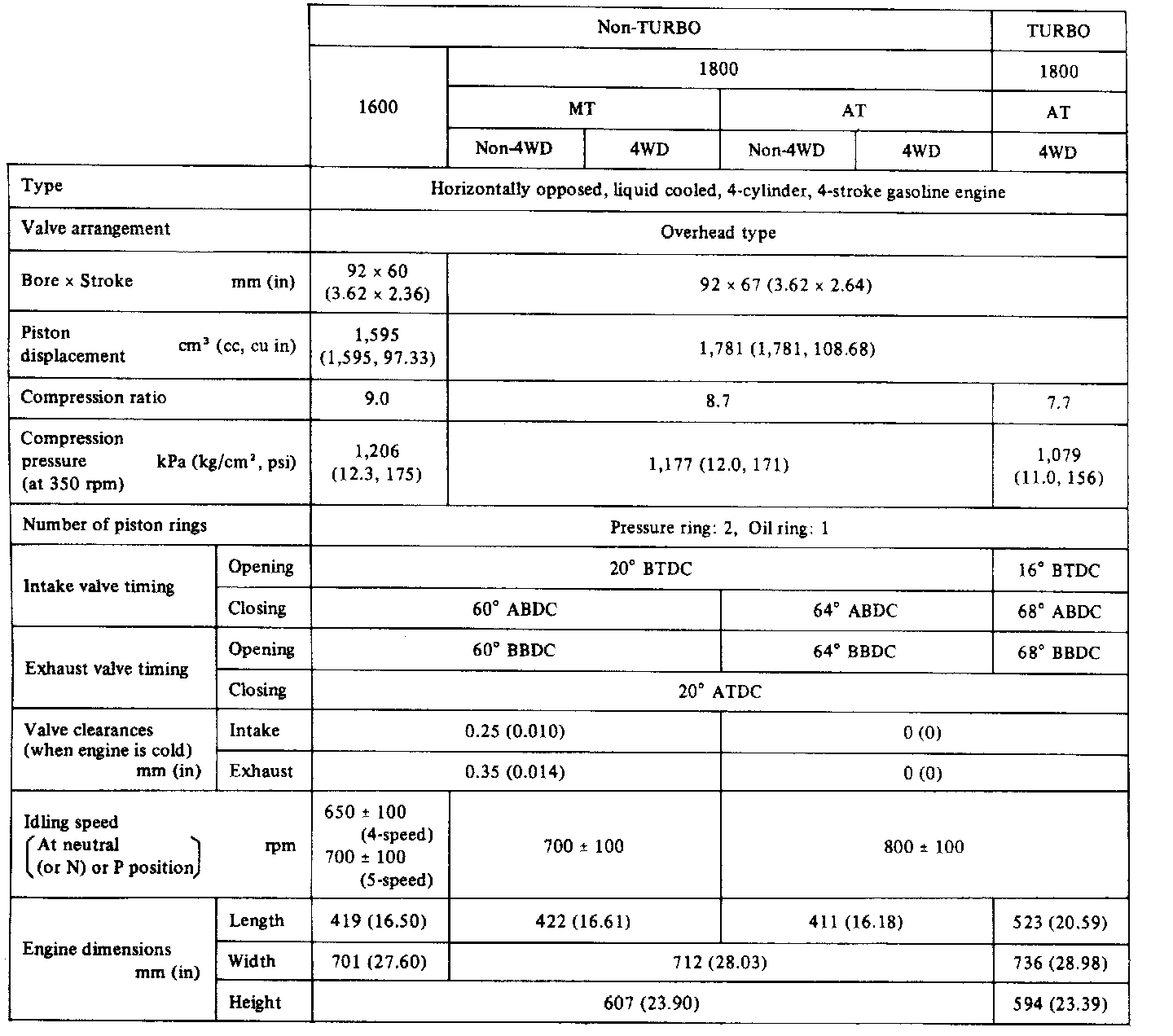

Engine, Part 1 Of 4:

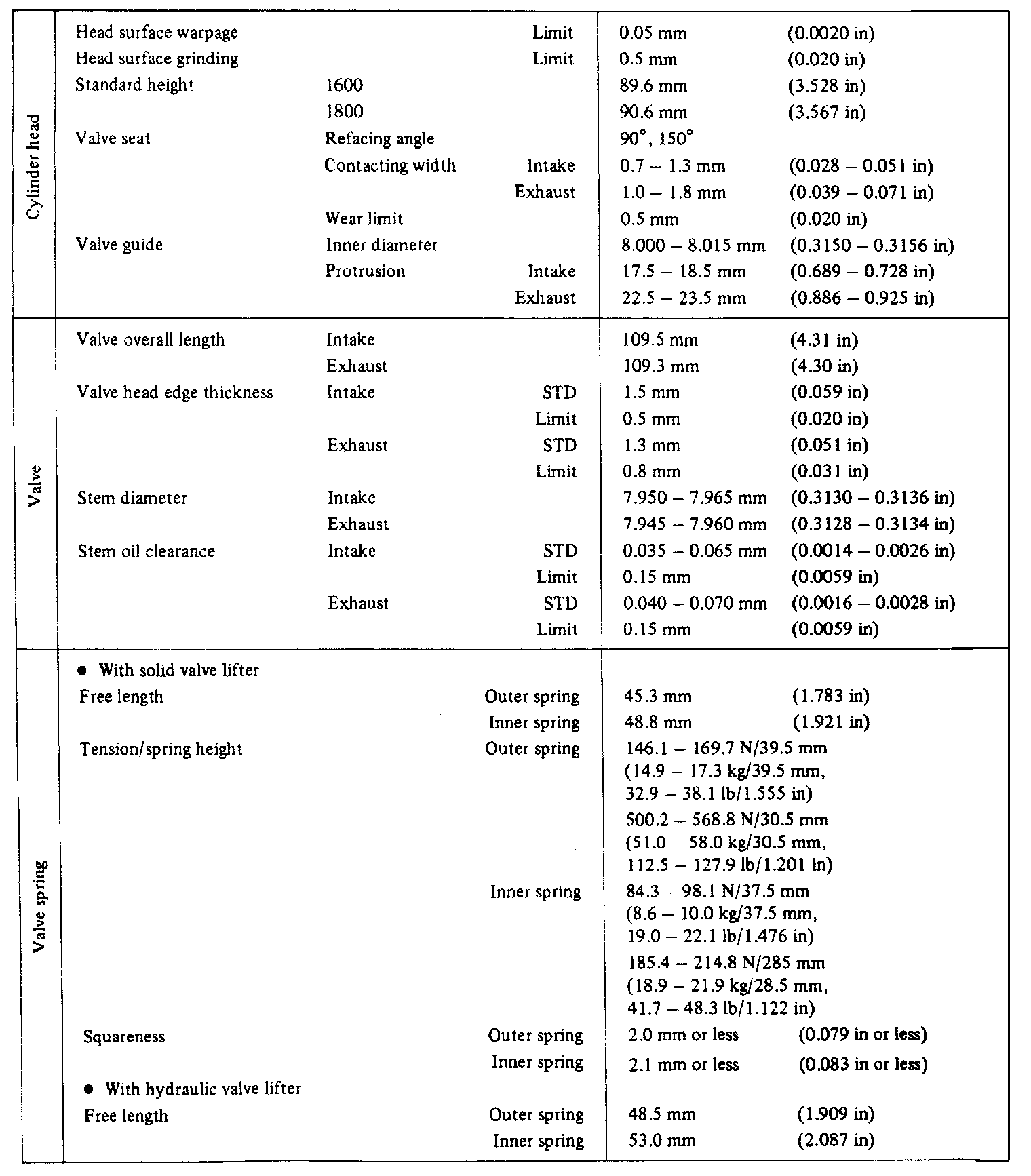

Engine, Part 2 Of 4:

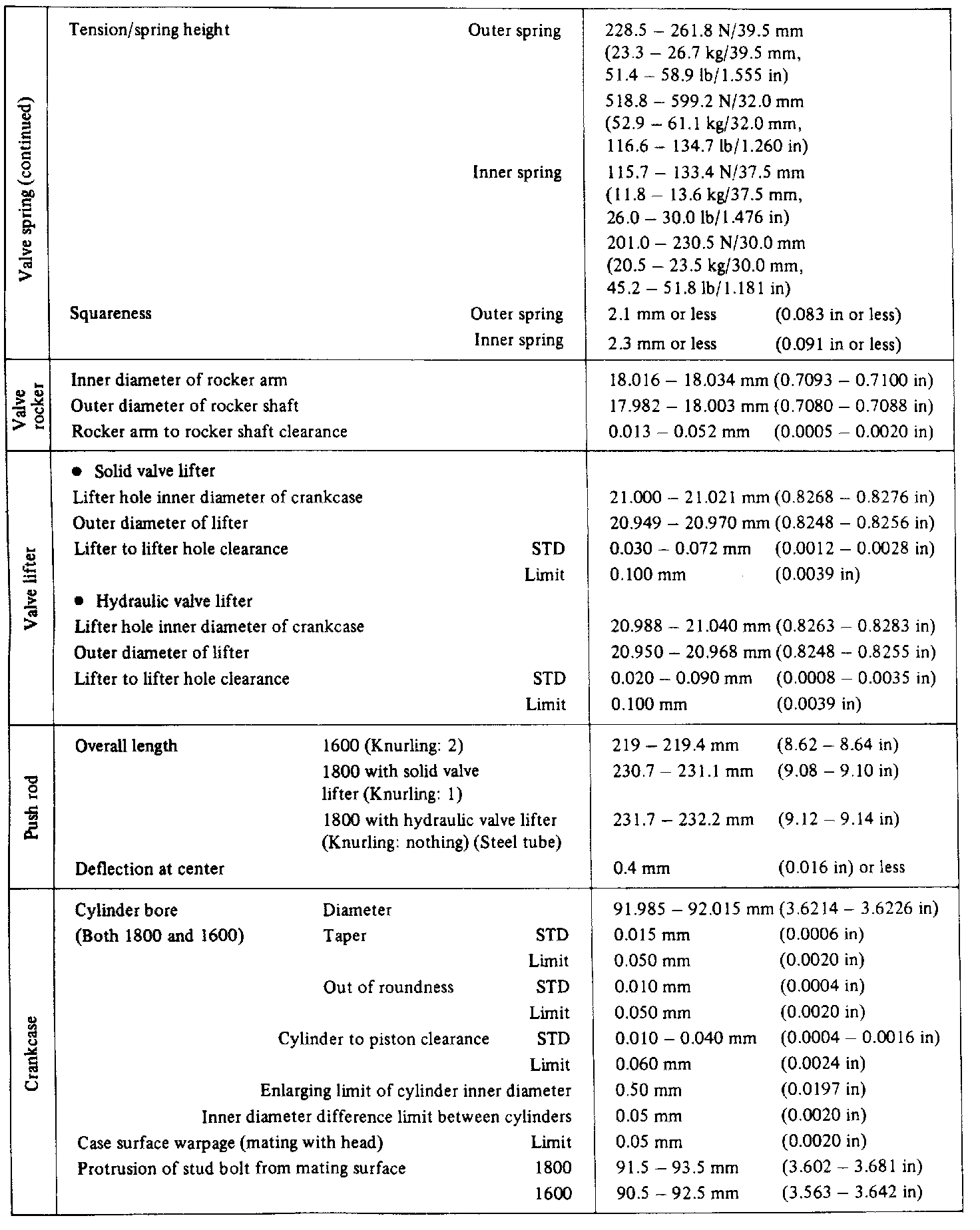

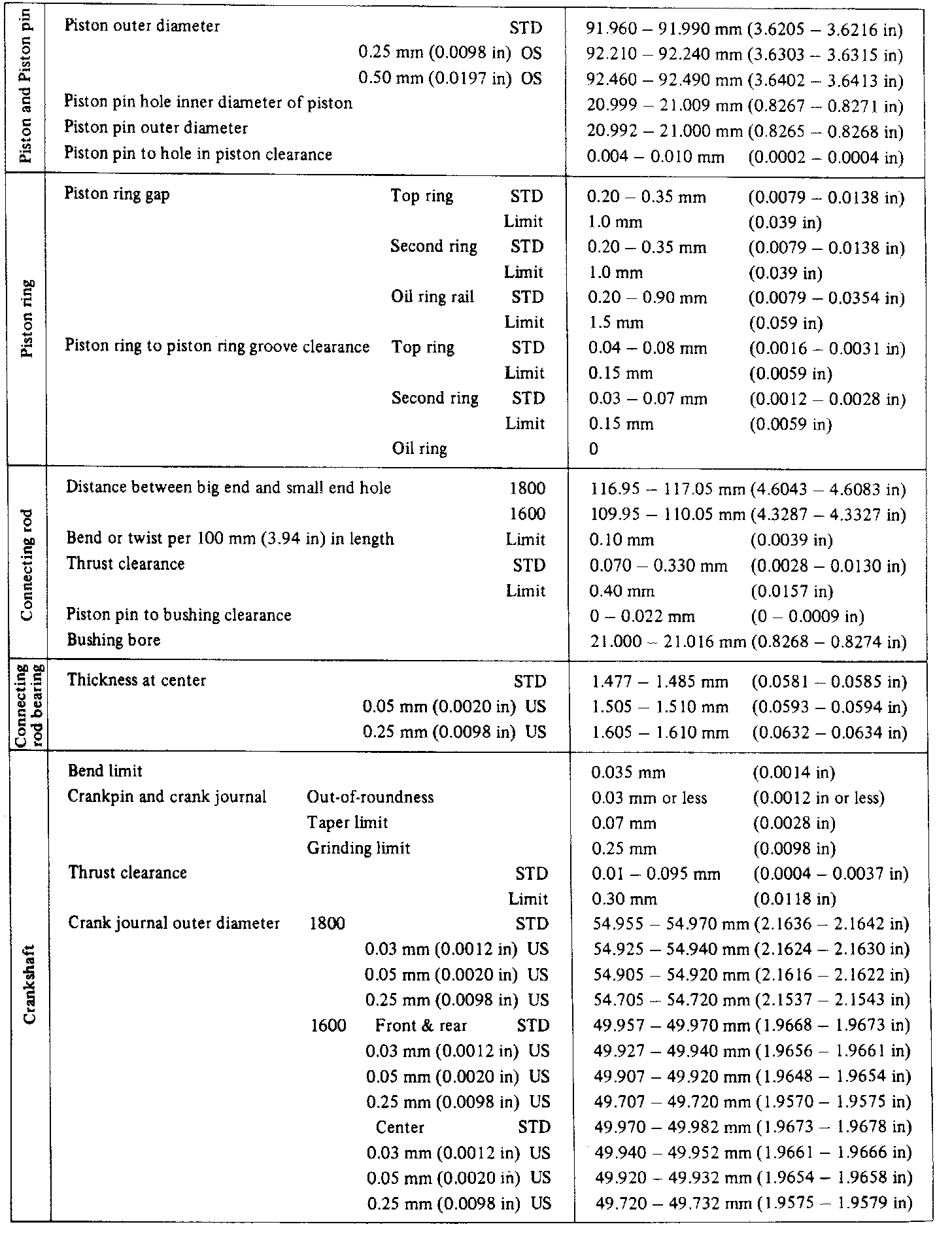

Engine, Part 3 Of 4:

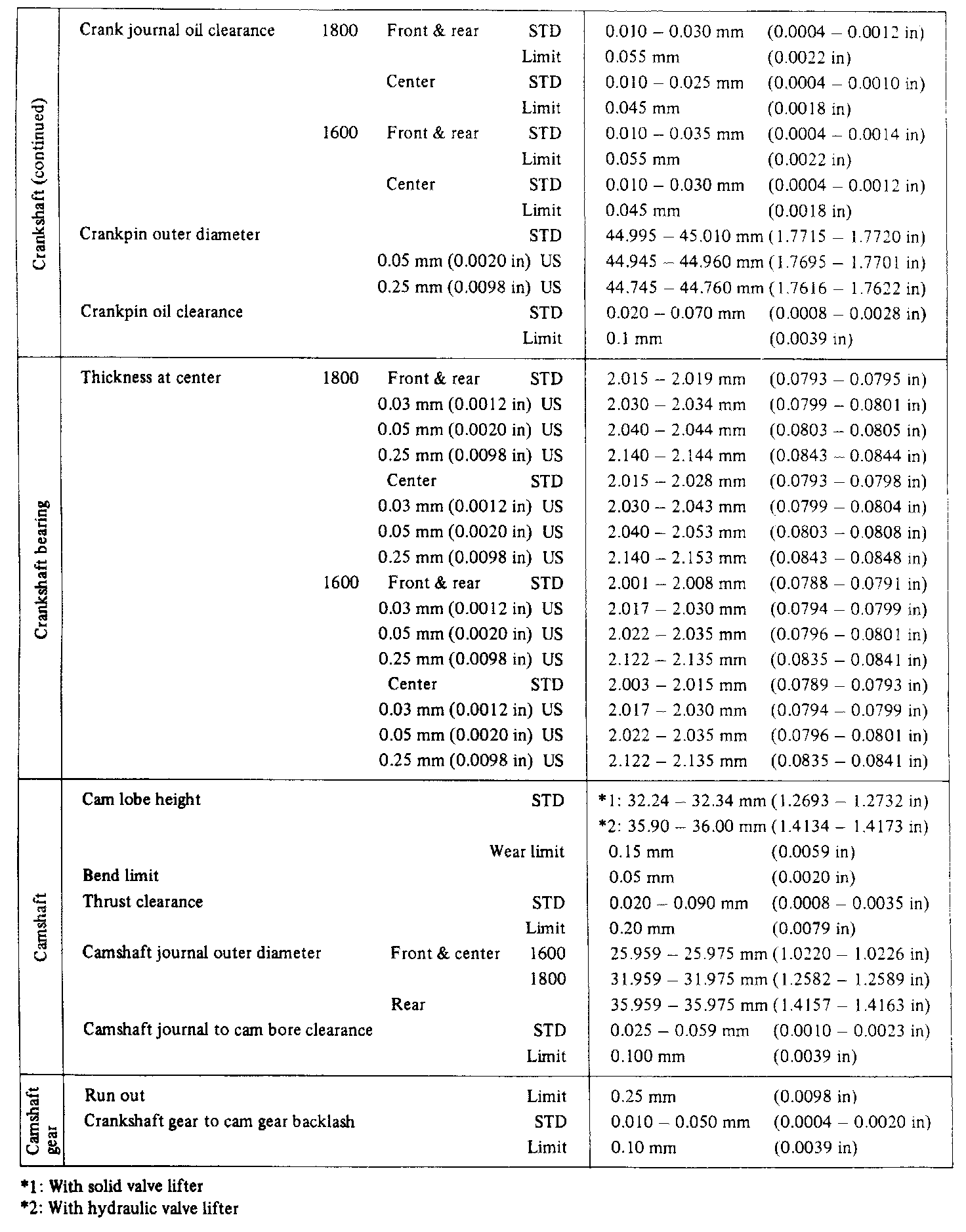

Engine, Part 4 Of 4:
Oil Pump Data:
Service Specifications
