Clutch Switch: Testing and Inspection

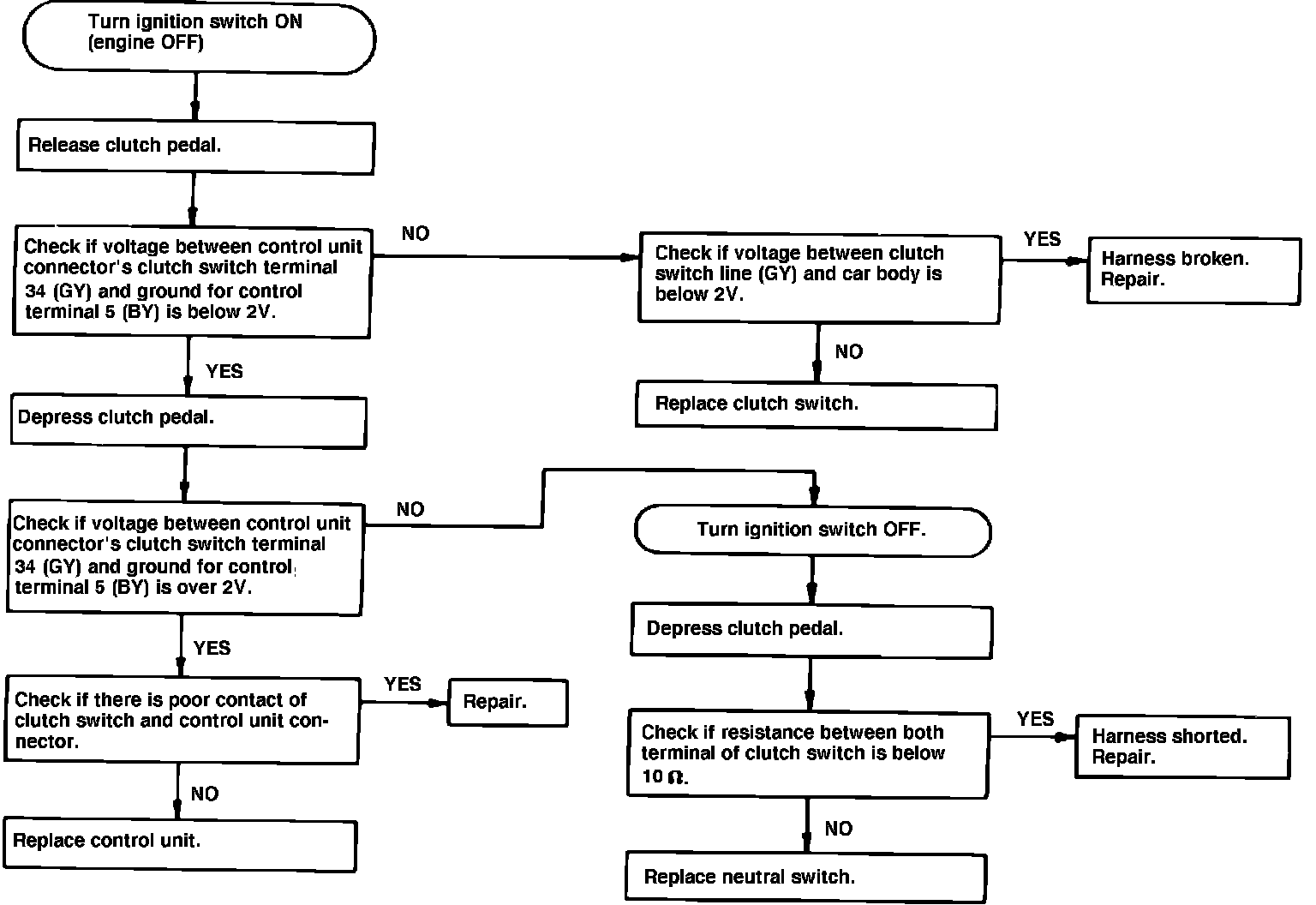

Fig. 53 Electronically controlled carburetor diagnostic chart. Clutch switch (trouble code 52).:
