Code 42: Idle Switch

Fig 1: Schematic - Code 42, Idle Switch

G91G18388

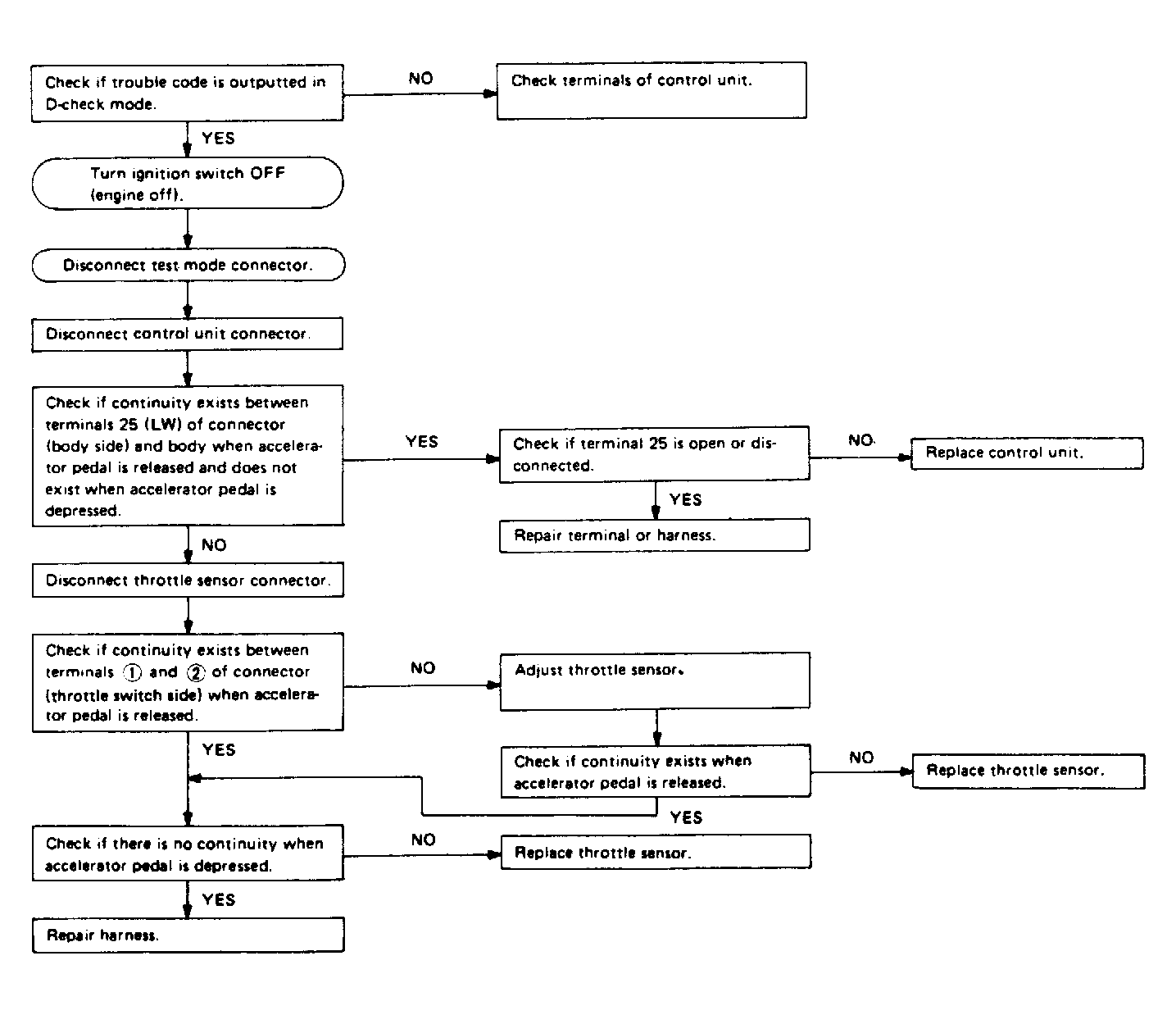

Fig 2: Flow Chart - Code 42, Idle Switch

G90F21902
