Troubleshooting

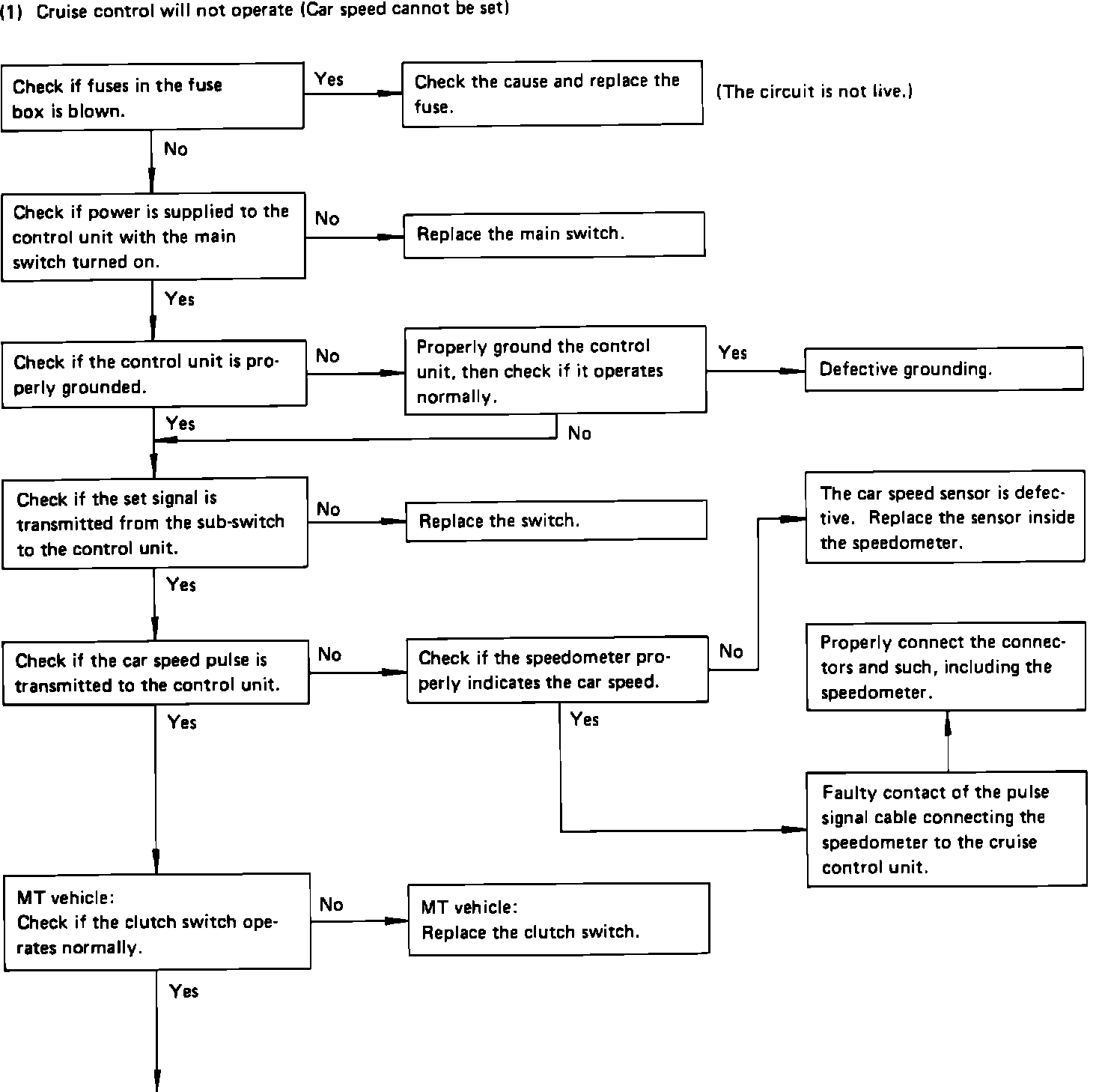

Fig. 1 Speed Control Troubleshooting Chart (Part 1 Of 4):

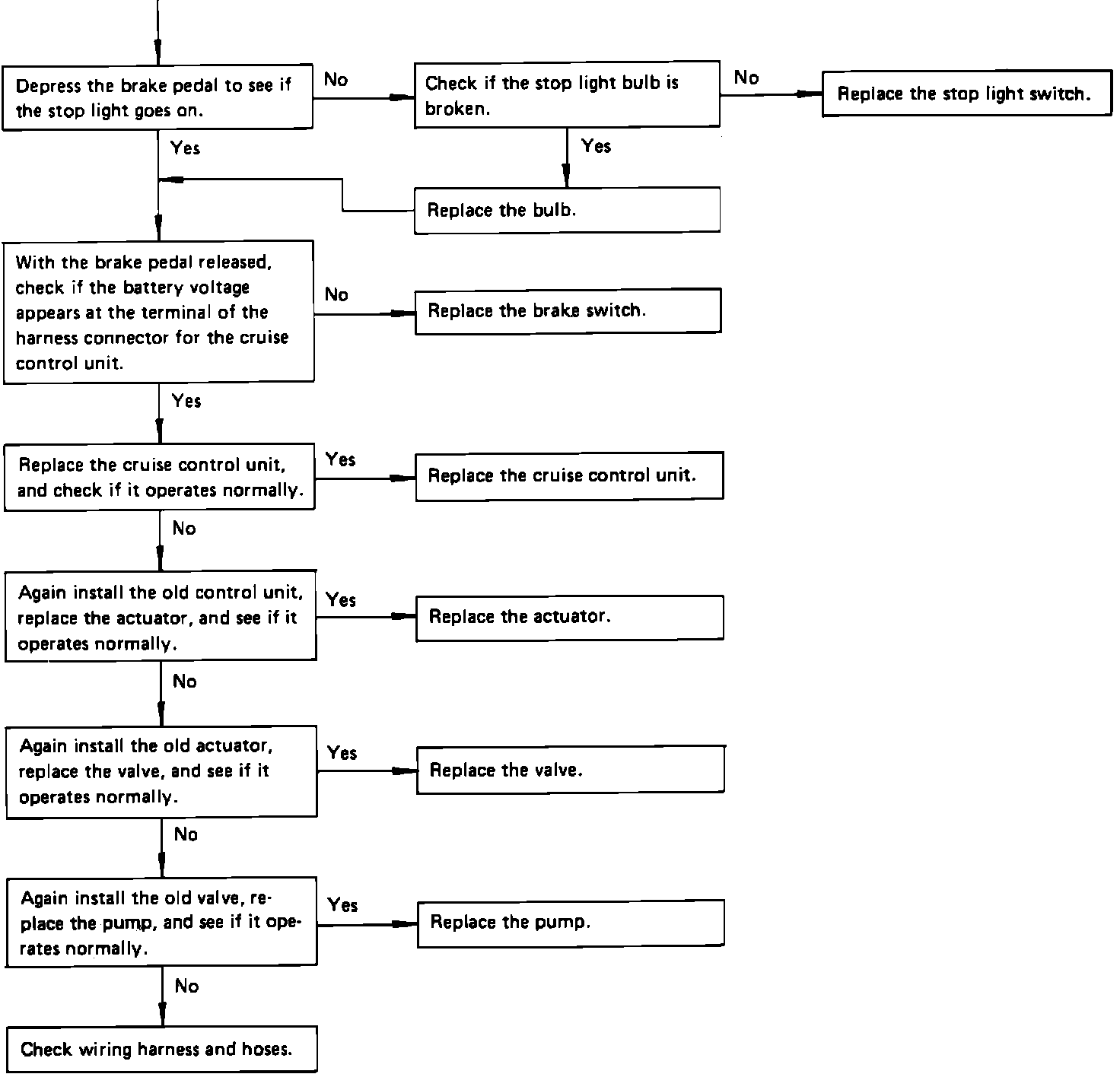

Fig. 1 Speed Control Troubleshooting Chart (Part 2 Of 4):



Fig. 1 Speed Control Troubleshooting Chart (Part 3 Of 4):

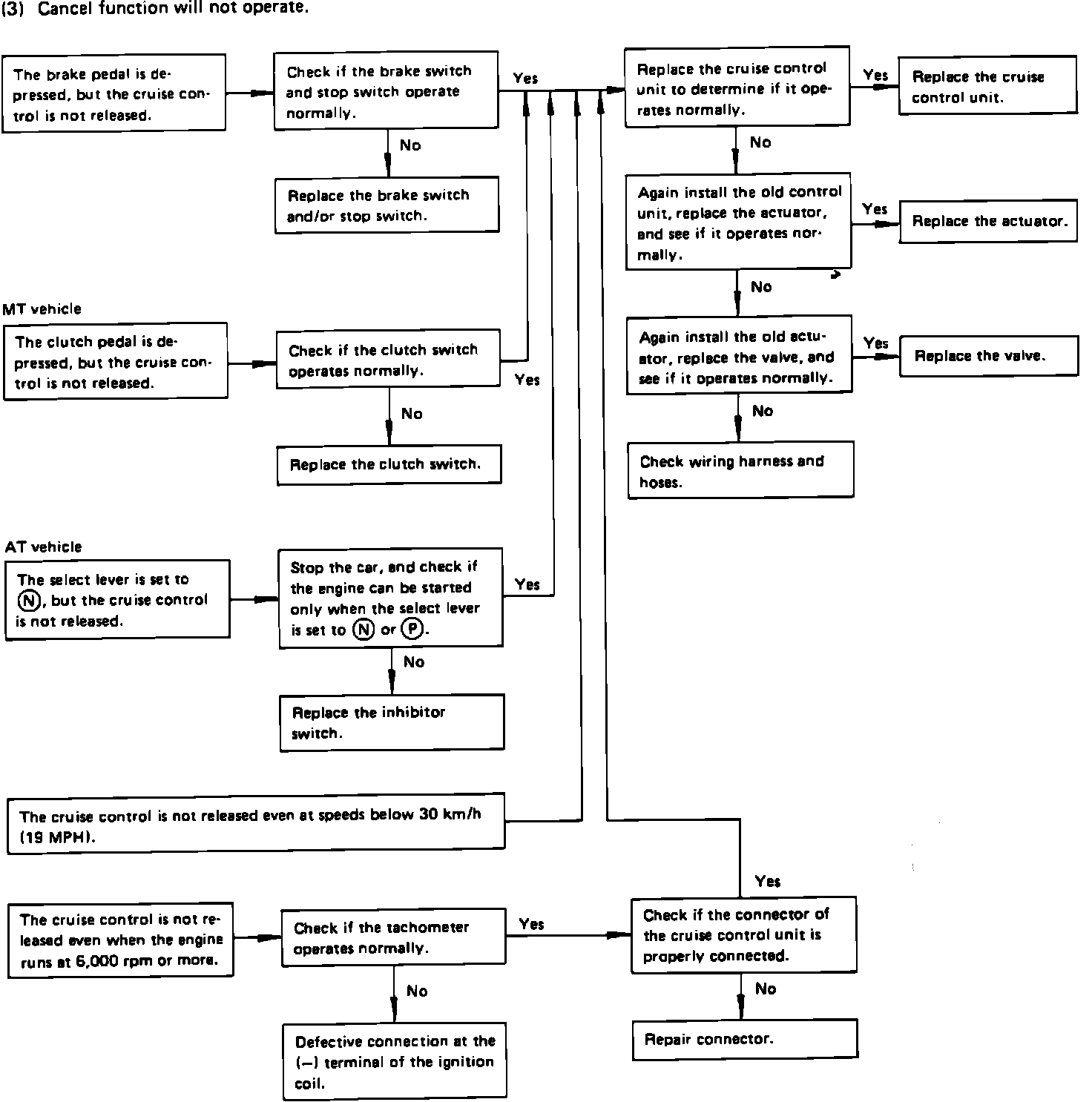

Fig. 1 Speed Control Troubleshooting Chart (Part 4 Of 4):
