Rear Camber

1. Raise and support vehicle.
2. Remove rear wheels.
3. Remove lower shock absorber to inner arm attaching bolt, then loosen outer arm mounting bolts, Fig. 3.

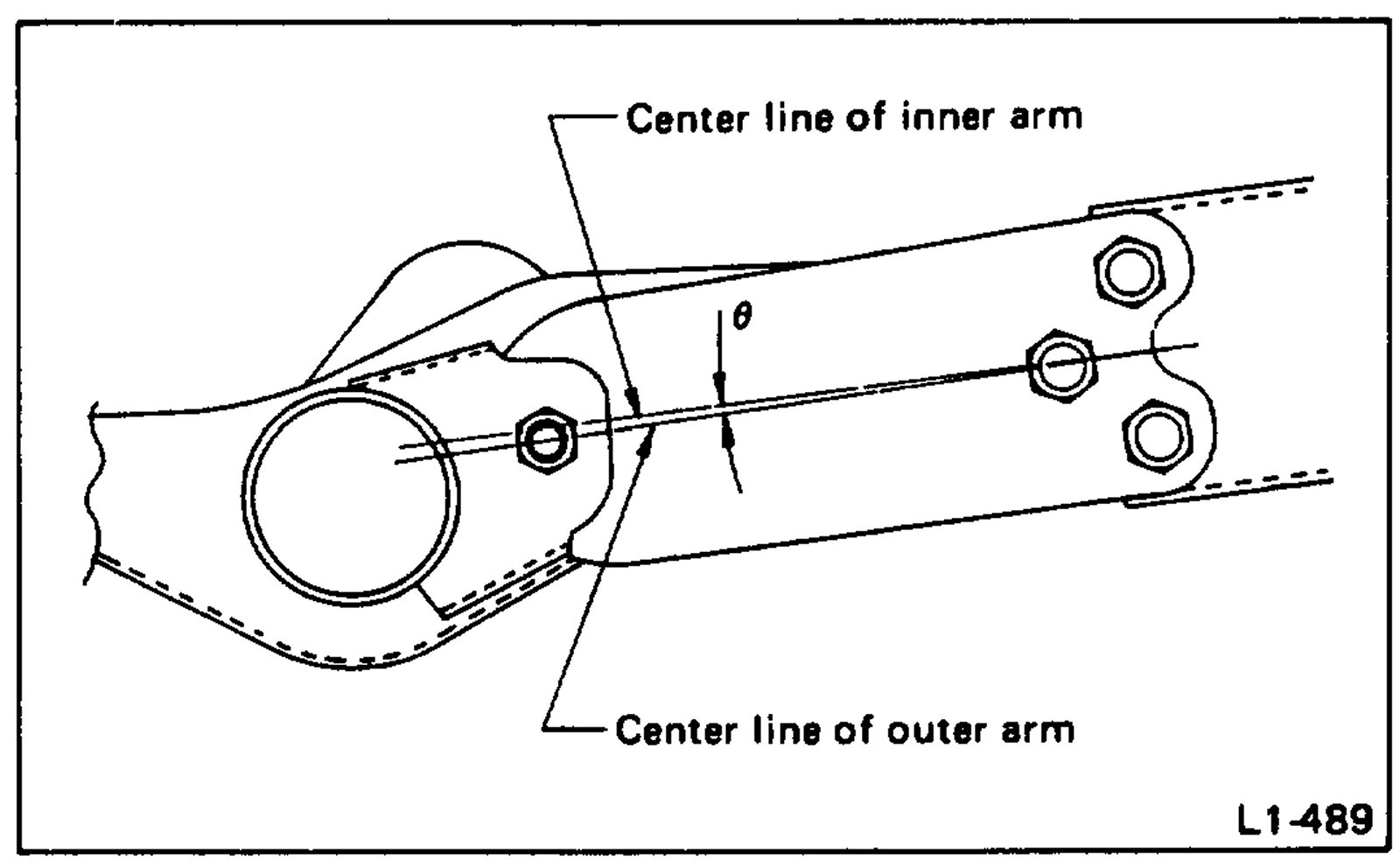

4. If camber angle is excessive in positive direction, use a piece of wood as a lever and change angle as necessary so that angle formed by inner arm and outer arm center lines increases, Fig. 4.
5. If camber angle is excessive in negative direction, use a piece of wood as a lever and change angle as necessary so that angle formed by inner arm and outer arm center lines decreases, Fig. 4.
6. Install shock absorber and tighten loosened bolts.
