Removal & Installation

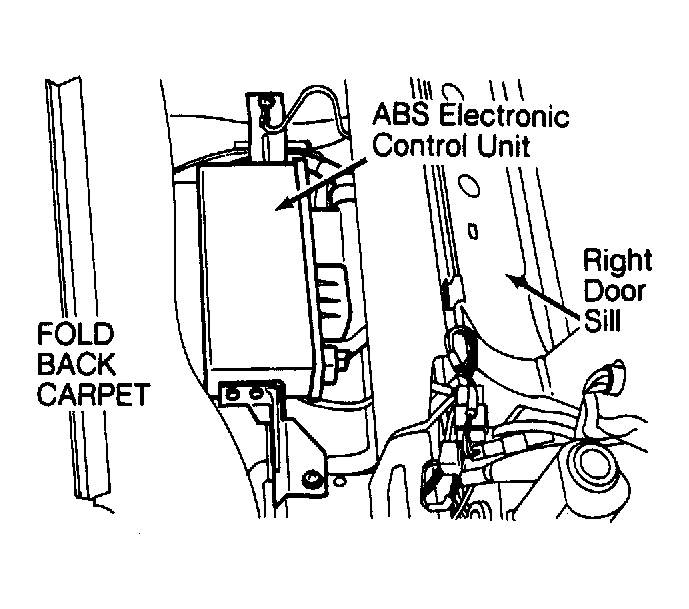

  1. Ensure ignition is off. Locate ABS electronic control unit (ECU) under right side of front passenger seat. Fold back carpet between door sill and seat to expose ABS ECU. See Figure . Remove screws retaining ABS ECU bracket to floor.
  2. To unplug ABS ECU connector, remove screw from end of connector opposite of harness end. Slide harness rubber boot backward over harness. Slide plastic connector cover away from harness end of connector, and remove. To install, reverse removal procedure.
