Steering Column: Installation

Insert column through floorboard into "U" joint. Install and tighten upper bracket bolt into instrument panel. Install air duct and trim panel.
Install and tighten lower column bolts. Connect electrical connectors. Tighten "U" joint clamp bolt. Check operation of steering wheel and switches.

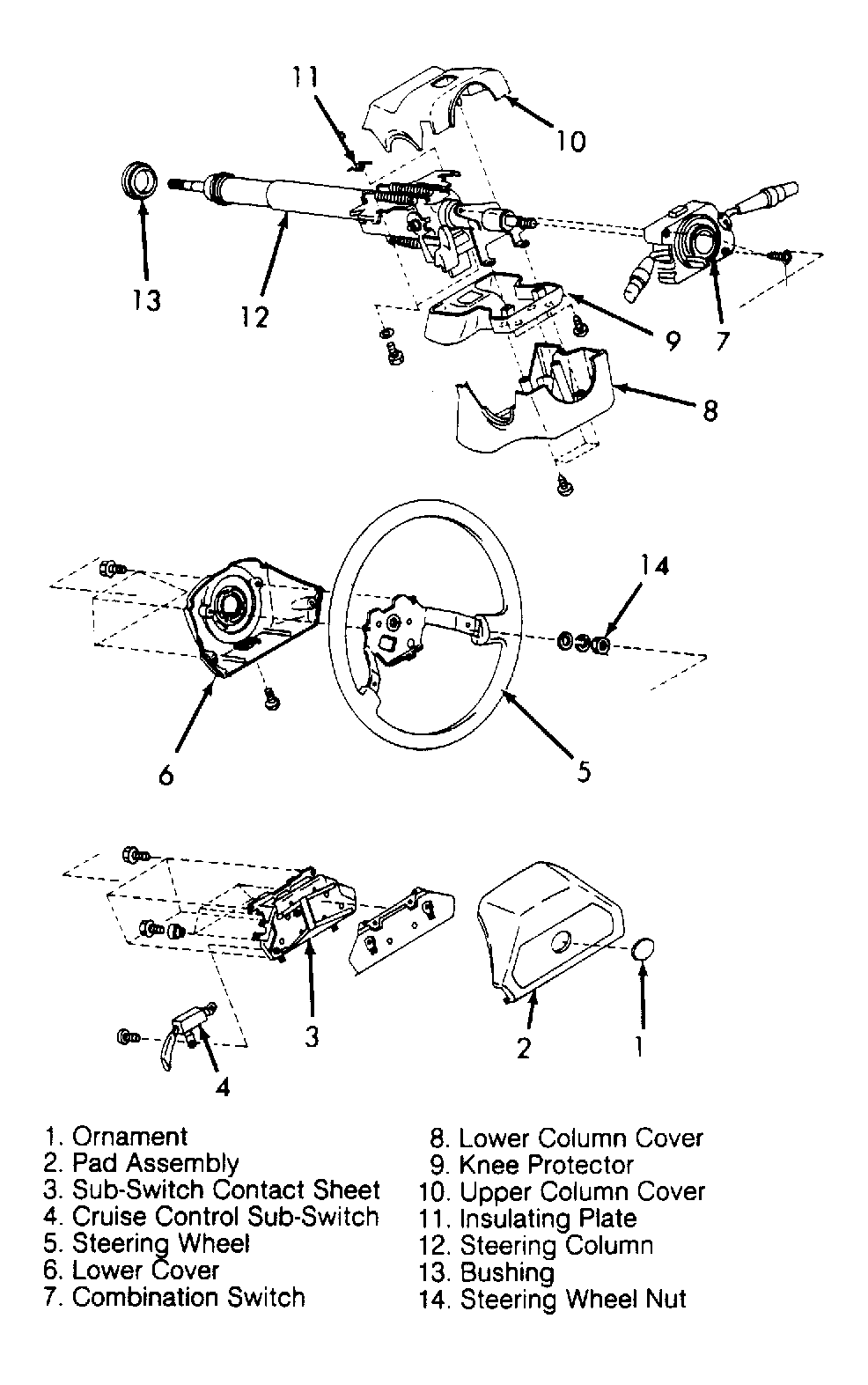

Fig 1: Identifying Steering Column Components (Justy)

Courtesy of SUBARU OF AMERICA, INC.

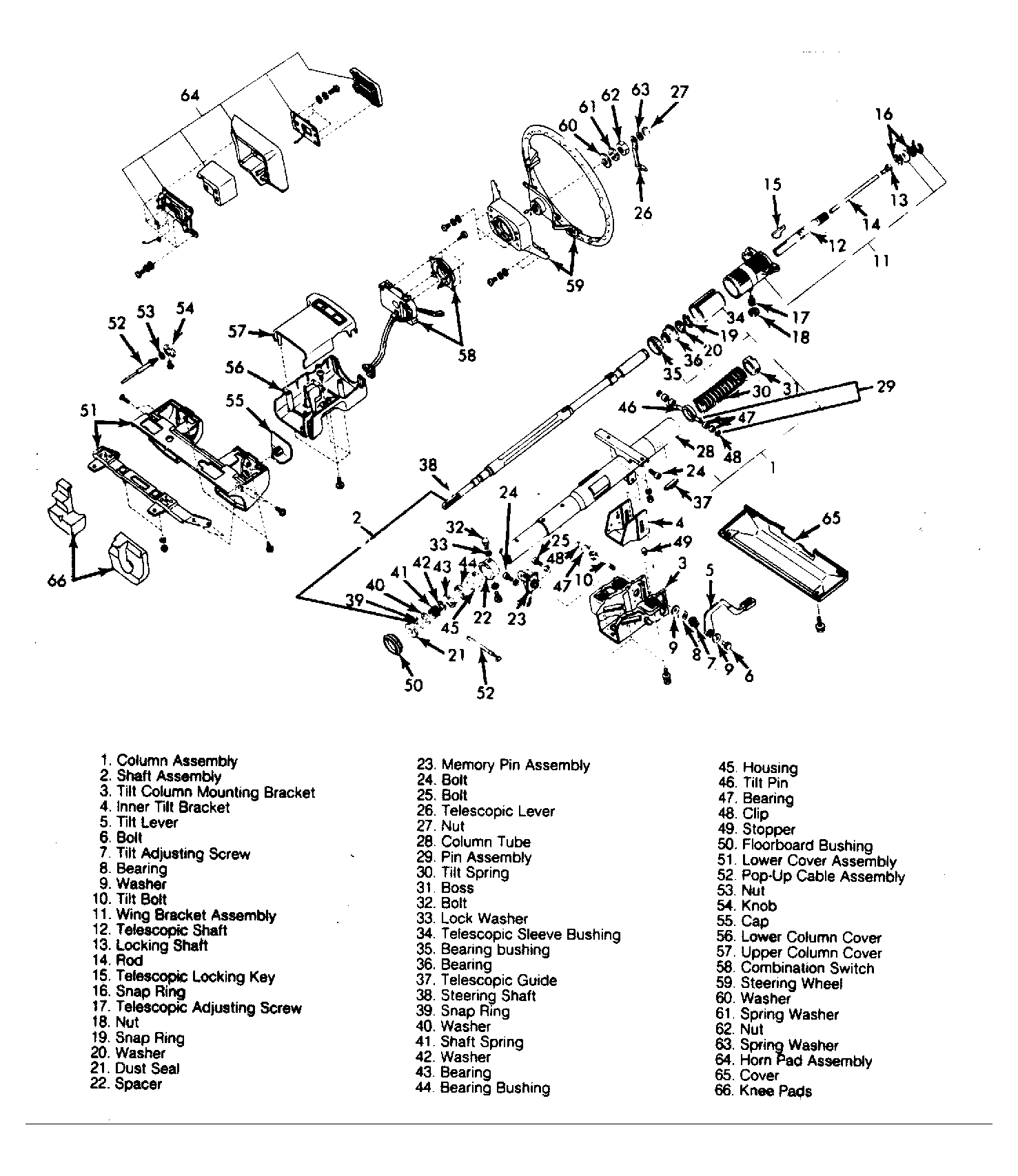

Fig 2: Identifying Rigid Steering Column Component (Legacy)

Courtesy of SUBARU OF AMERICA, INC.

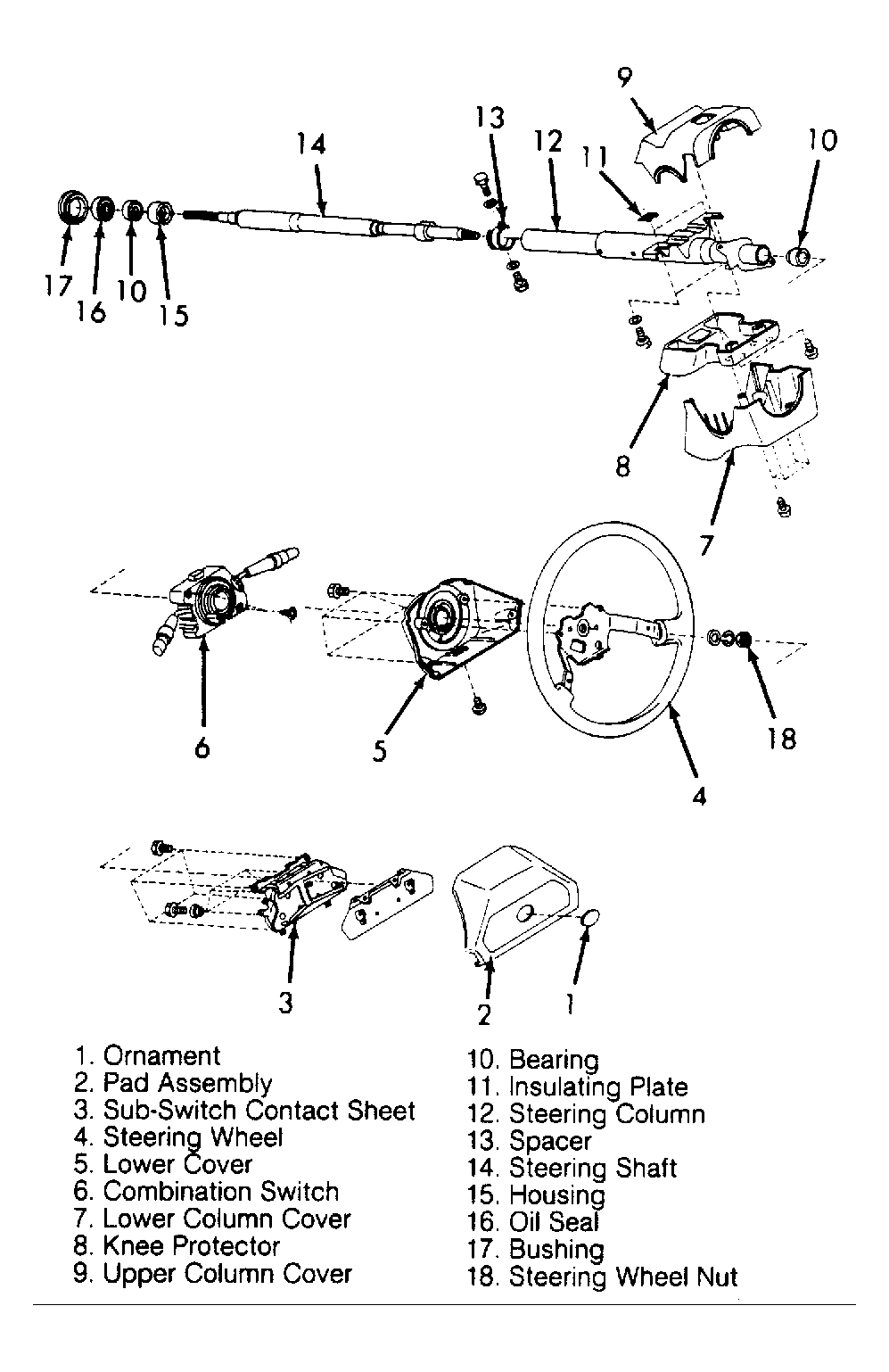

Fig 3: Identifying Steering Column Component (Loyale)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Tilt Steering Column Component (Legacy)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Steering Column Components (XT & XT6)

Courtesy of SUBARU OF AMERICA, INC.
