Shift Linkage Adjustment

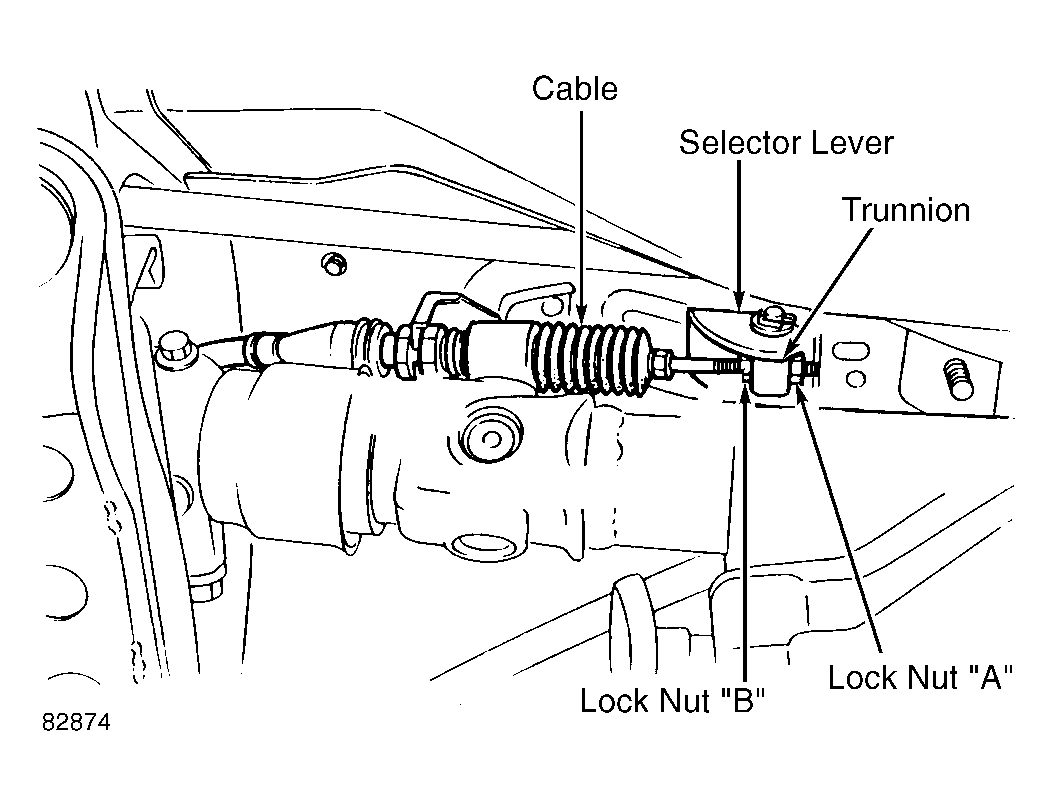

- Shift cable adjustment is made at bottom of gearshift lever. Place gearshift lever in the "N" position. Loosen lock nuts on both sides of inner cable. See Fig 1.
- Lightly push selector lever away from lock nut "B". Tighten lock nut "A" until it contacts selector lever trunnion. Tighten lock nut "B" to 9-17 ft. lbs. (13-23 N.m).
