Fuel Pump Circuit Tests: Notes

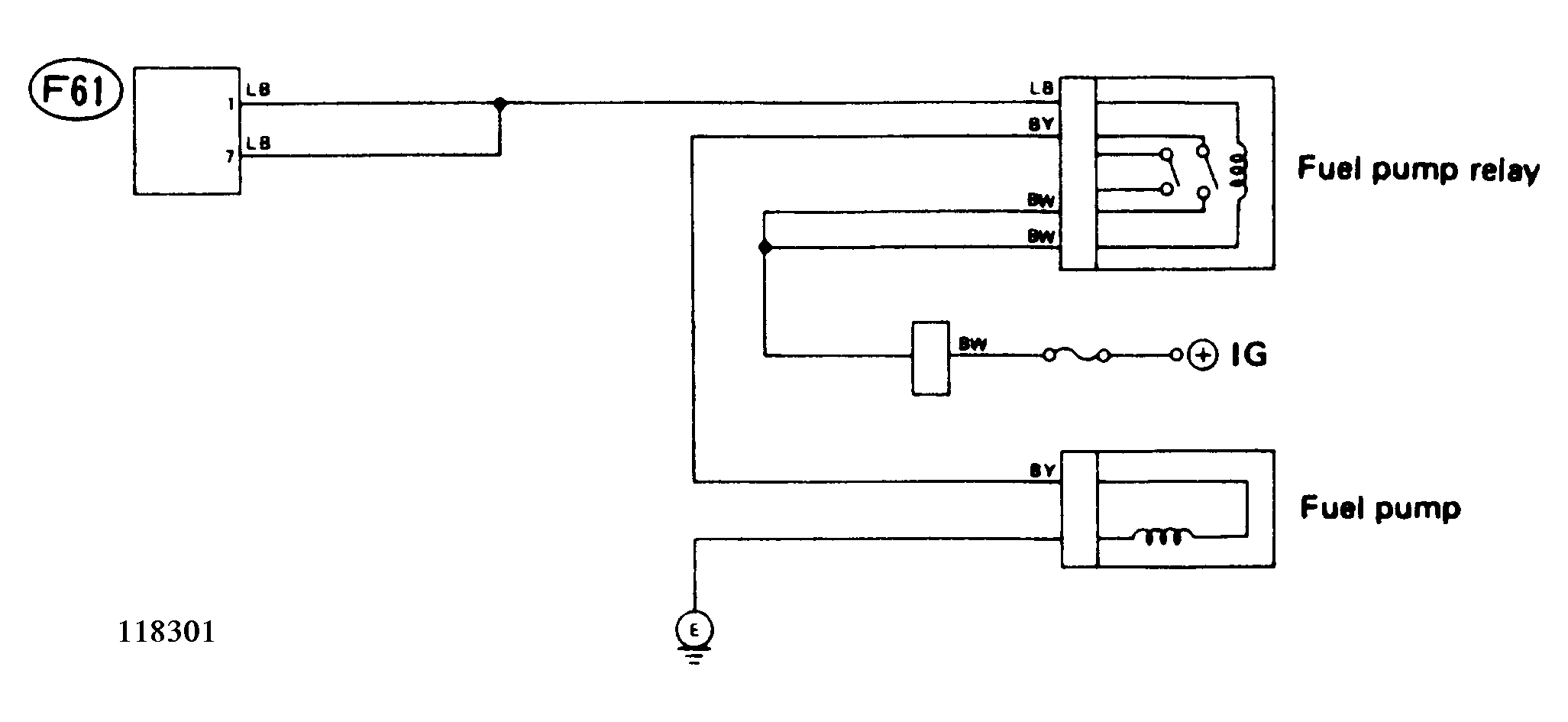

Fig 1: Fuel Pump Ckt Test, Schematic

Courtesy of SUBARU OF AMERICA, INC.

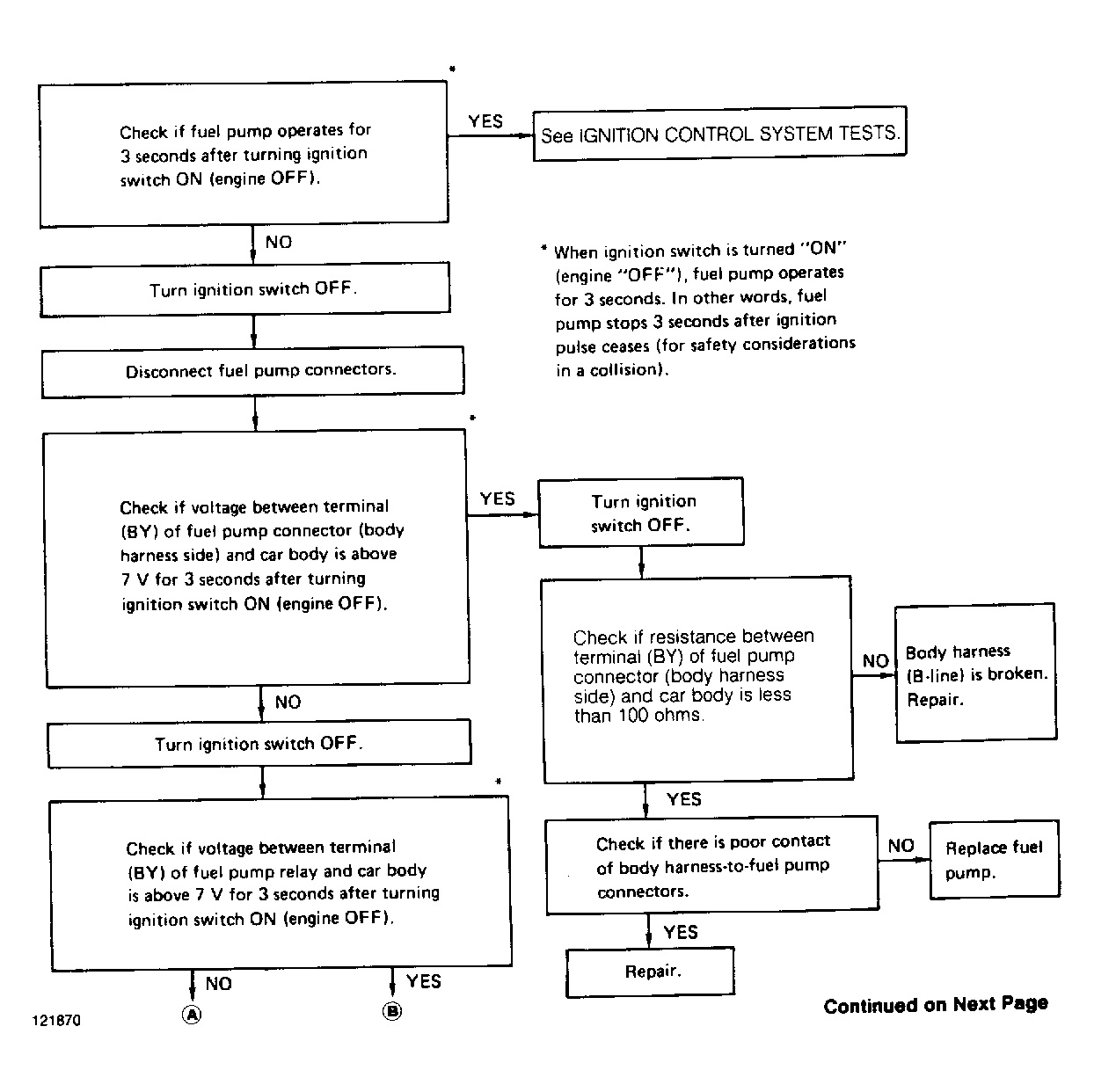

Fig 2: Fuel Pump Circuit Test, Flow Chart (1 of 3)

Courtesy of SUBARU OF AMERICA, INC.

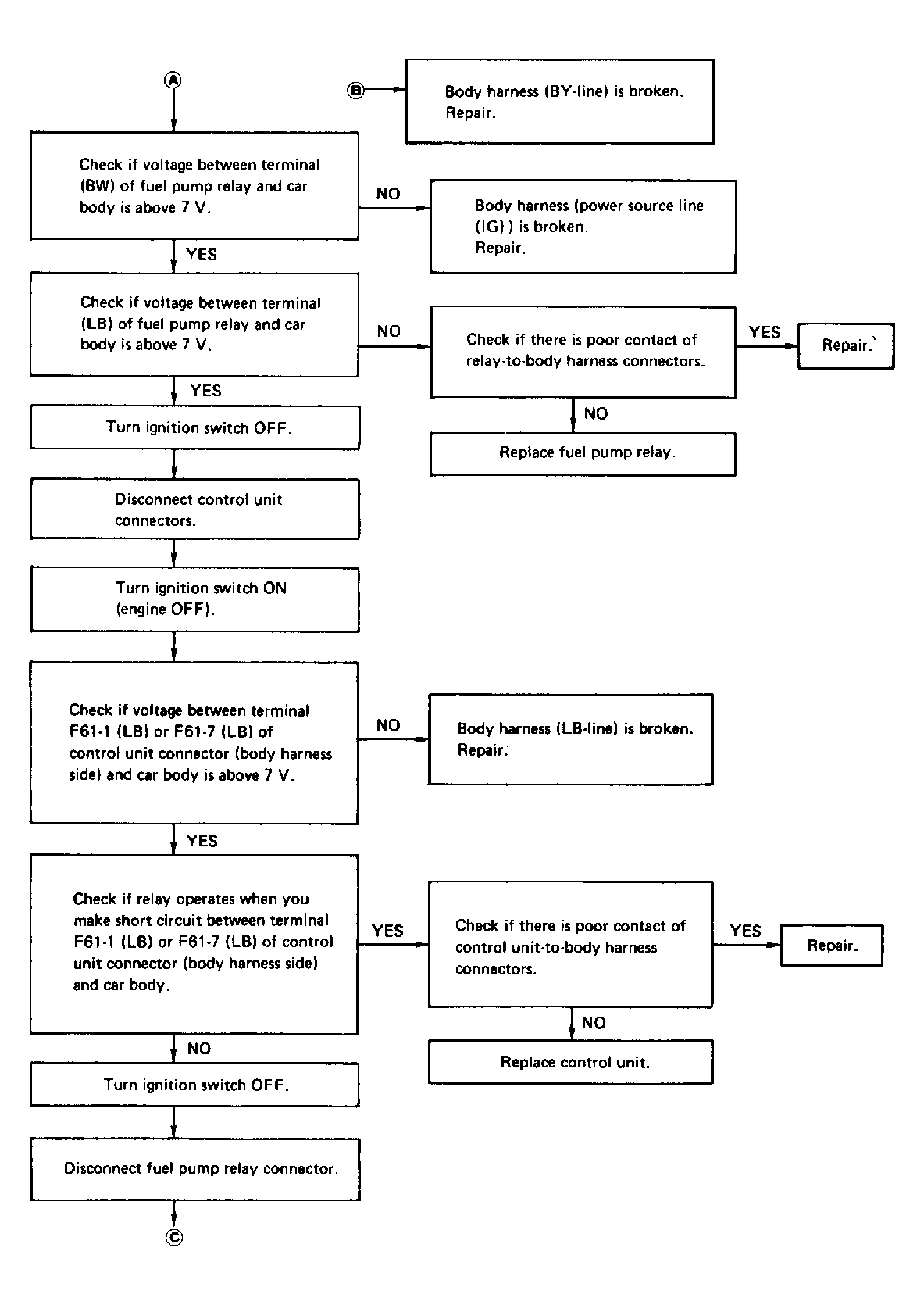

Fig 3: Justy Fuel Pump Circuit Test, Flow Chart (2 of 3)

Courtesy of SUBARU OF AMERICA, INC.

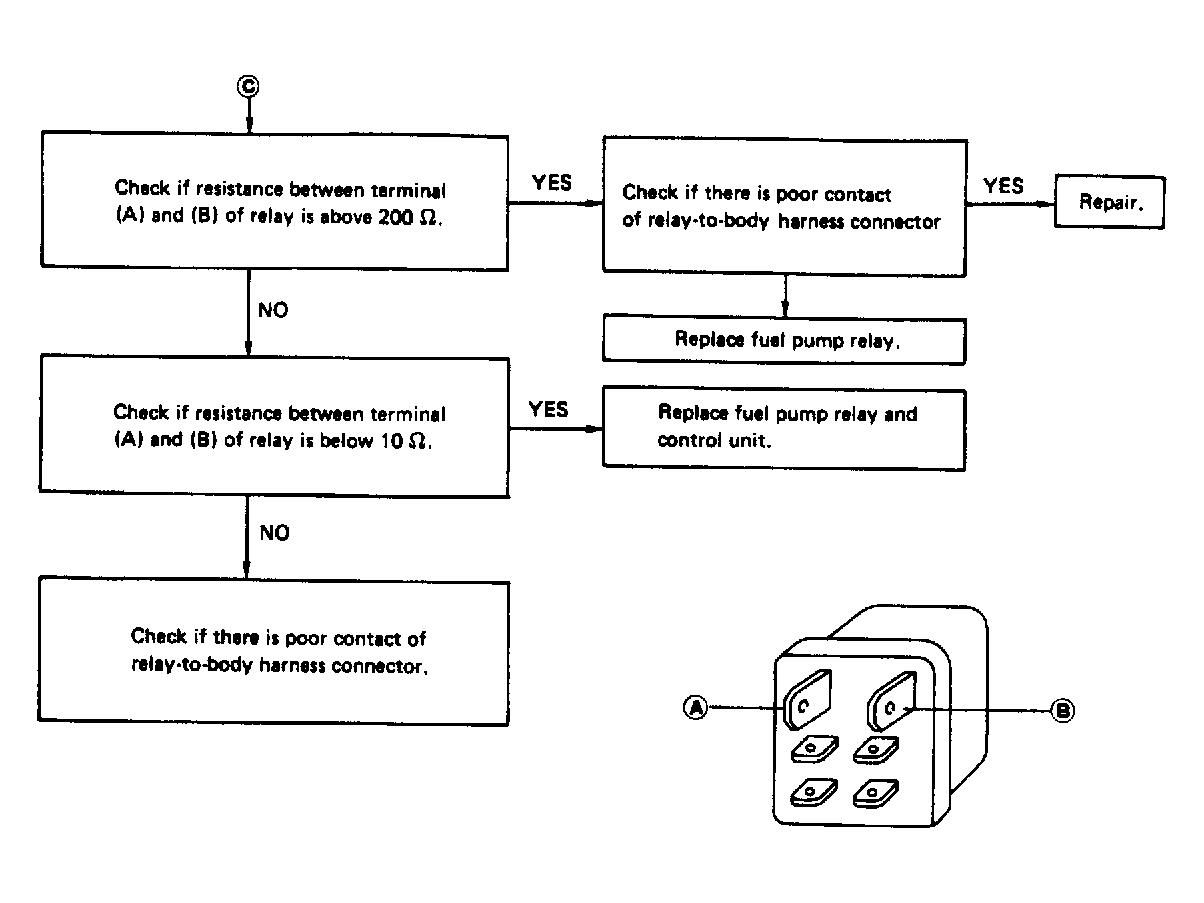

Fig 4: Justy Fuel Pump Circuit Test Flow Chart (3 of 3)

Courtesy of SUBARU OF AMERICA, INC.
