Wiring Diagrams

WARNING: This page is about a different car, the 1992 Subaru SVX, 1992 Subaru Legacy, 1991 Subaru Legacy, and 1990 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

For 1992 model wiring diagrams, see WIRING DIAGRAMS article.

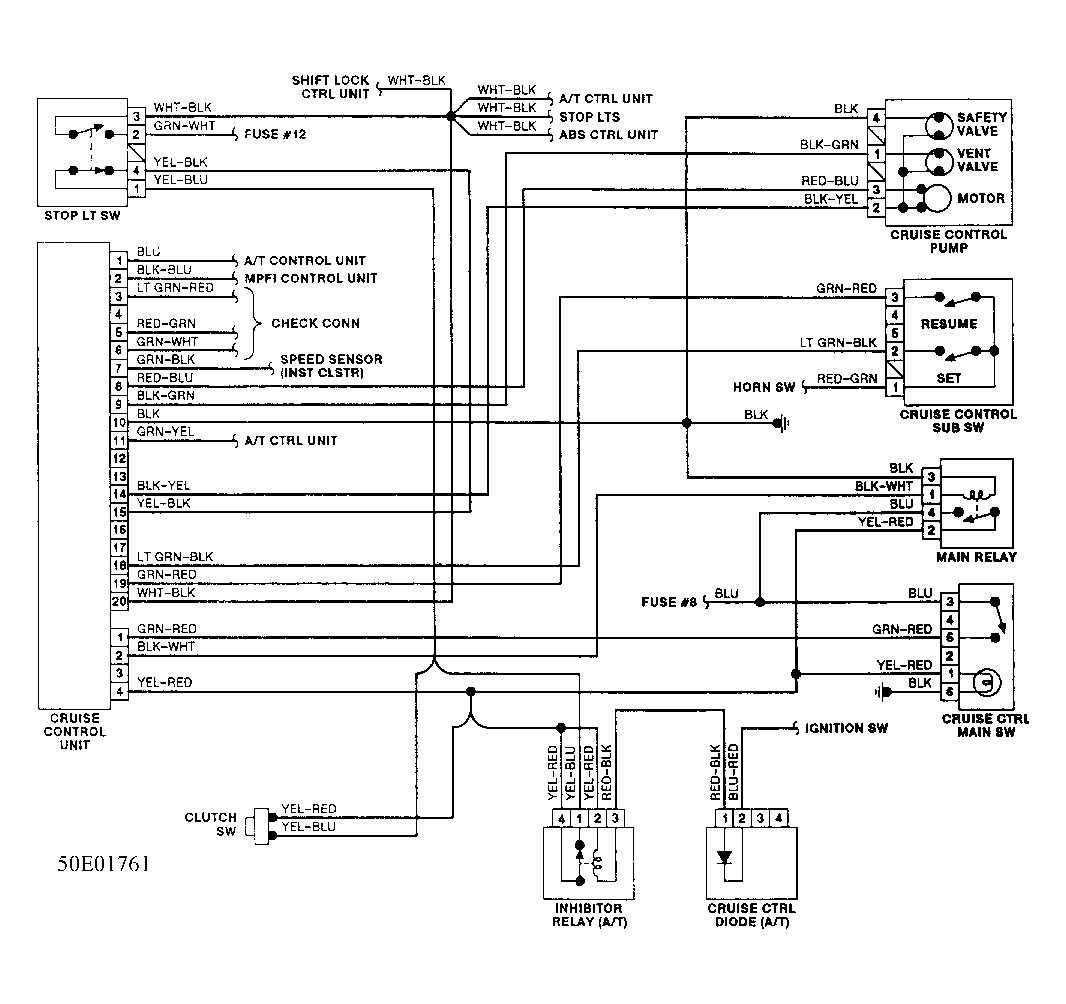

Fig 1: Cruise Control System Wiring Diagram (1990-91 Legacy)
G50E01761
