Legacy Sedan 2WD F4-2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Control Valve and Harness Routing
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

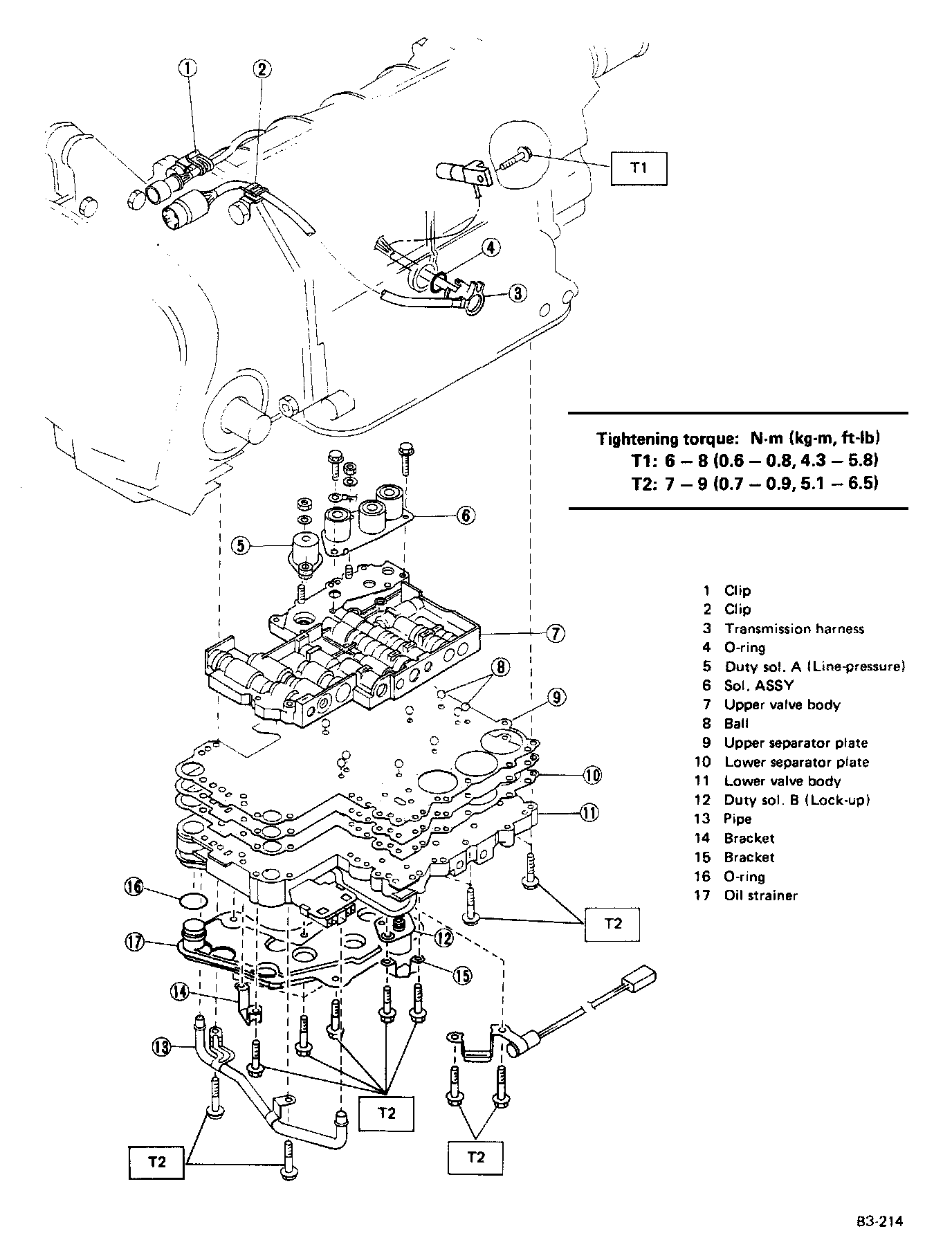

Control Valve and Harness Routing
