A/T Torque Data

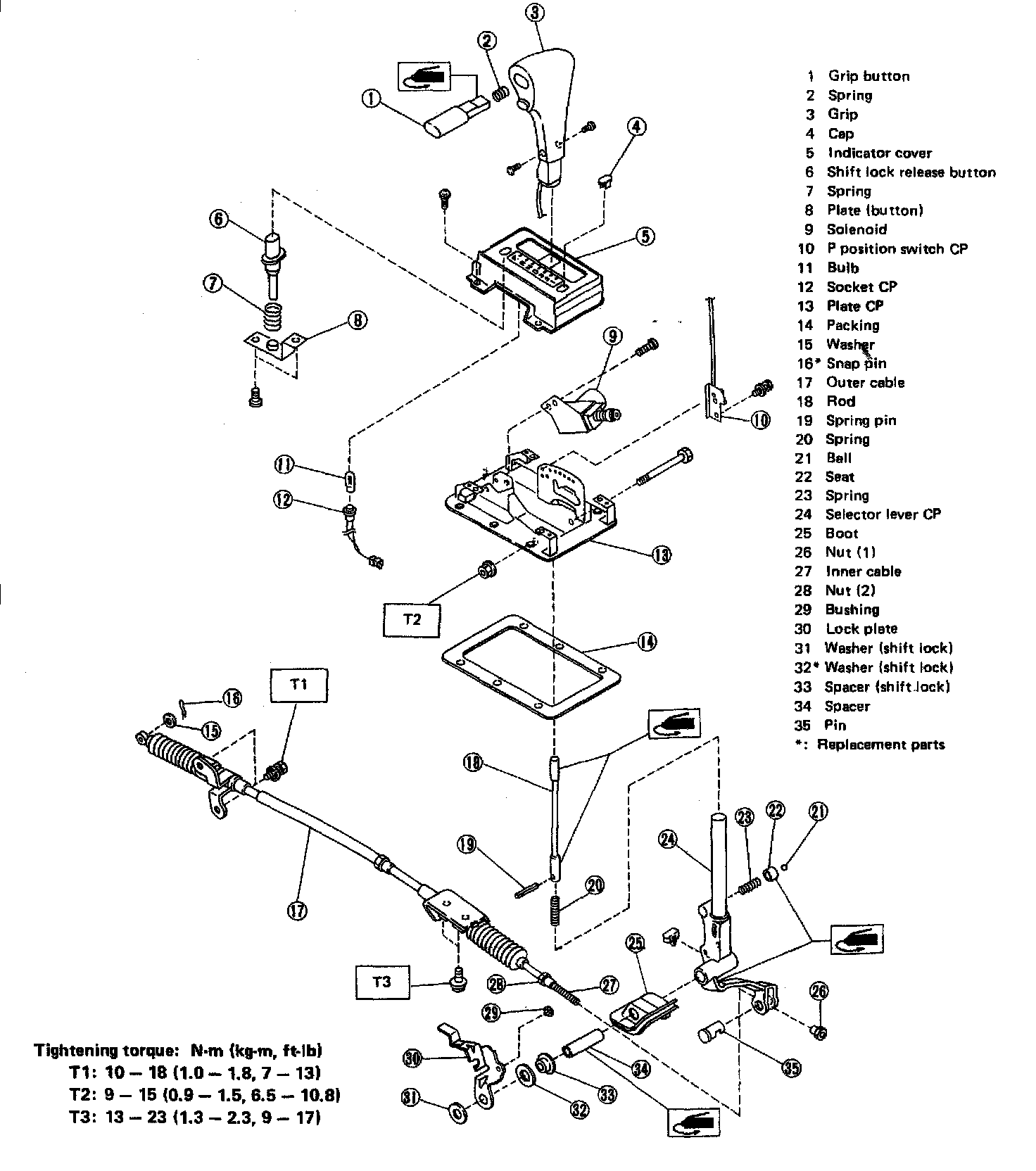

4-spd A/T Transmission Control System:

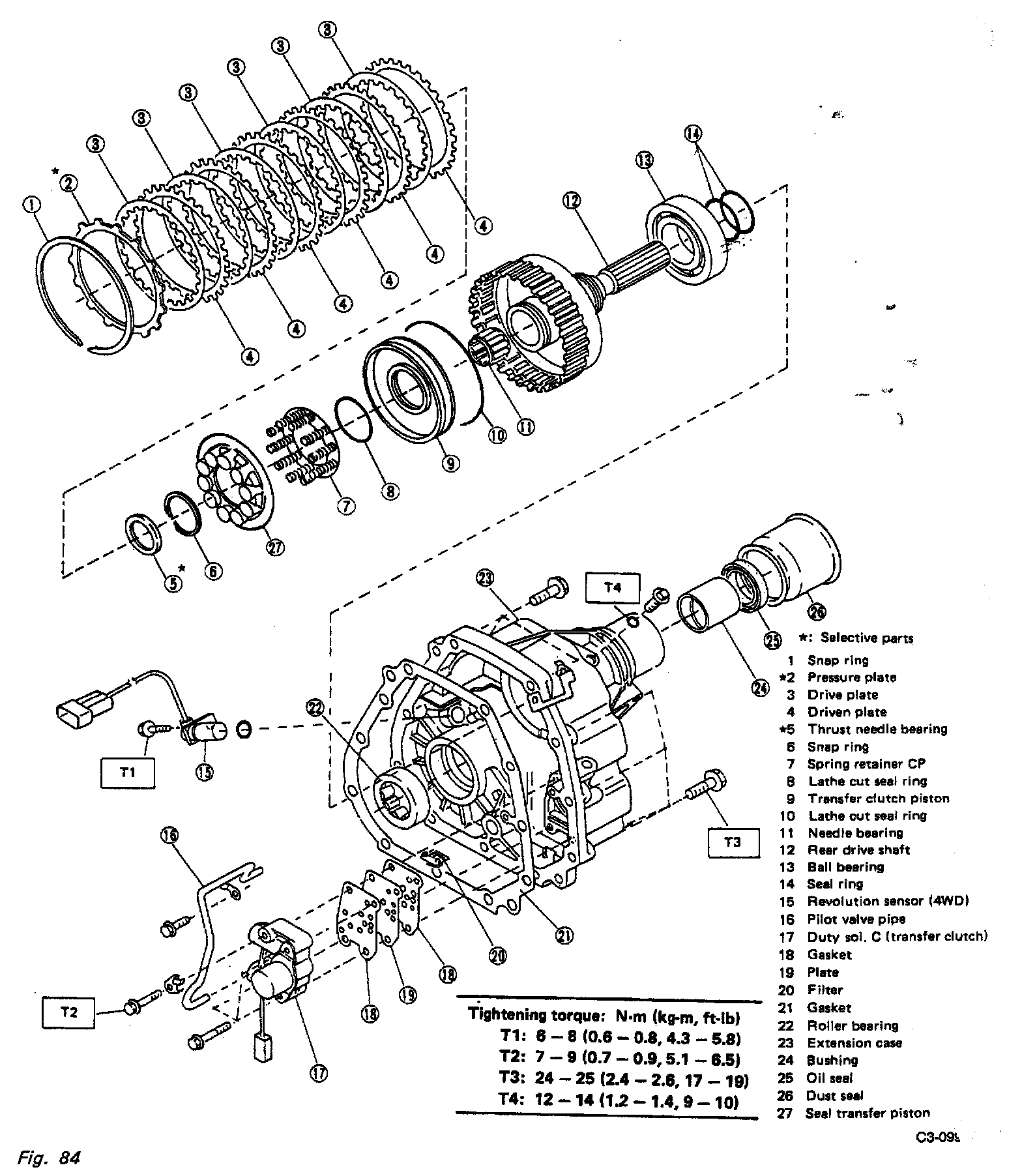

4-spd A/T, Transfer & Transmission Extension:

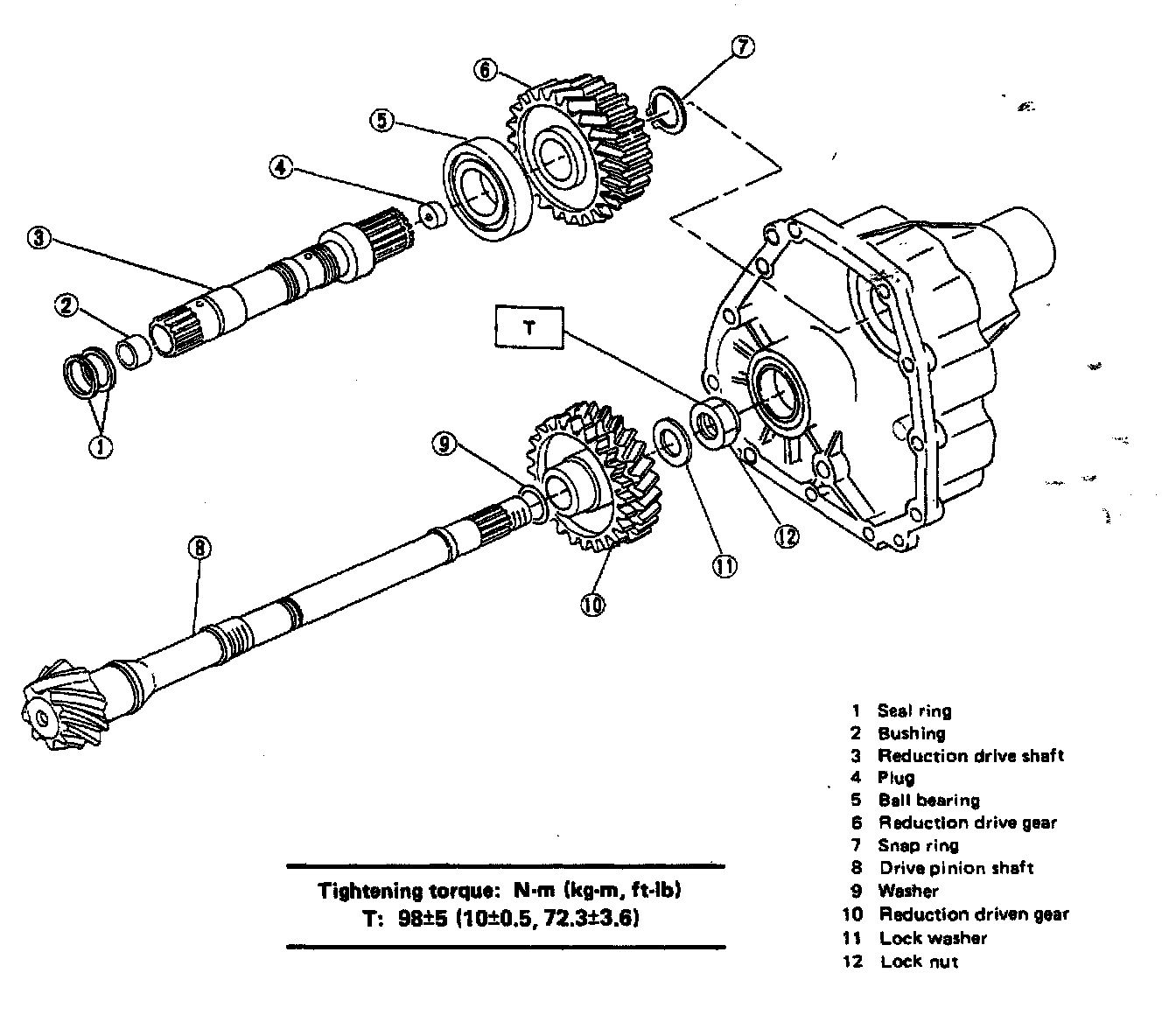

4-spd A/T, Transmission Reduction Gear:

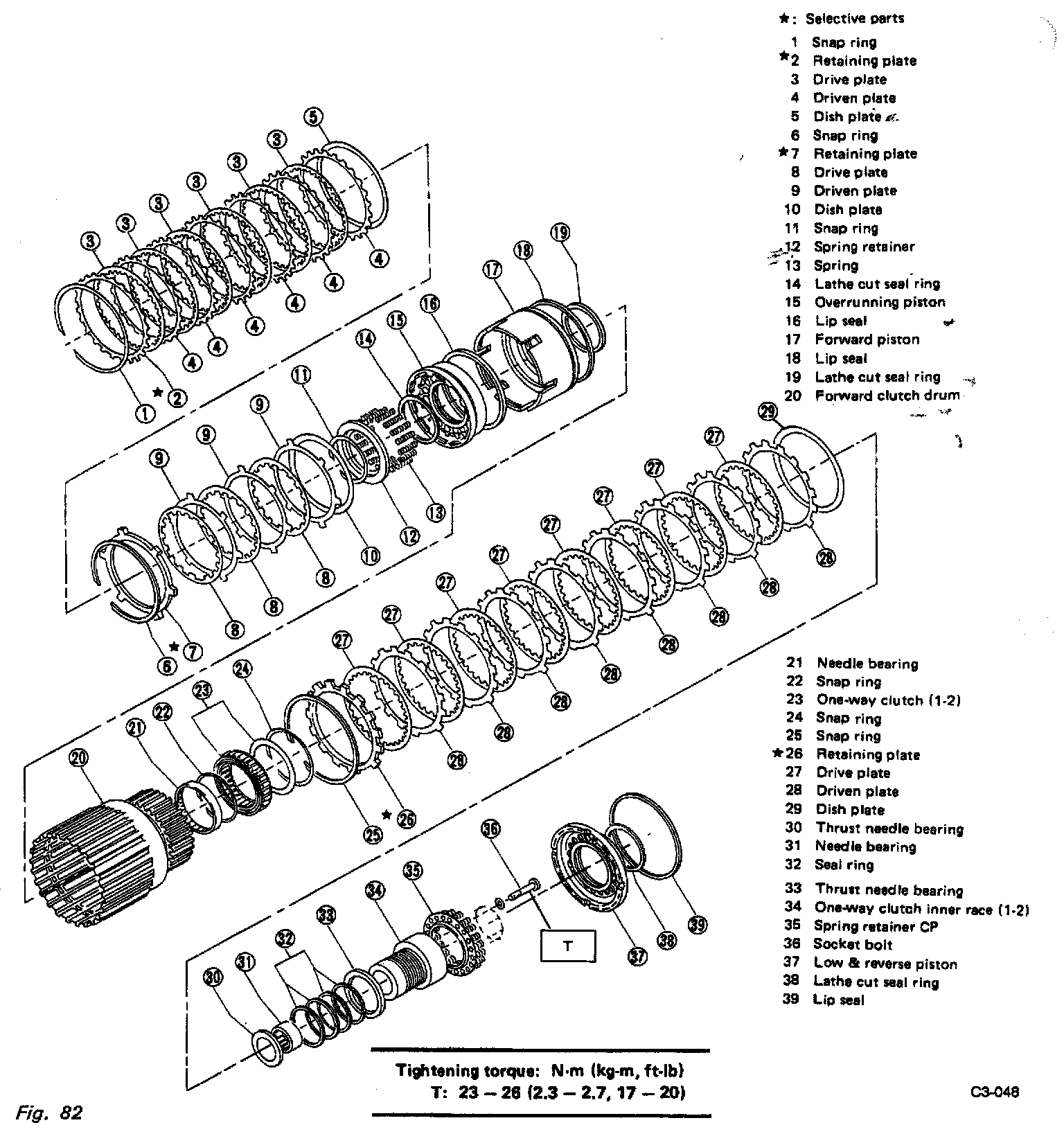

4-spd A/T, Transmission Forward Clutch And Low & Reverse Brake:

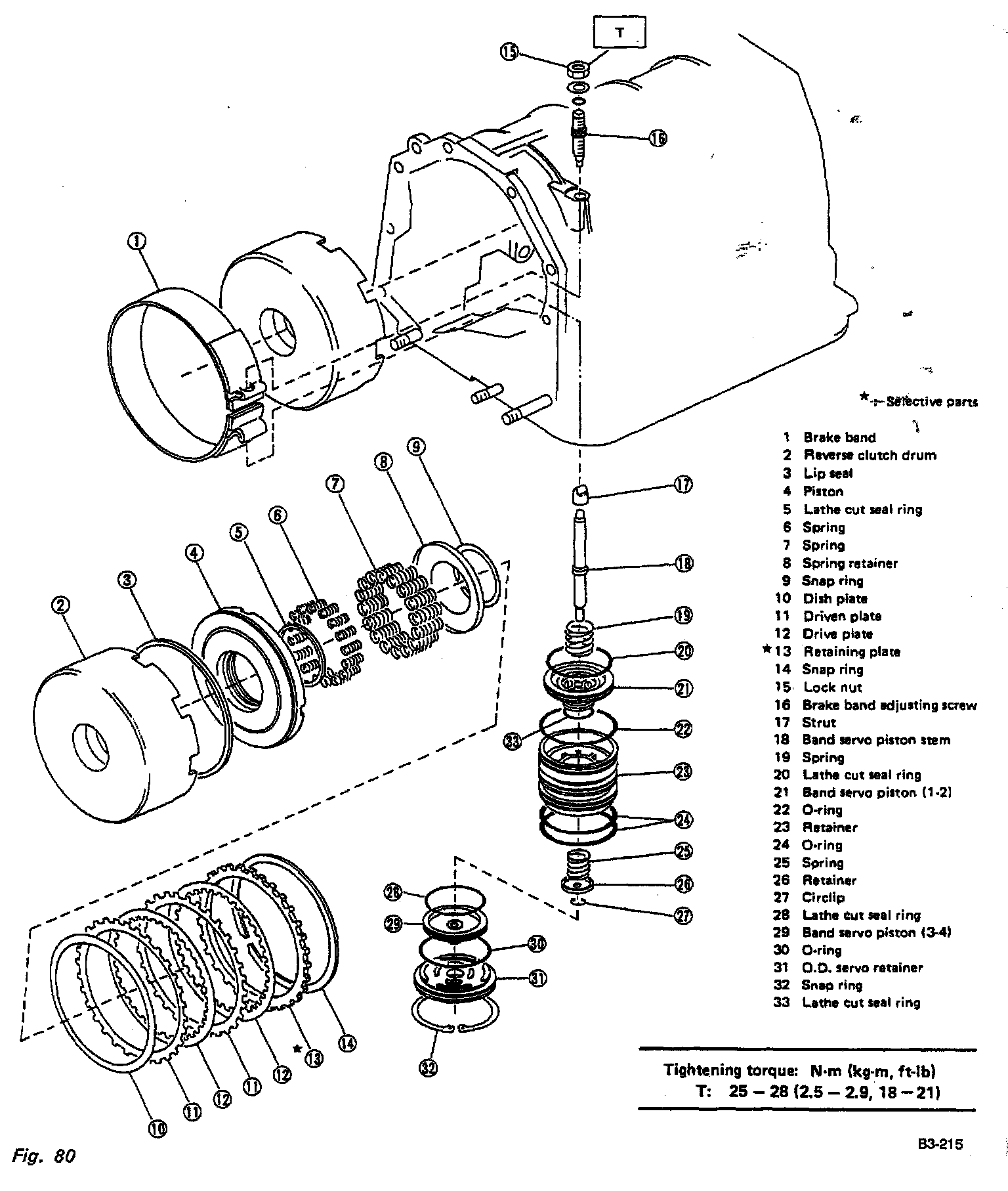

4-spd A/T, Transmission Reverse Clutch & Band Brake:

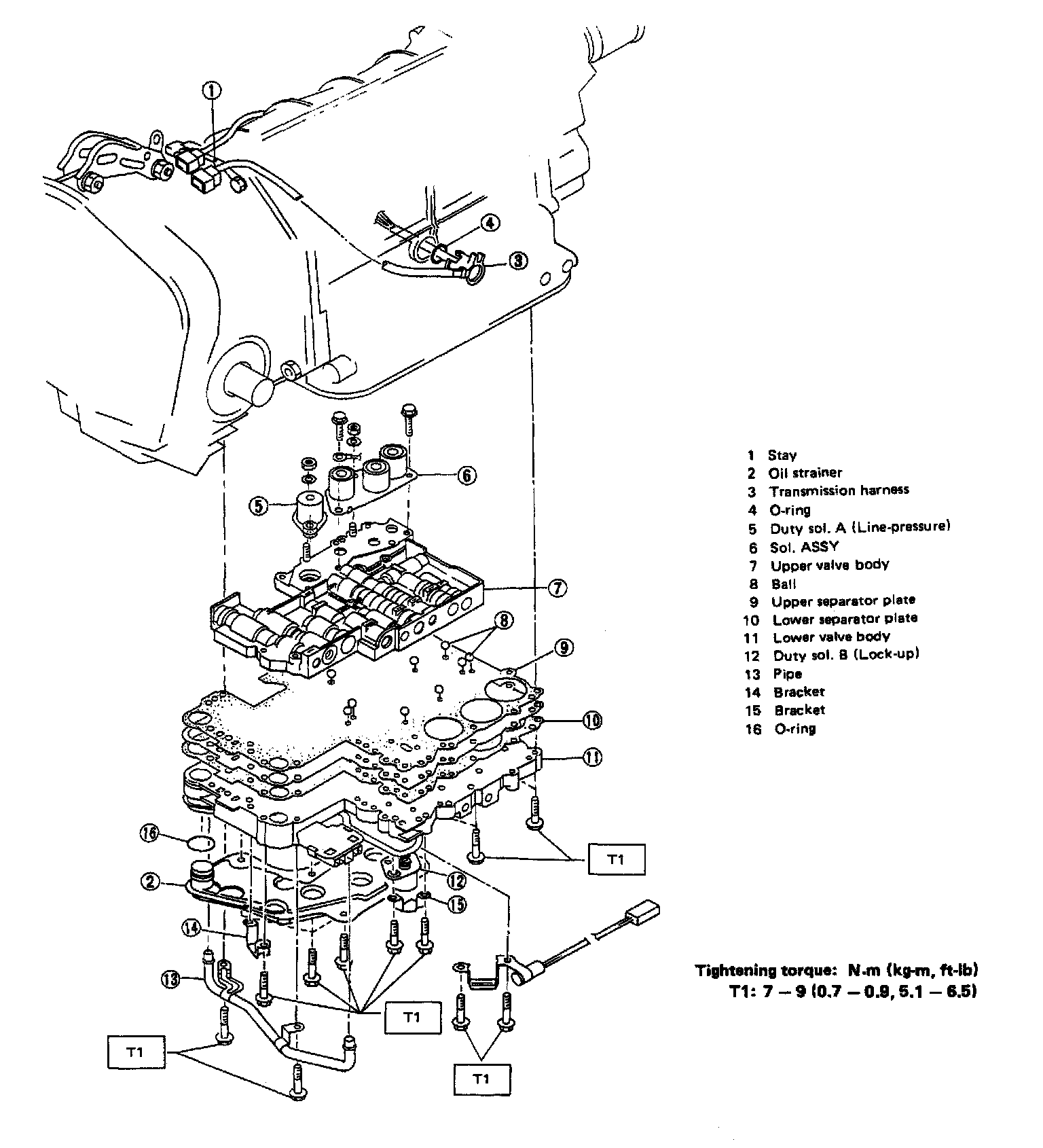

4-spd A/T, Transmission Control Valve & Harness:

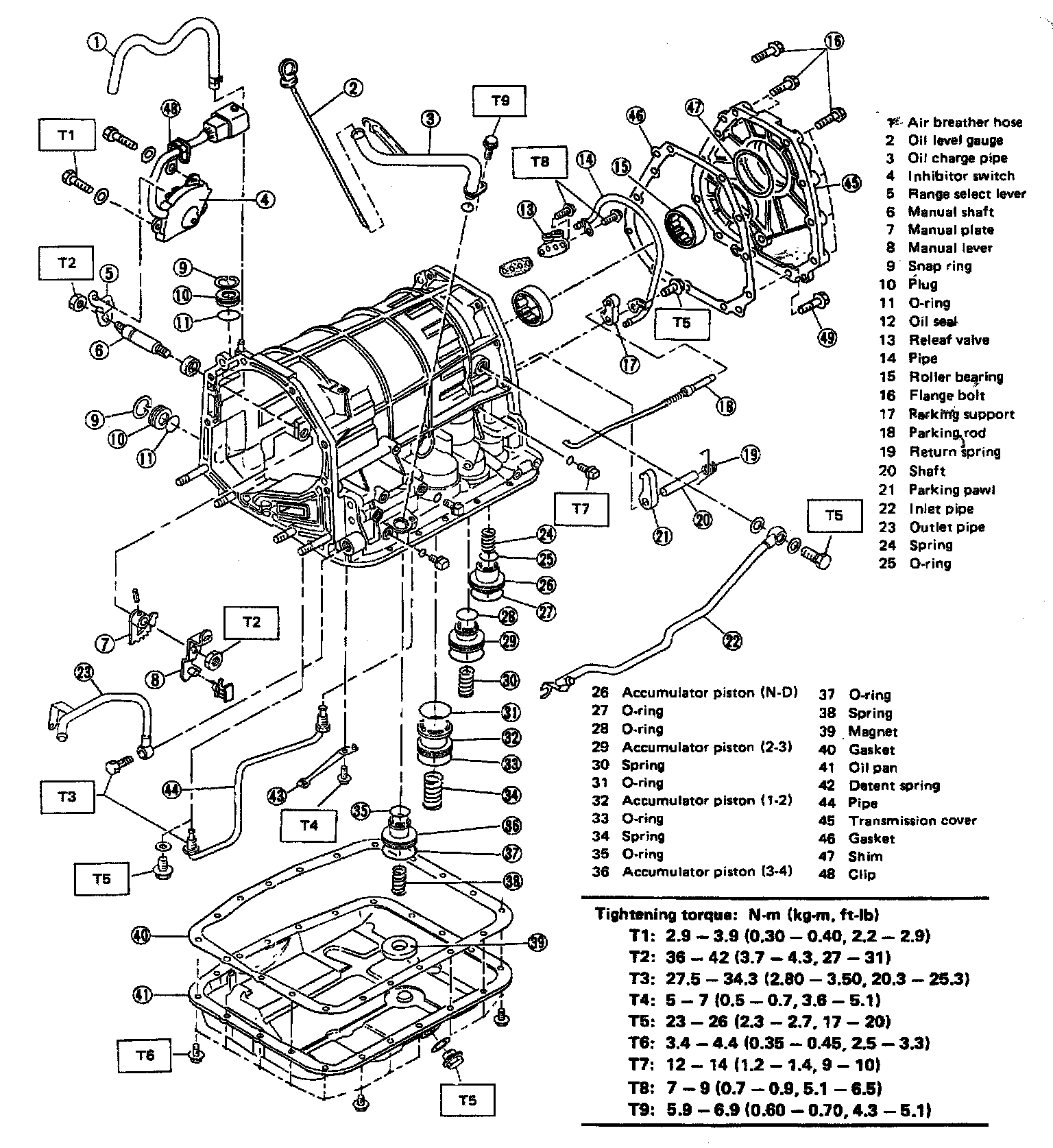

4-spd A/To, Transmission Case, Cover & Control Device:

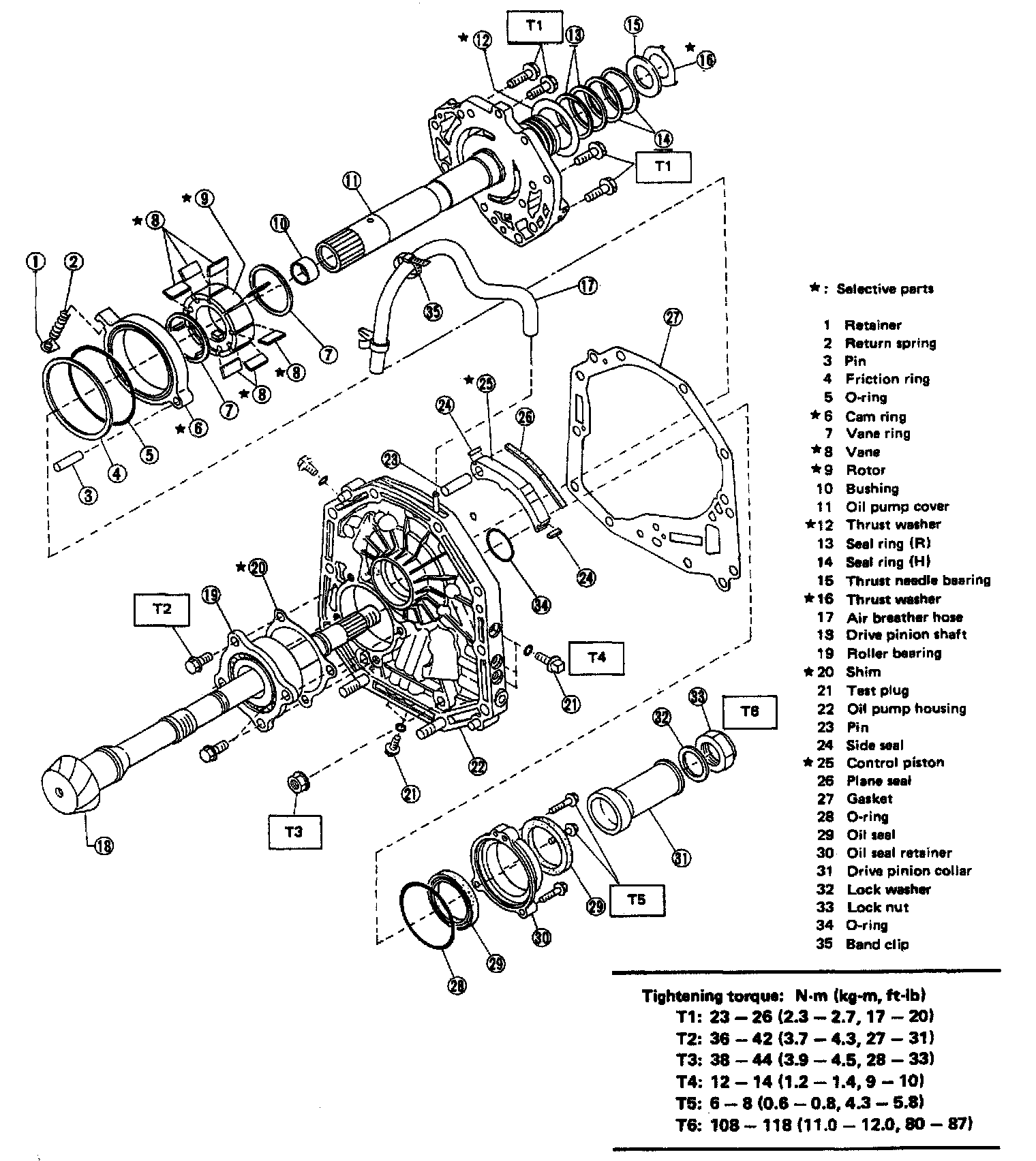

4-spd A/T, Transmission Oil Pump:

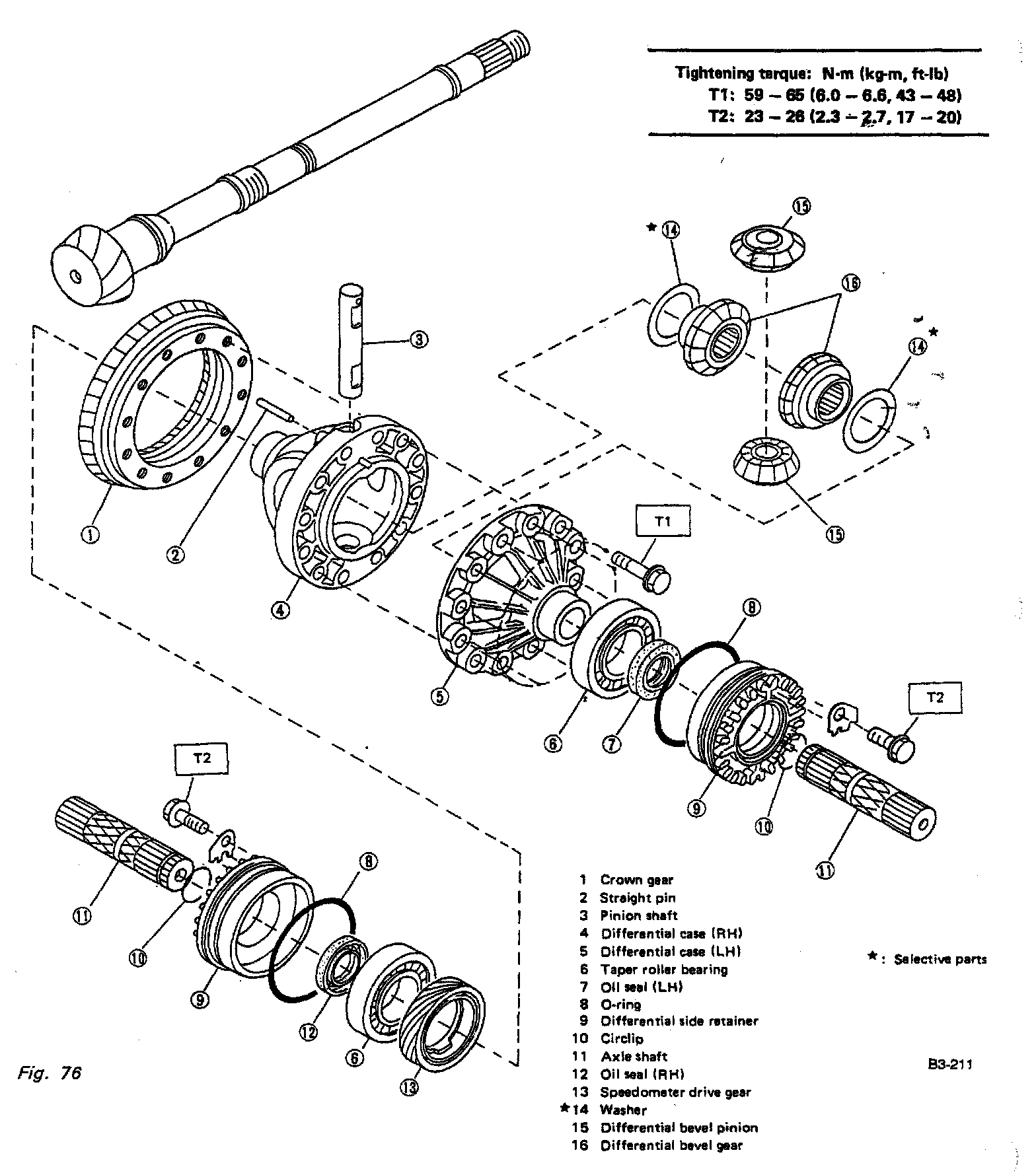

4-spd A/T, Differential Case:

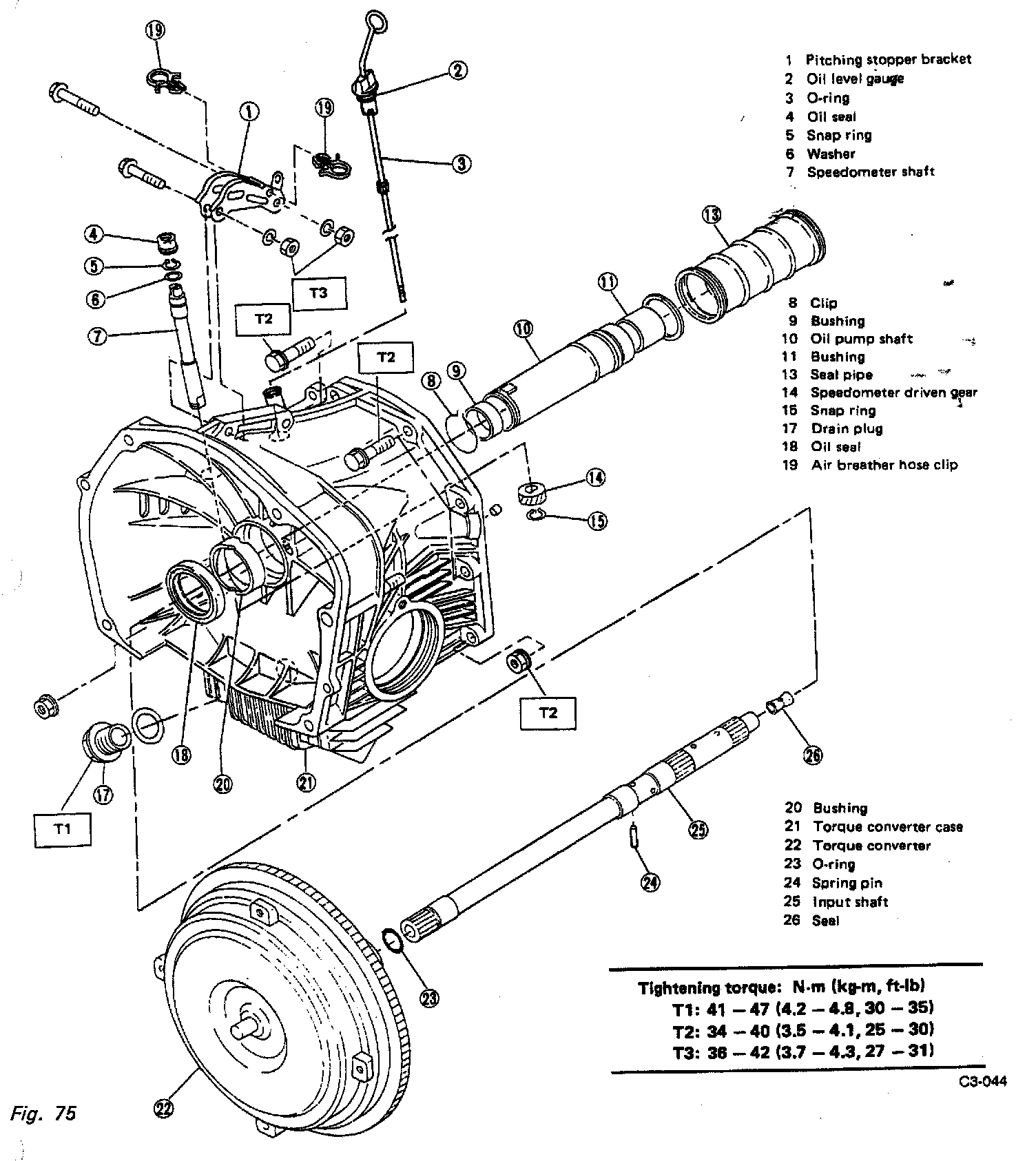

4-spd A/T, Torque Converter & Converter Case:

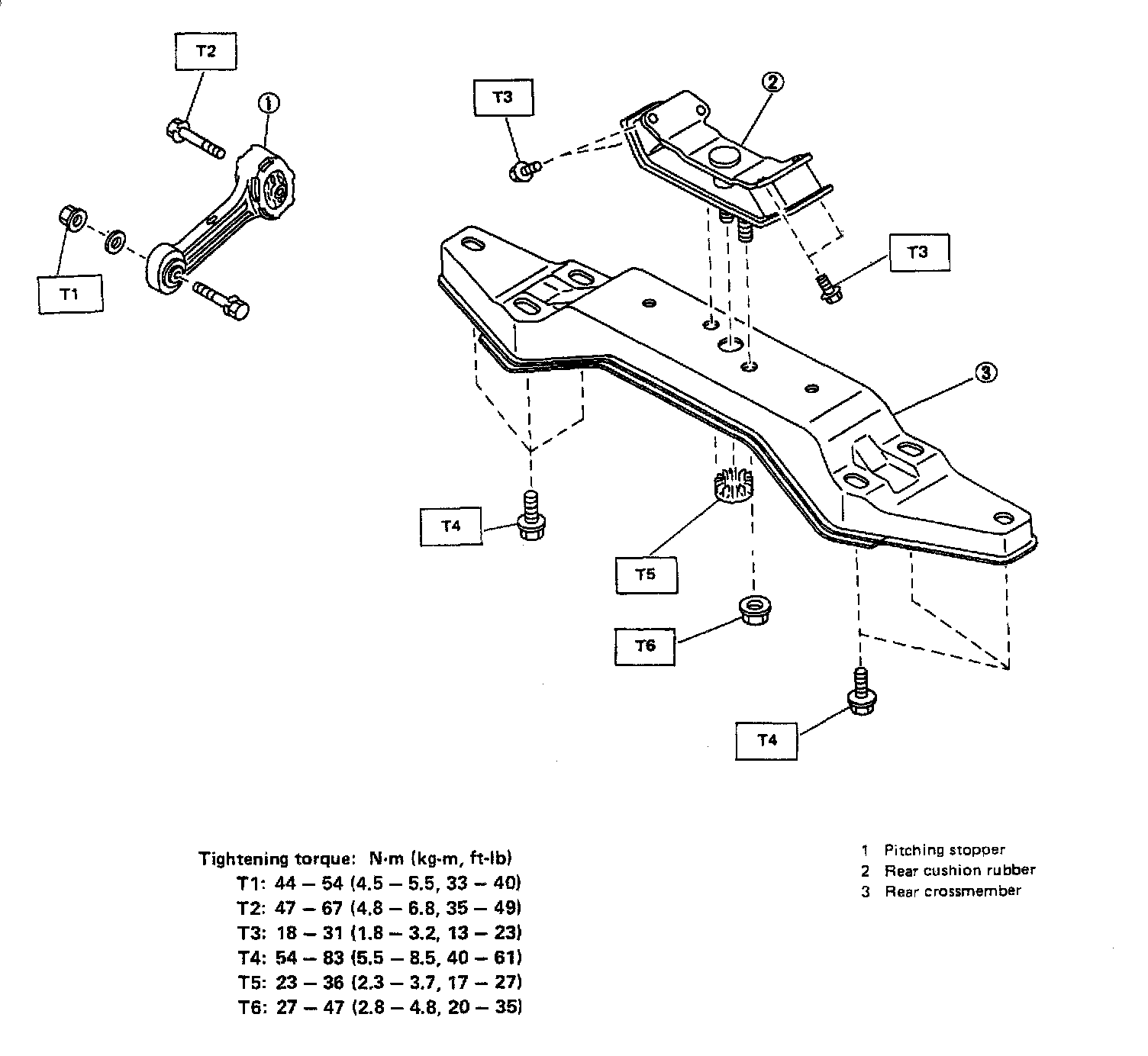

4-spd A/T, Transmission Mounting:
