System Switches

Use switch diagrams in following illustrations to check switch continuity. See Fig 1 and Fig 2 .

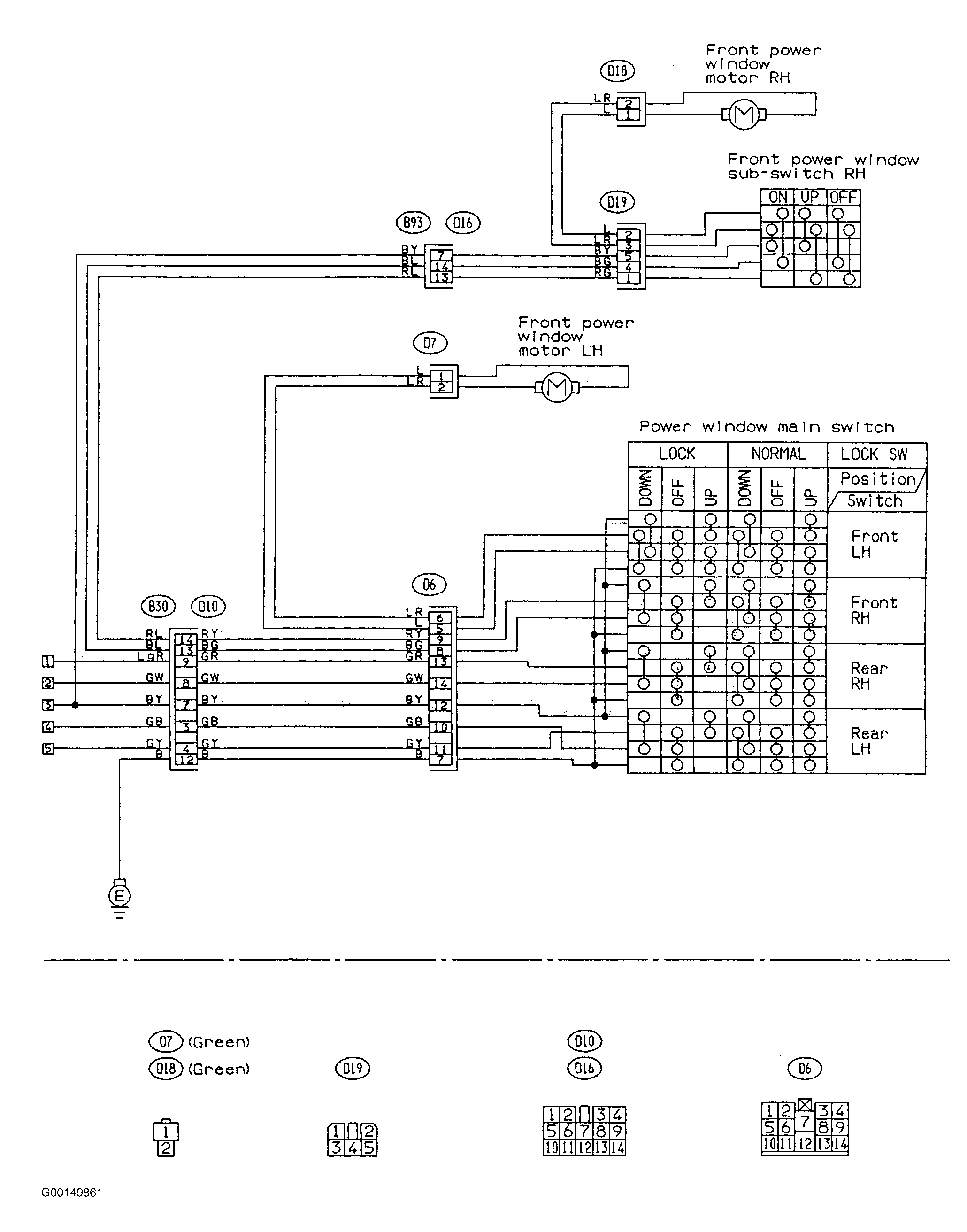

Fig 1: Wiring Diagram & Switch Testing (1 of 2)

Courtesy of SUBARU OF AMERICA, INC.

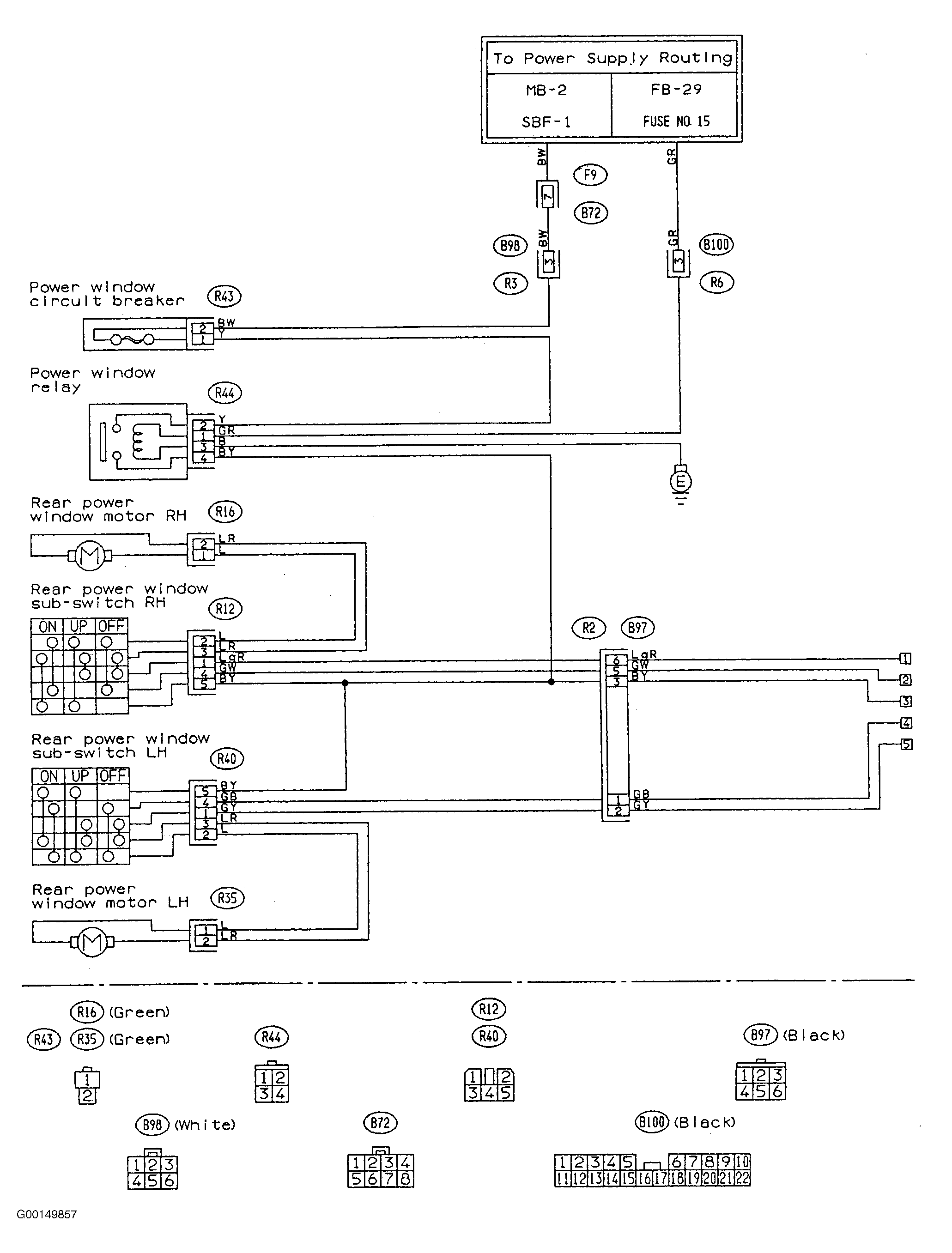

Fig 2: Wiring Diagram & Switch Testing (2 of 2)

Courtesy of SUBARU OF AMERICA, INC.
