Service Specifications

SPECIFICATIONS AND SERVICE DATA

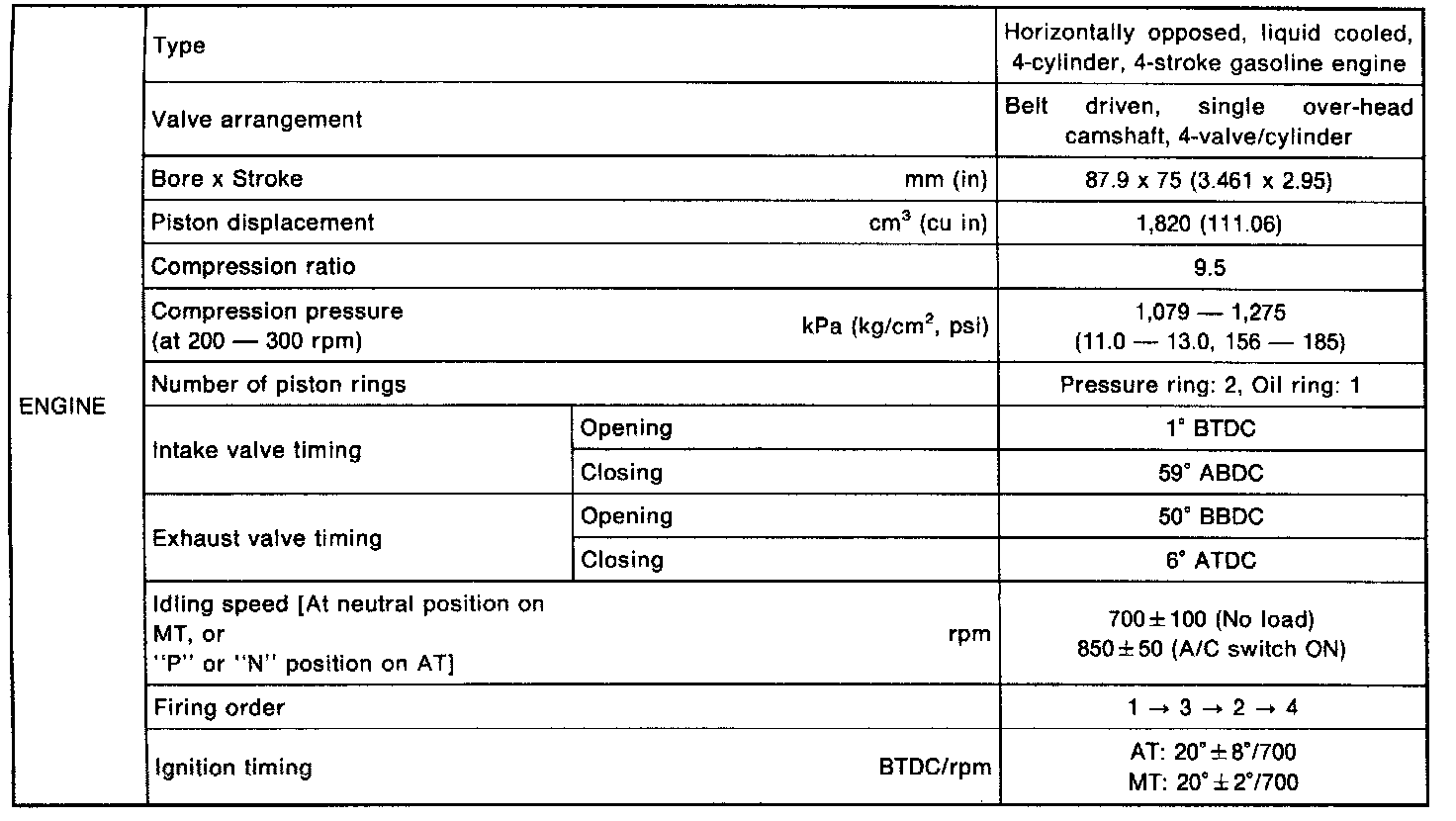

Engine Specifications

Part 1 Of 4:





Part 2 Of 4:





Part 3 Of 4:





Part 4 Of 4:

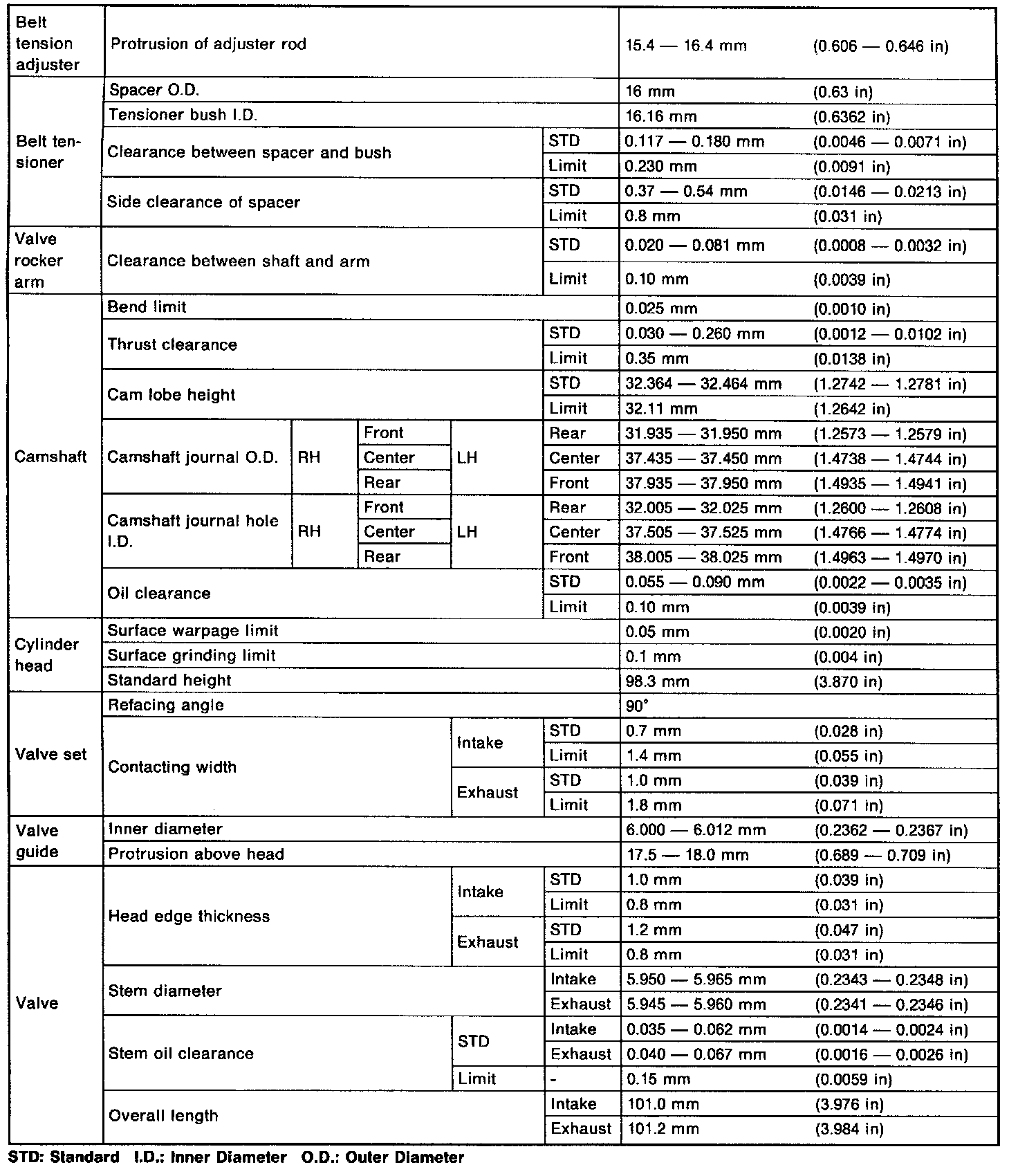

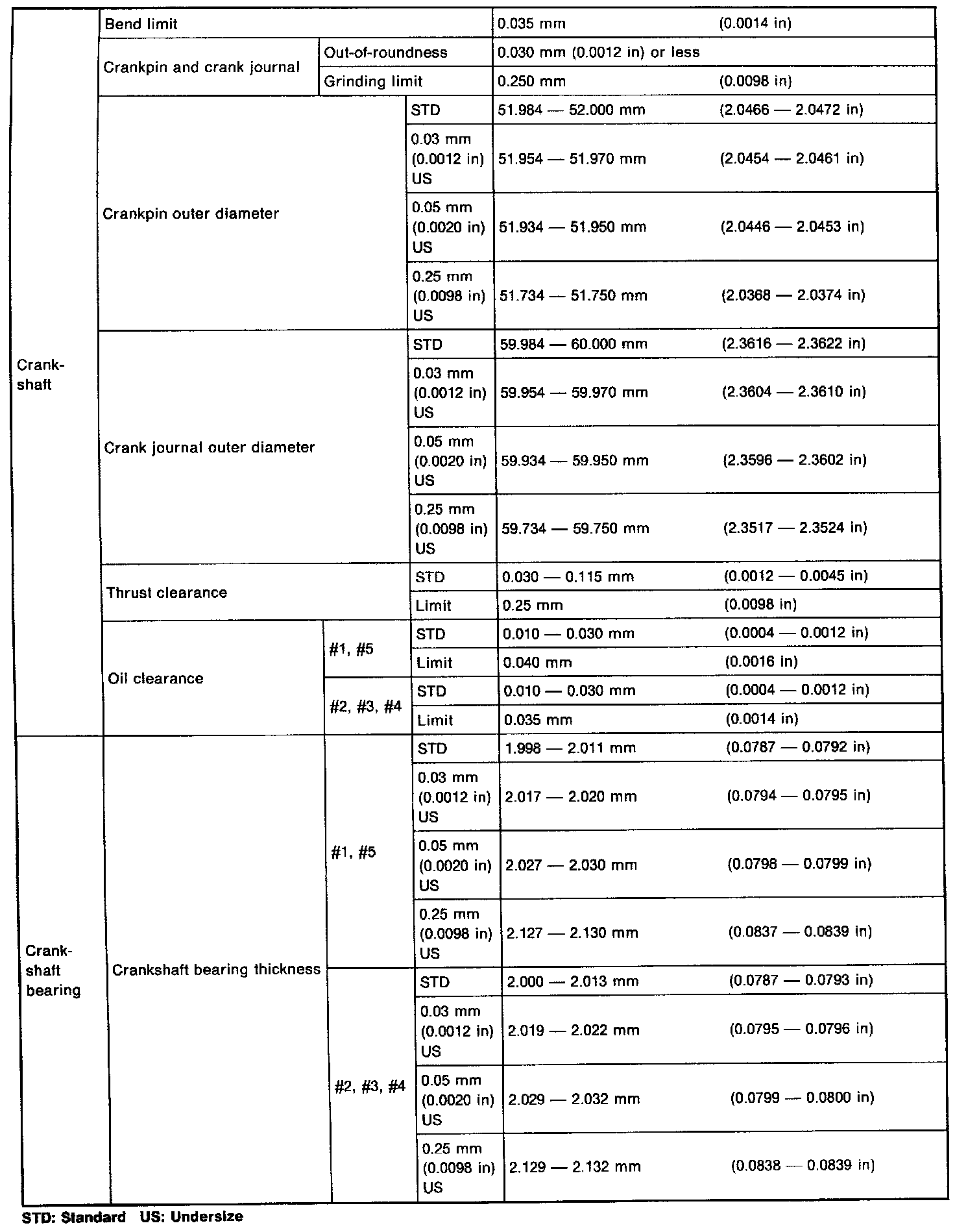

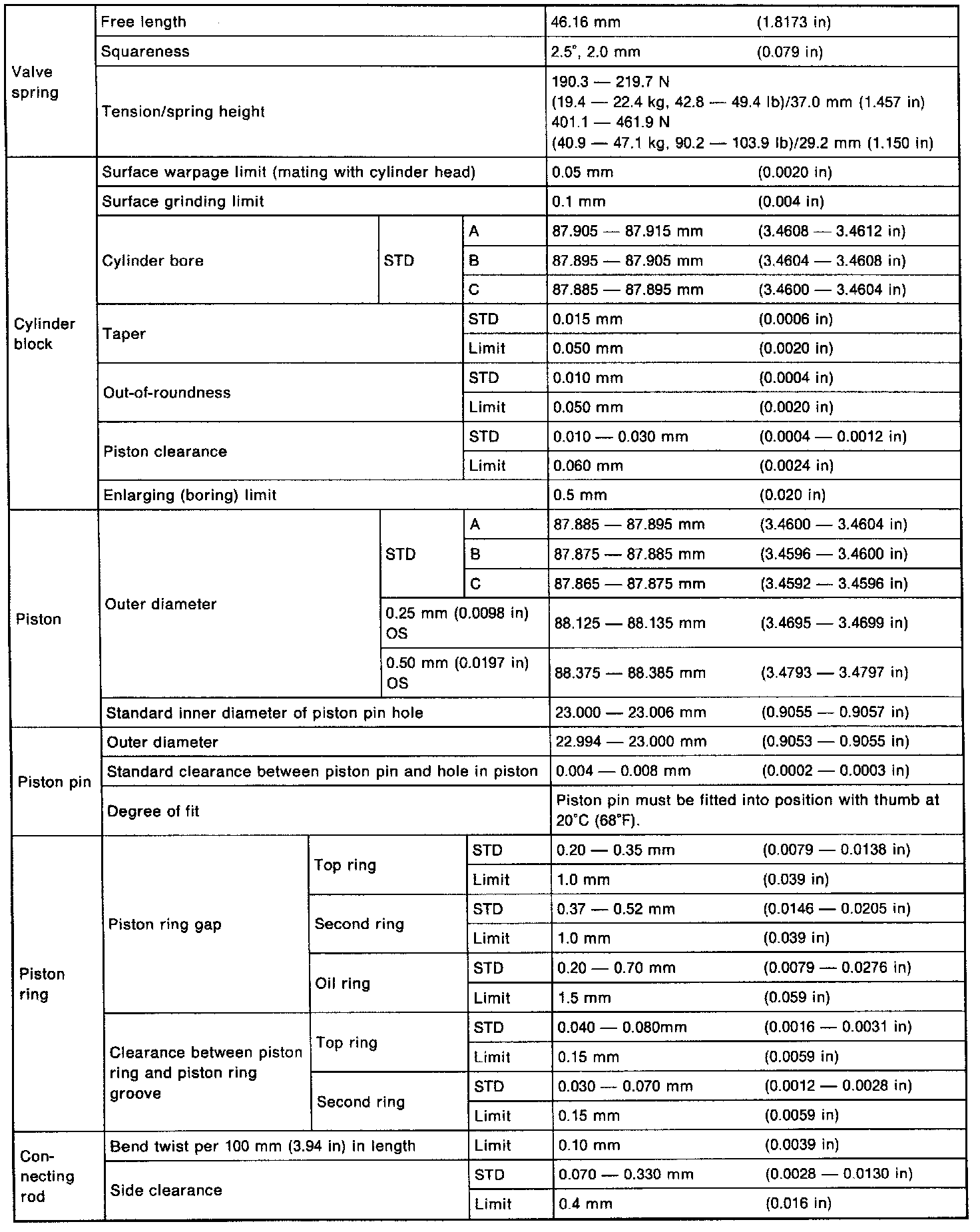

Engine Service Data

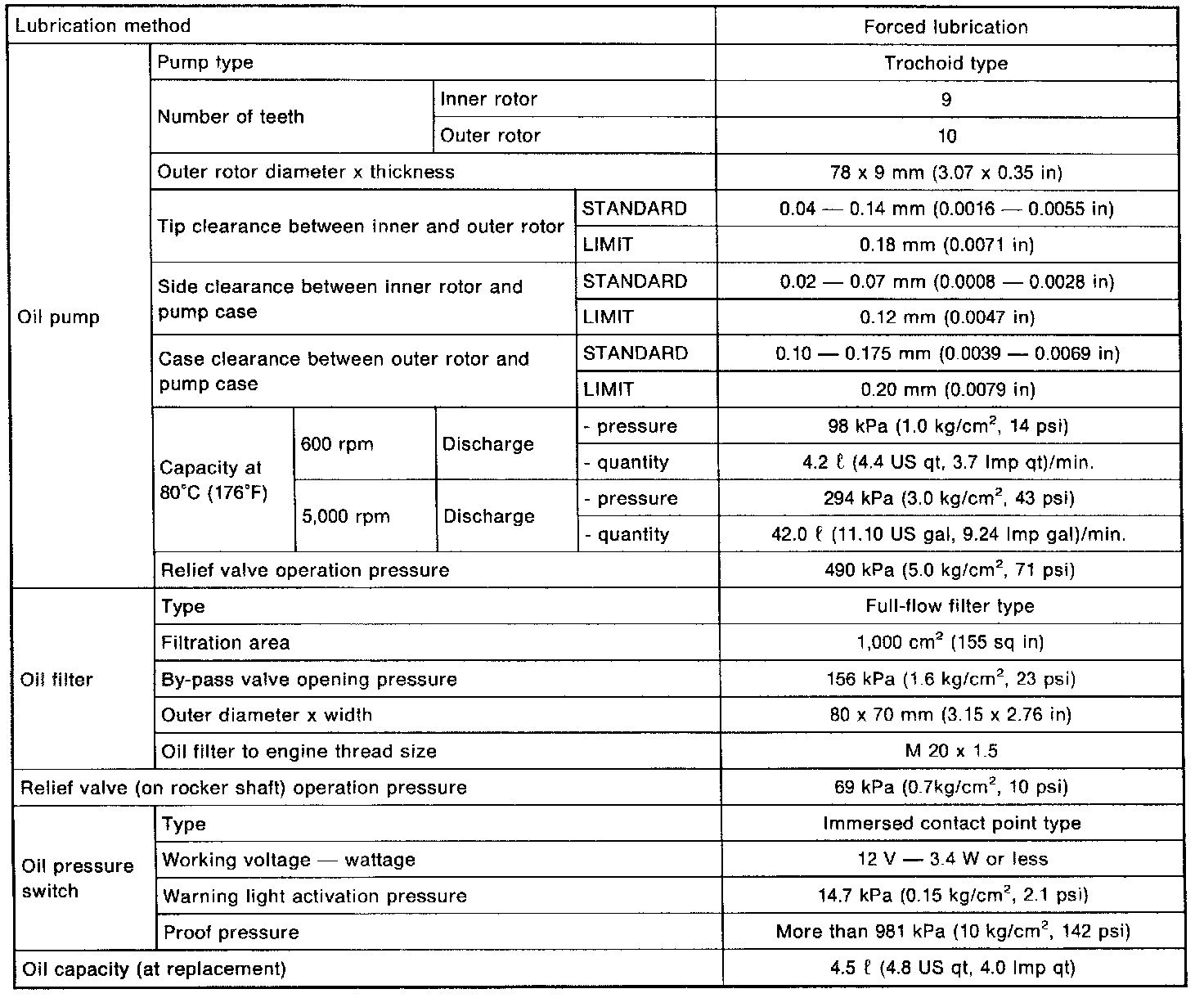

Oil Pump Specifications

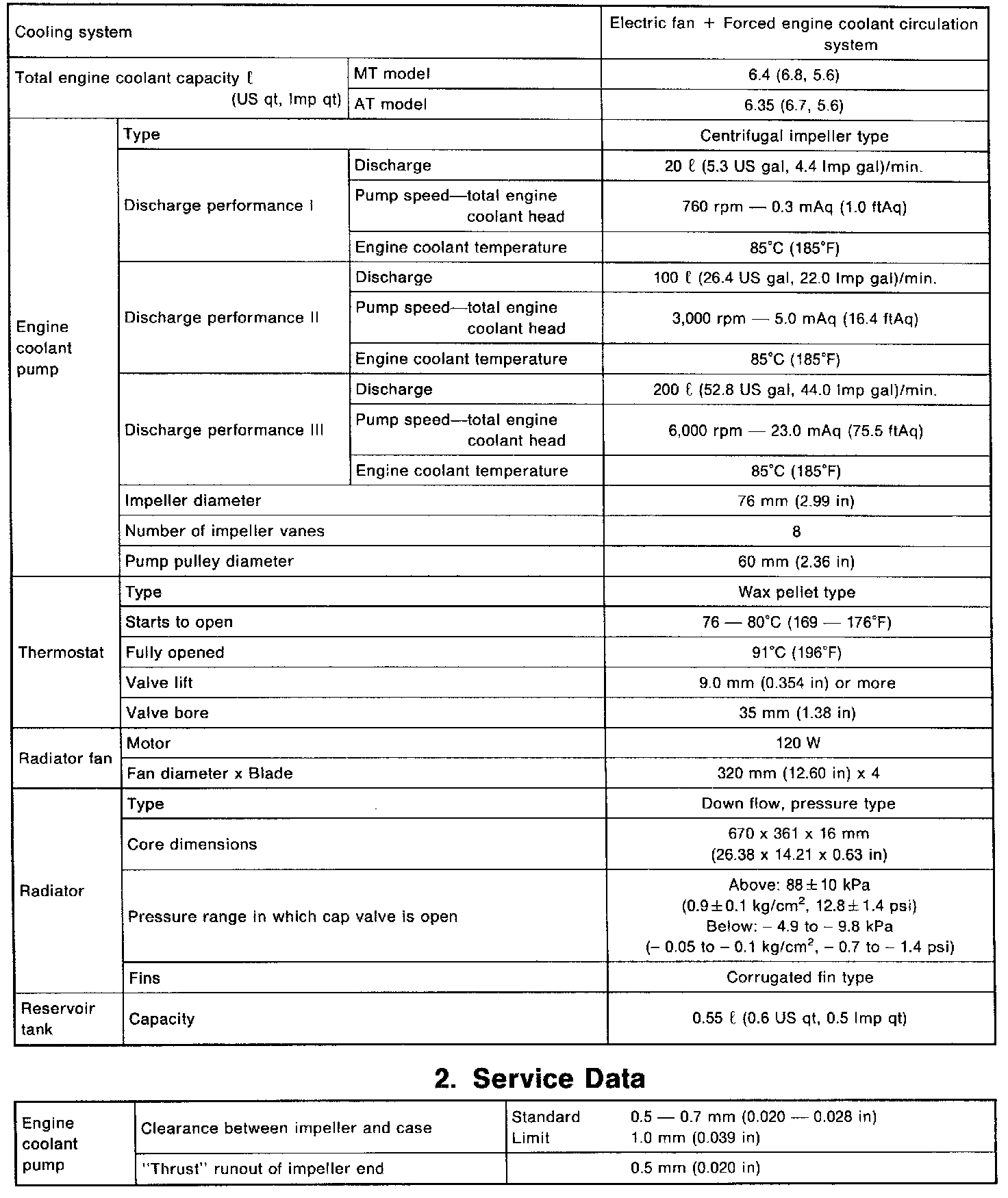

Cooling system
