Individual Window Fails To Operate

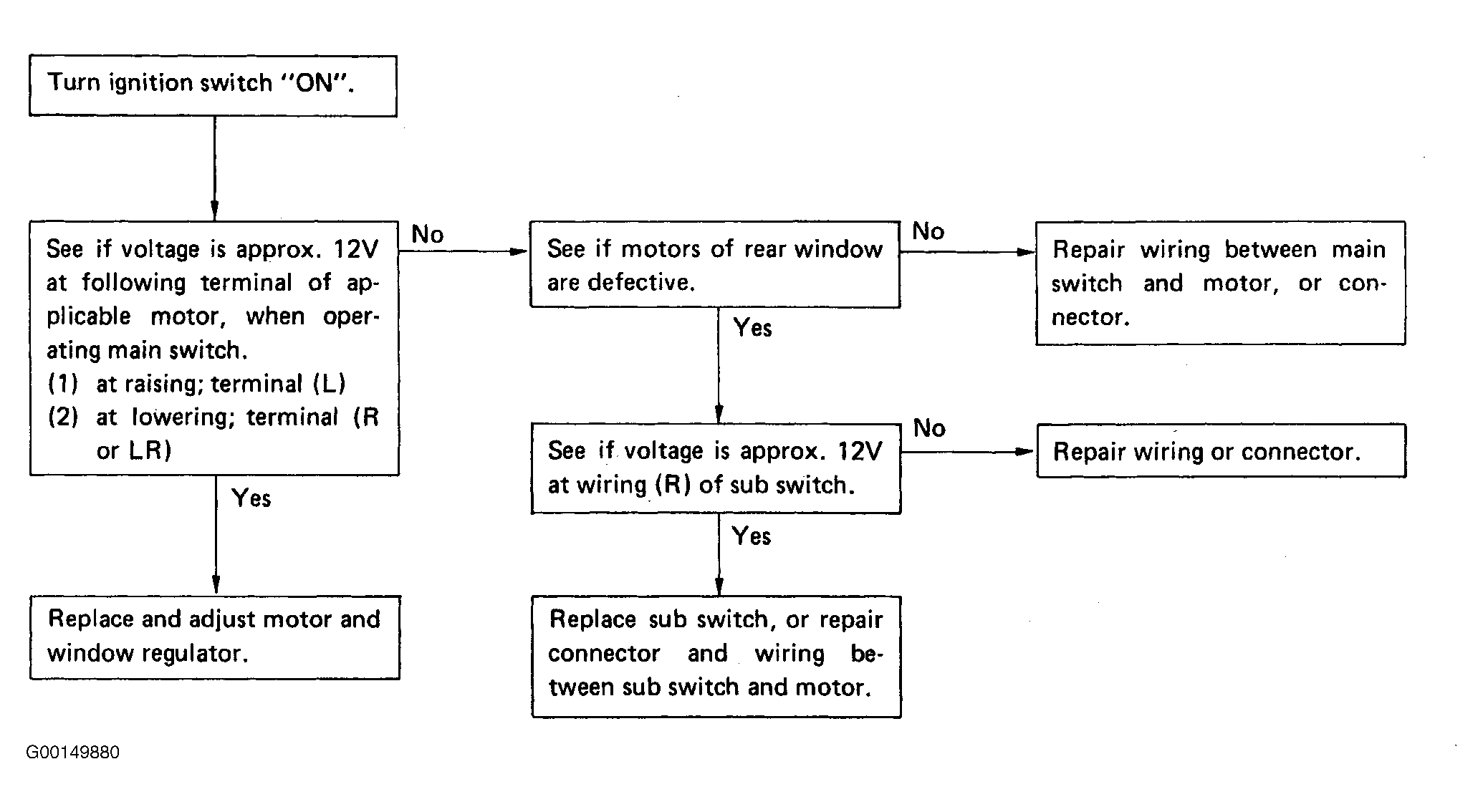

Fig 1: Testing Single Power Window Motor
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
