Power Window Switch
Remove control switch from door panel. Using ohmmeter, check continuity of switch. For switch terminal identification, see Fig 1
or Fig 3
.
Replace appropriate switch as necessary if switch continuity is not as specified. See Fig 2
or Fig 4
.
Fig 1: Power Window Main Switch Connector Terminals
Courtesy of SUBARU OF AMERICA, INC.

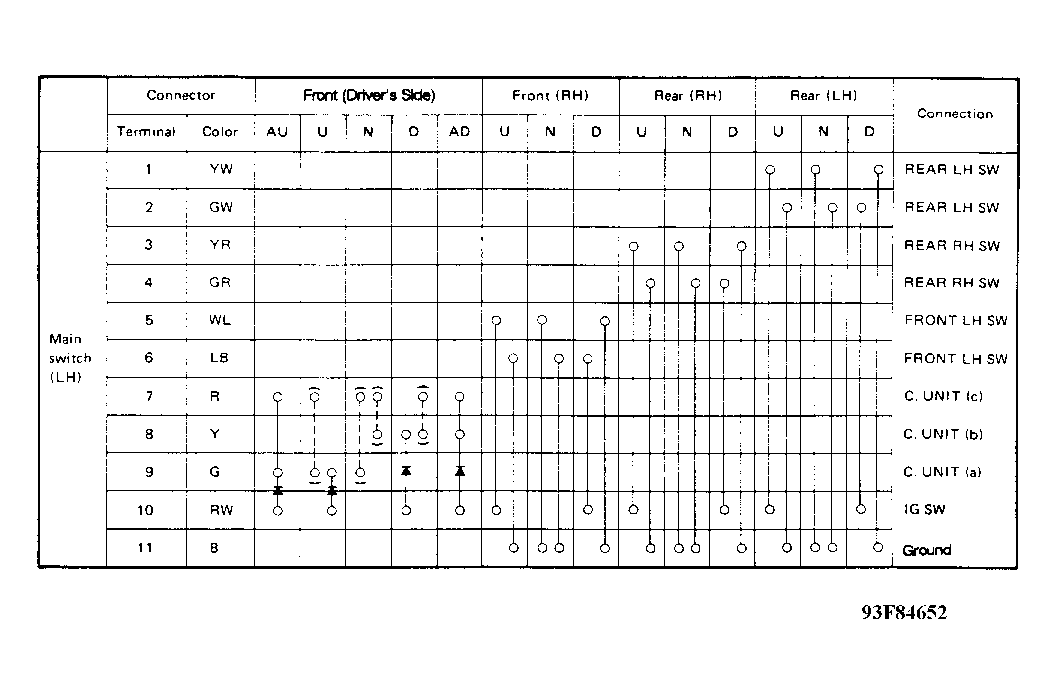

Fig 2: Power Window Main Switch Continuity Chart
Courtesy of SUBARU OF AMERICA, INC.

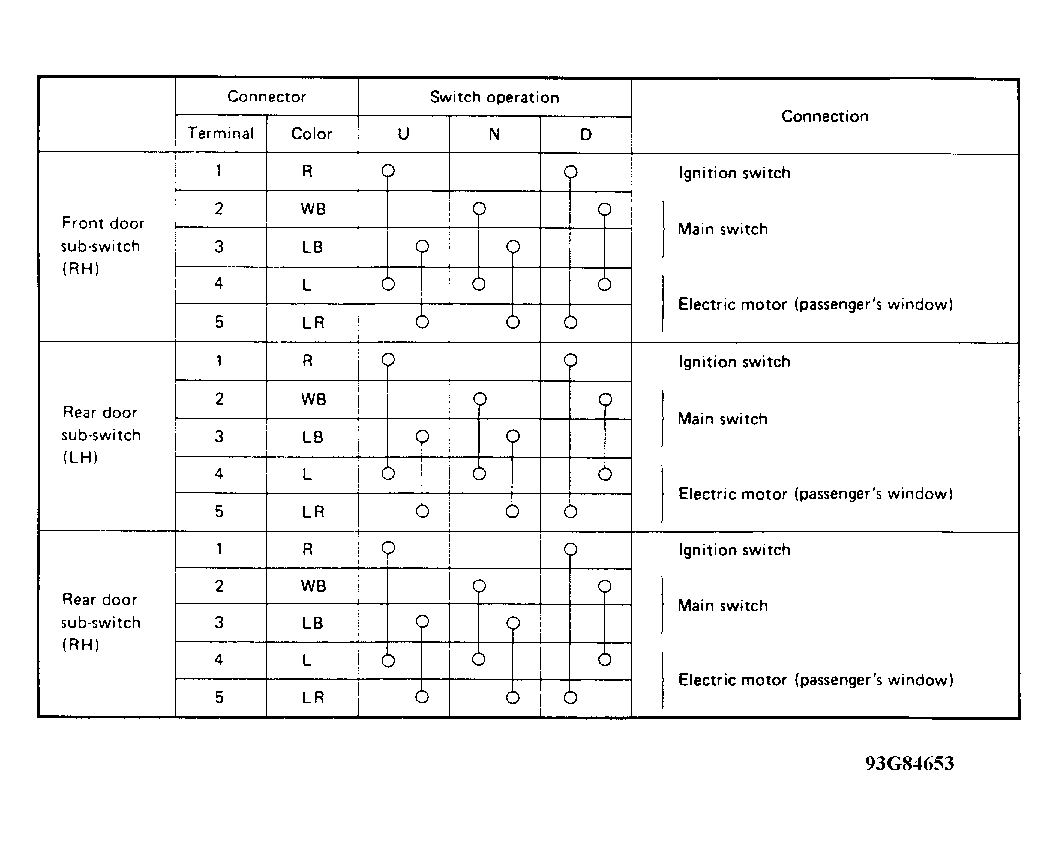

Fig 3: Power Window Sub-Switch Connector Terminals
