Code 12 - Starter Switch

Fig 1: Code 12 - Wiring Schematic

Courtesy of SUBARU OF AMERICA, INC.

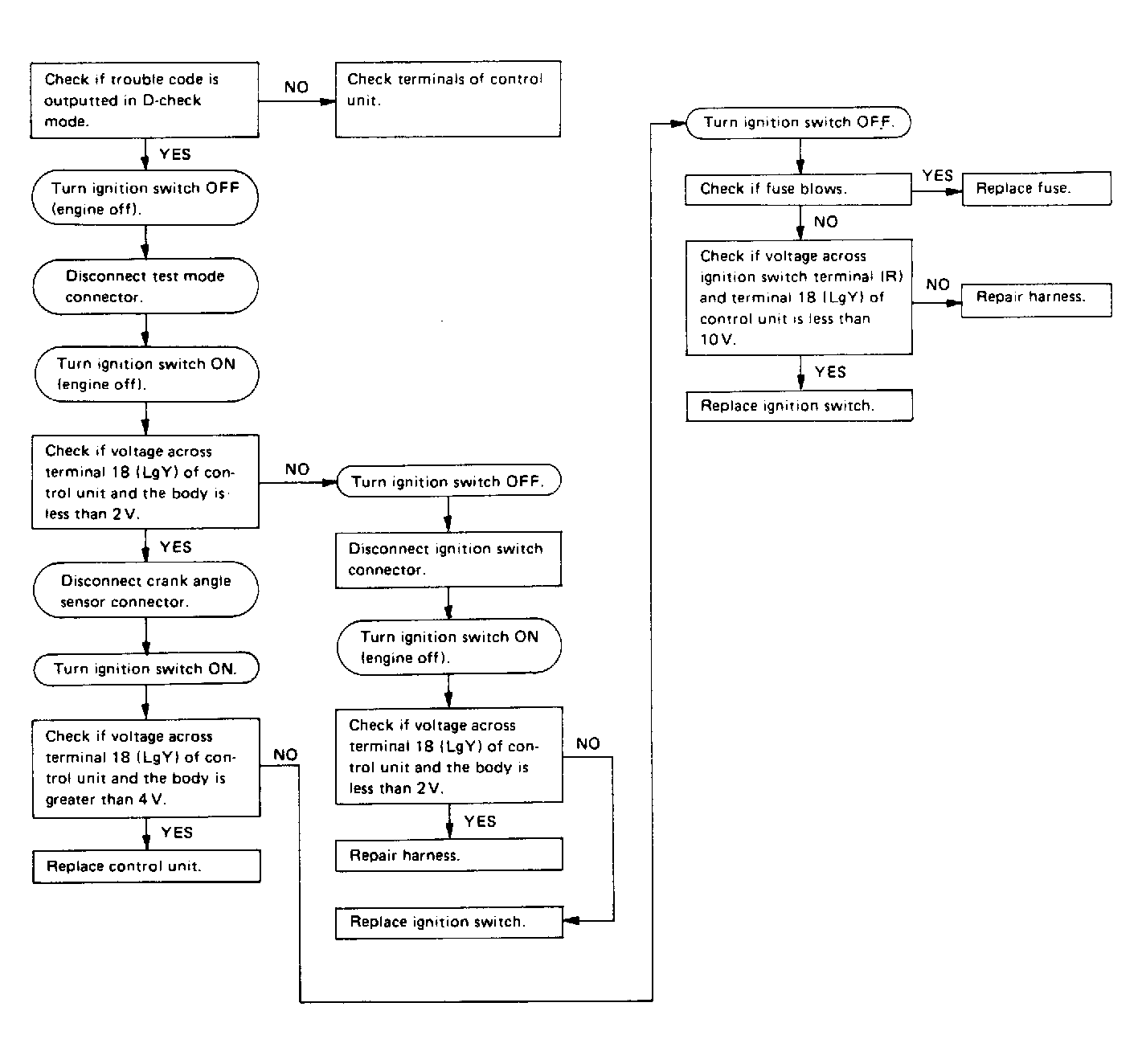

Fig 2: Code 12 - Diagnostic Flowchart

Courtesy of SUBARU OF AMERICA, INC.
