Code 24 - Air Control Valve

Fig 1: Code 24 - Wiring Schematic

Courtesy of SUBARU OF AMERICA, INC.

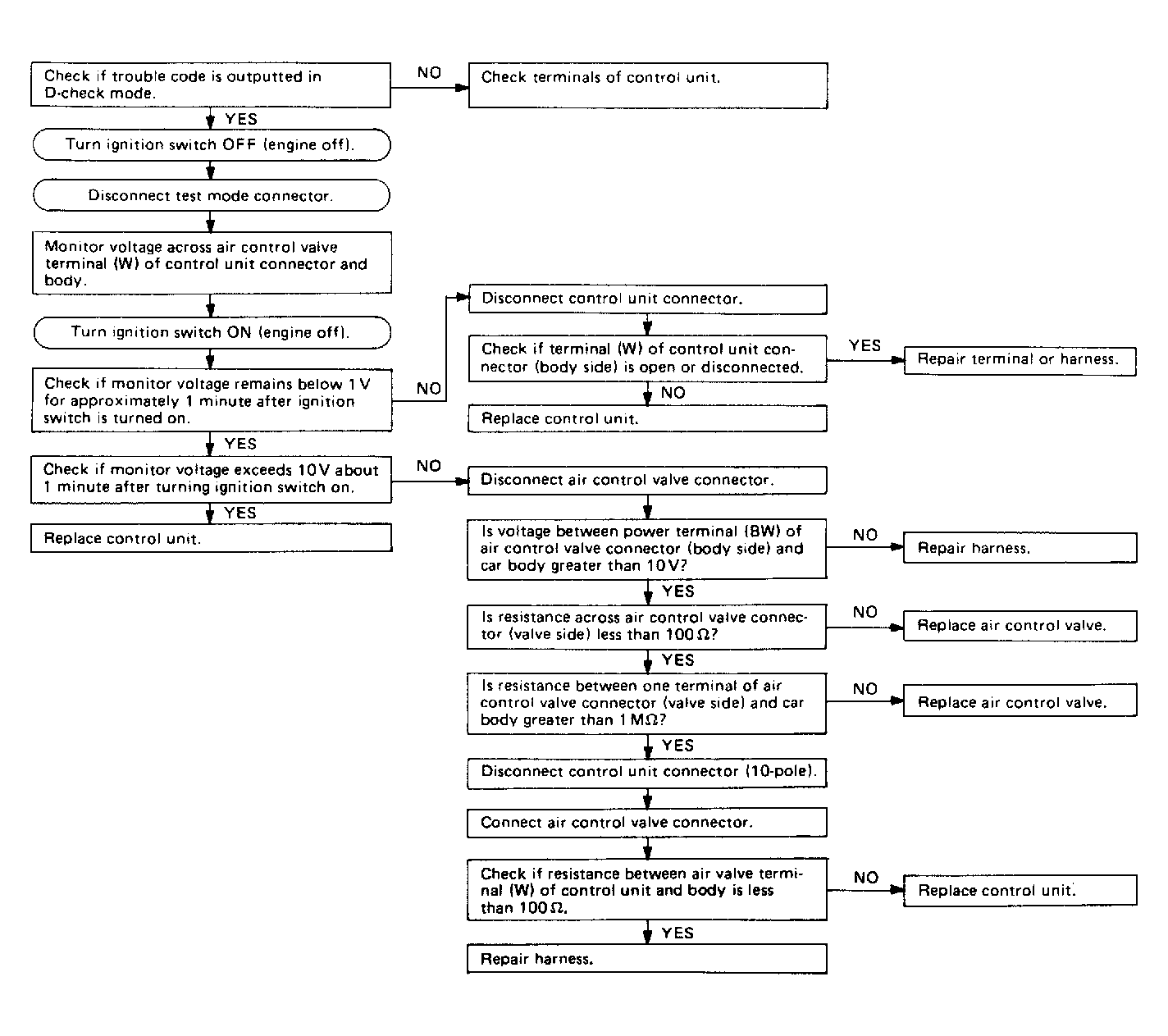

Fig 2: Code 24 - Diagnostic Flowchart
