Code 32 - Oxygen (O2) Sensor

Fig 1: Code 32 - Wiring Schematic

Courtesy of SUBARU OF AMERICA, INC.

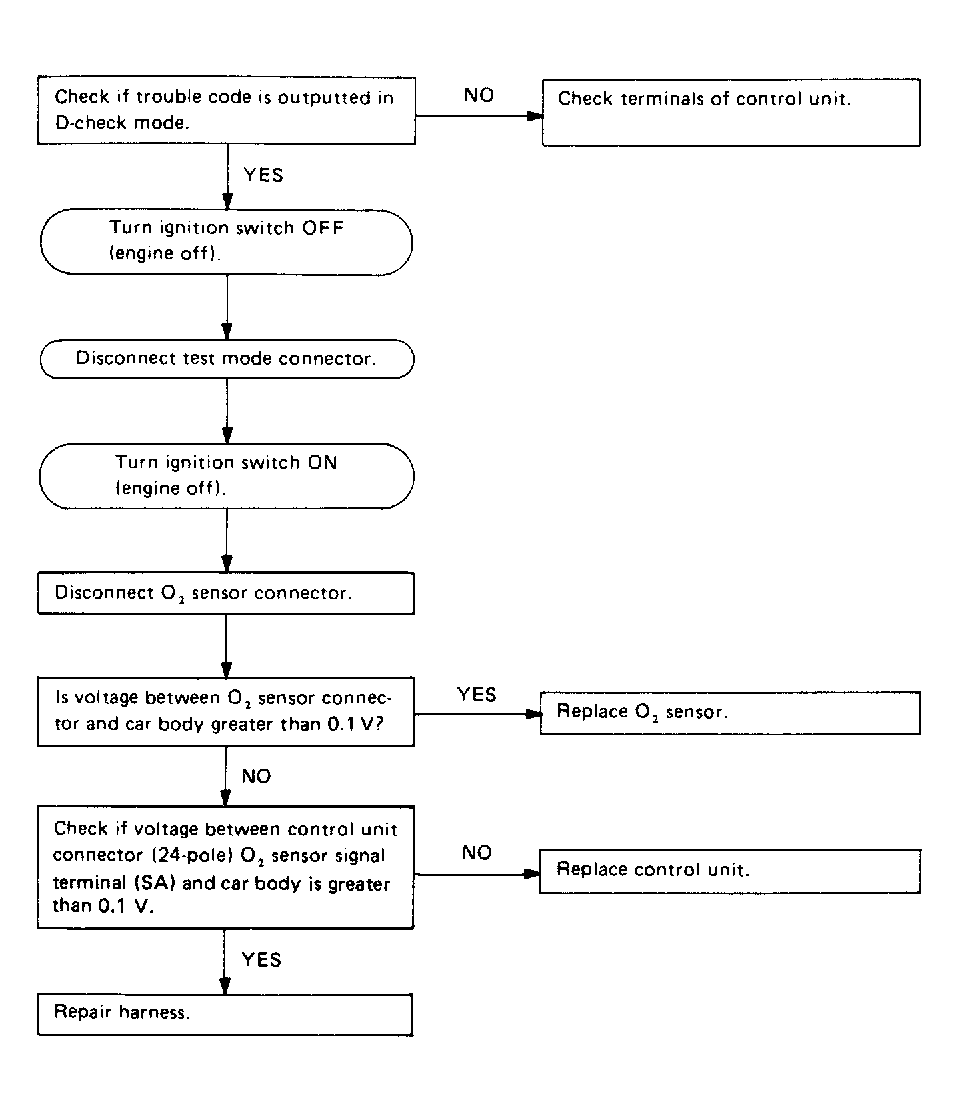

Fig 2: Code 32 - Diagnostic Flowchart

Courtesy of SUBARU OF AMERICA, INC.
