Trouble Shooting: Symptoms

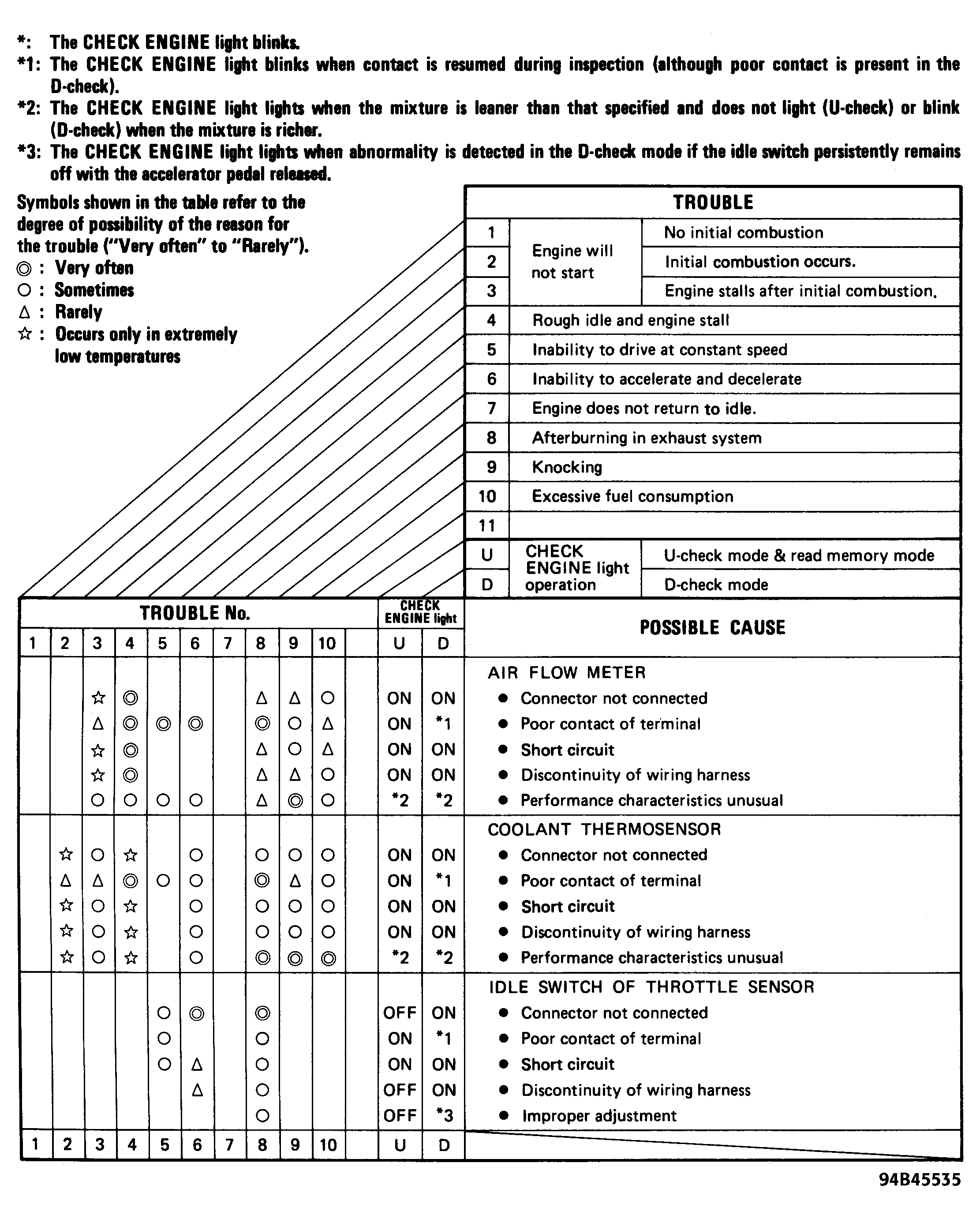

Fig 1: Symptom Diagnosis (1 Of 3)
G94B45535Courtesy of SUBARU OF AMERICA, INC.

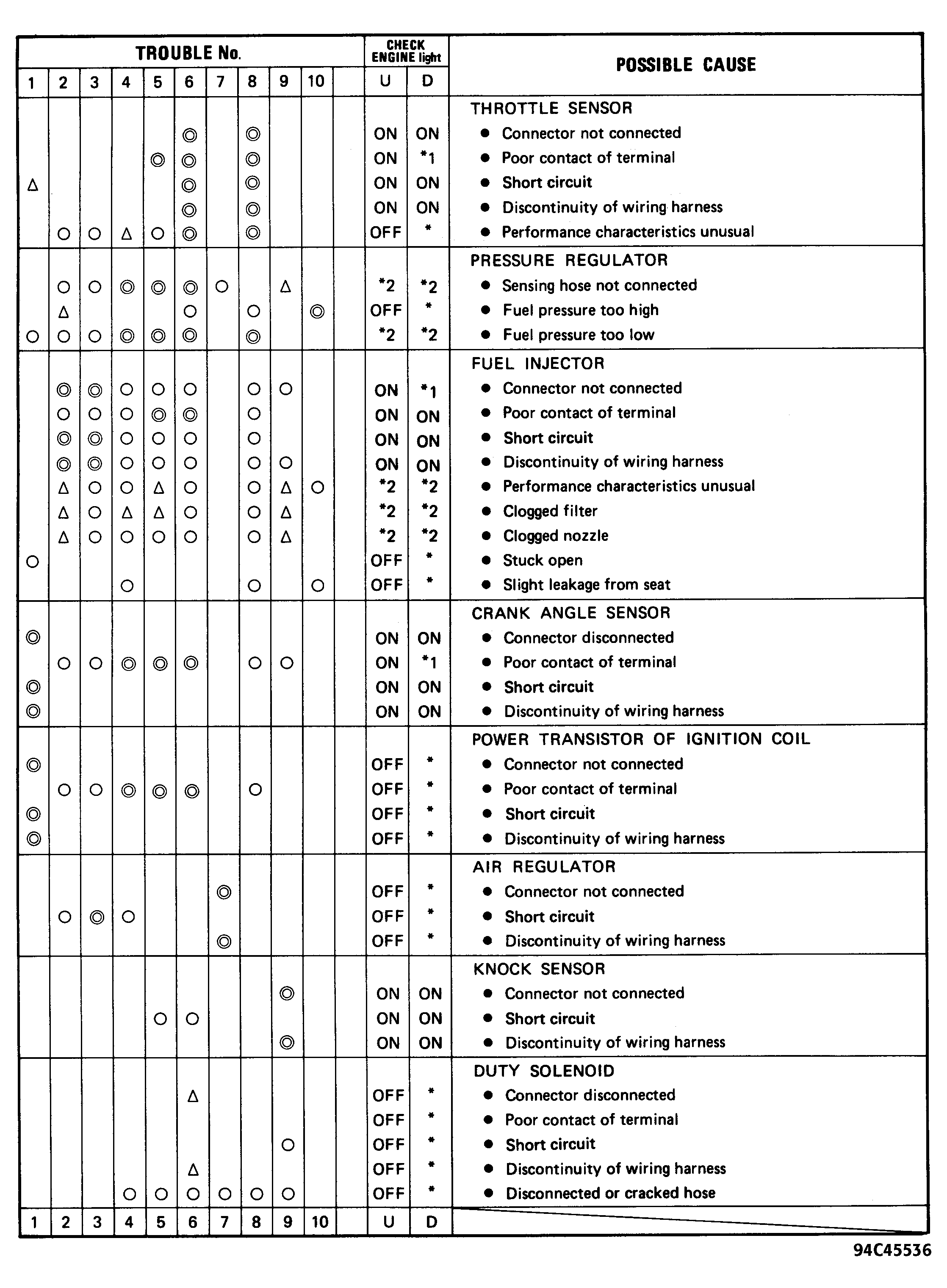

Fig 2: Symptom Diagnosis (2 Of 3)
G94C45536Courtesy of SUBARU OF AMERICA, INC.

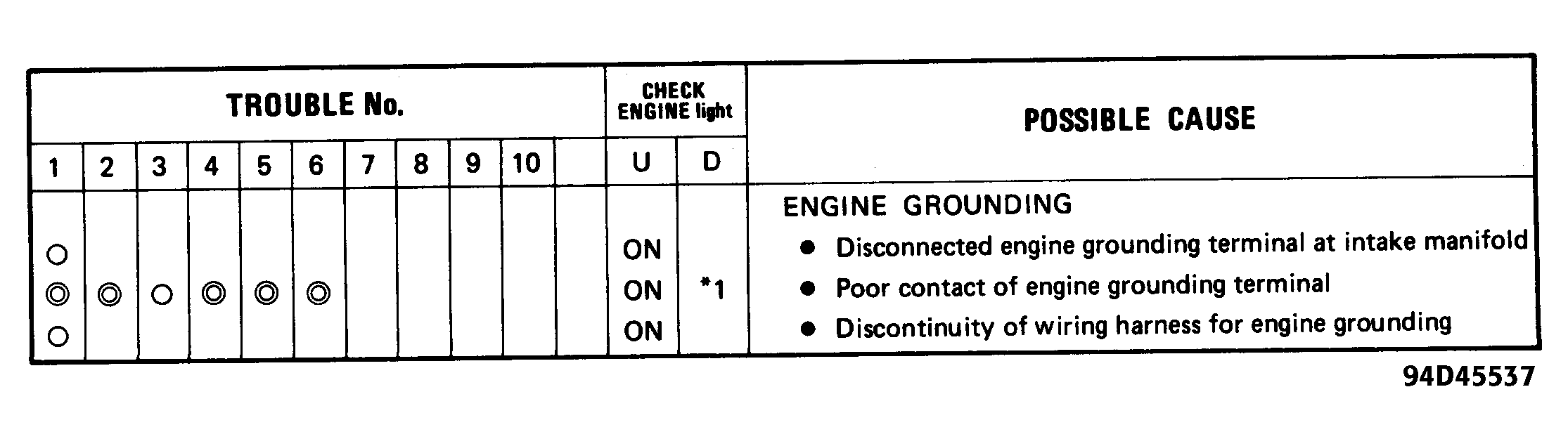

Fig 3: Symptom Diagnosis (3 Of 3)
G94D45537Courtesy of SUBARU OF AMERICA, INC.
