Temperature Control Cable

To adjust temperature control cable at heater control panel, loosen temperature control cable clip. Set temperature control lever to COLD position. Pull temperature control cable away from temperature control lever, install temperature control cable clip. See Fig 1 .

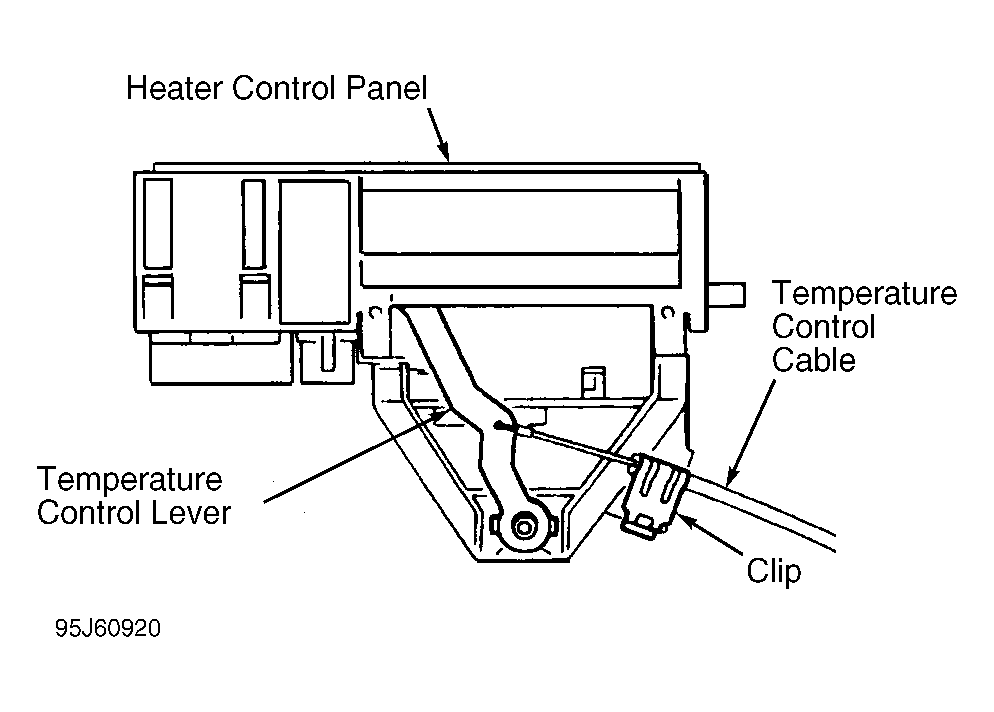

Fig 1: Adjusting Temperature Control Cable
G95J60920Courtesy of SUBARU OF AMERICA, INC.
