Ignition Timing: Adjustments

Timing Marks:

Because a distributorless ignition system is utilized, ignition timing can be checked but cannot be adjusted.

1. Warm up engine.
2. Confirm that throttle sensor idle switch is "ON."

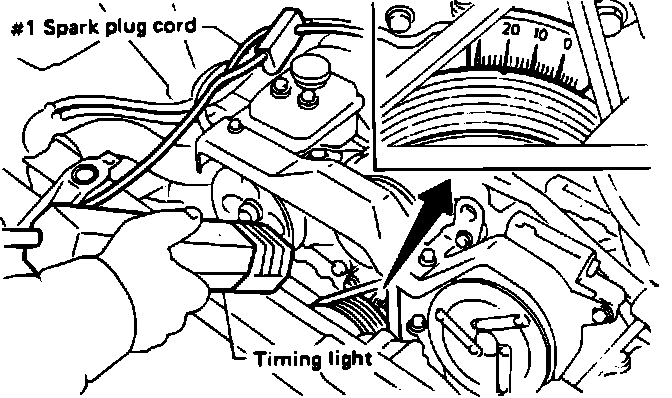

3. Connect a timing light to number 1 spark plug wire and check timing.

Ignition Timing (BTDC):
Manual Transmission: 20° ± 2° at 700 rpm
Automatic Transmission: 20° ± 8° at 700 rpm
