A/T Torque Data

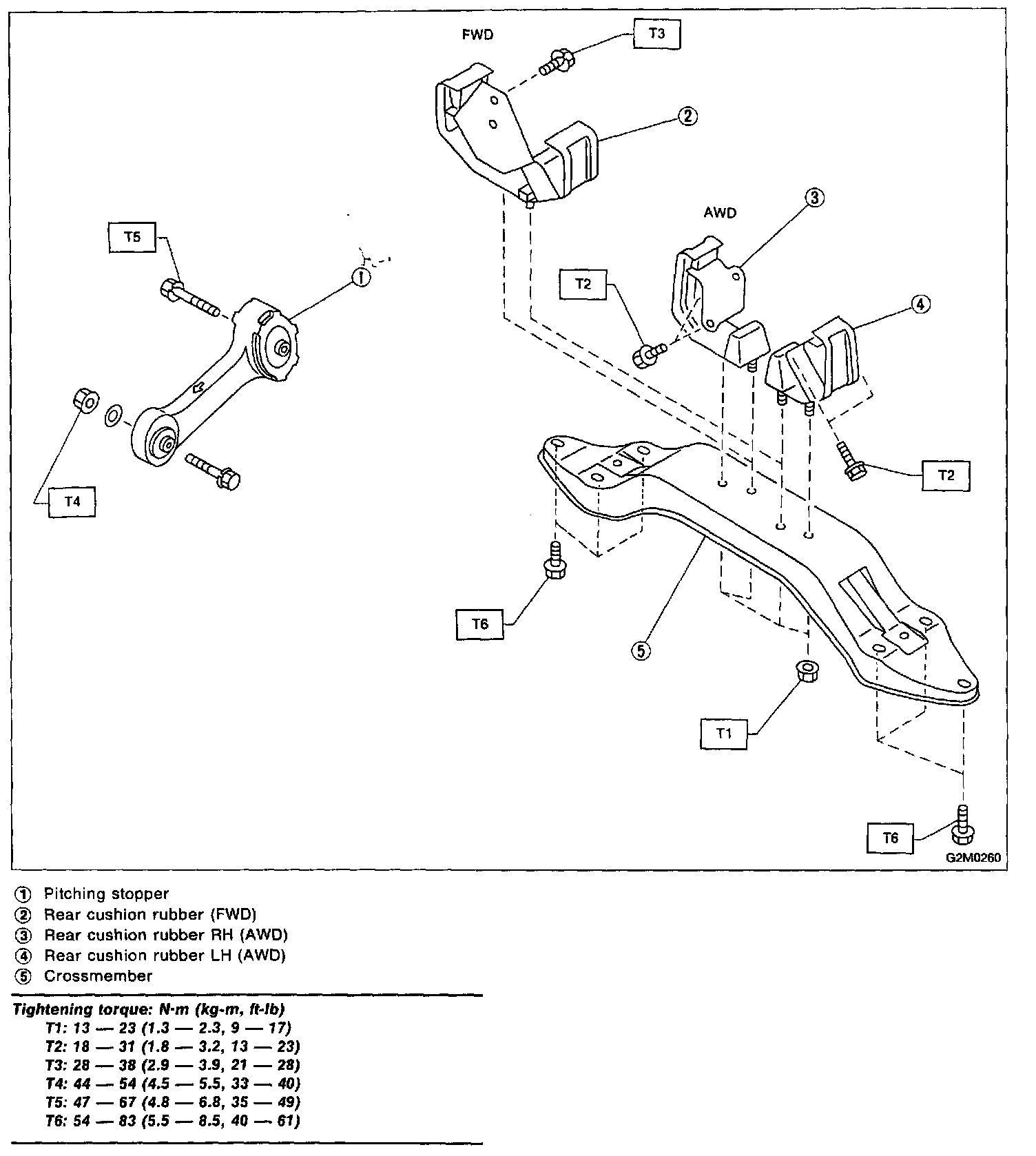

4-spd A/T. Transmission Mounting:



4-spd A/T, Transmission Control System:

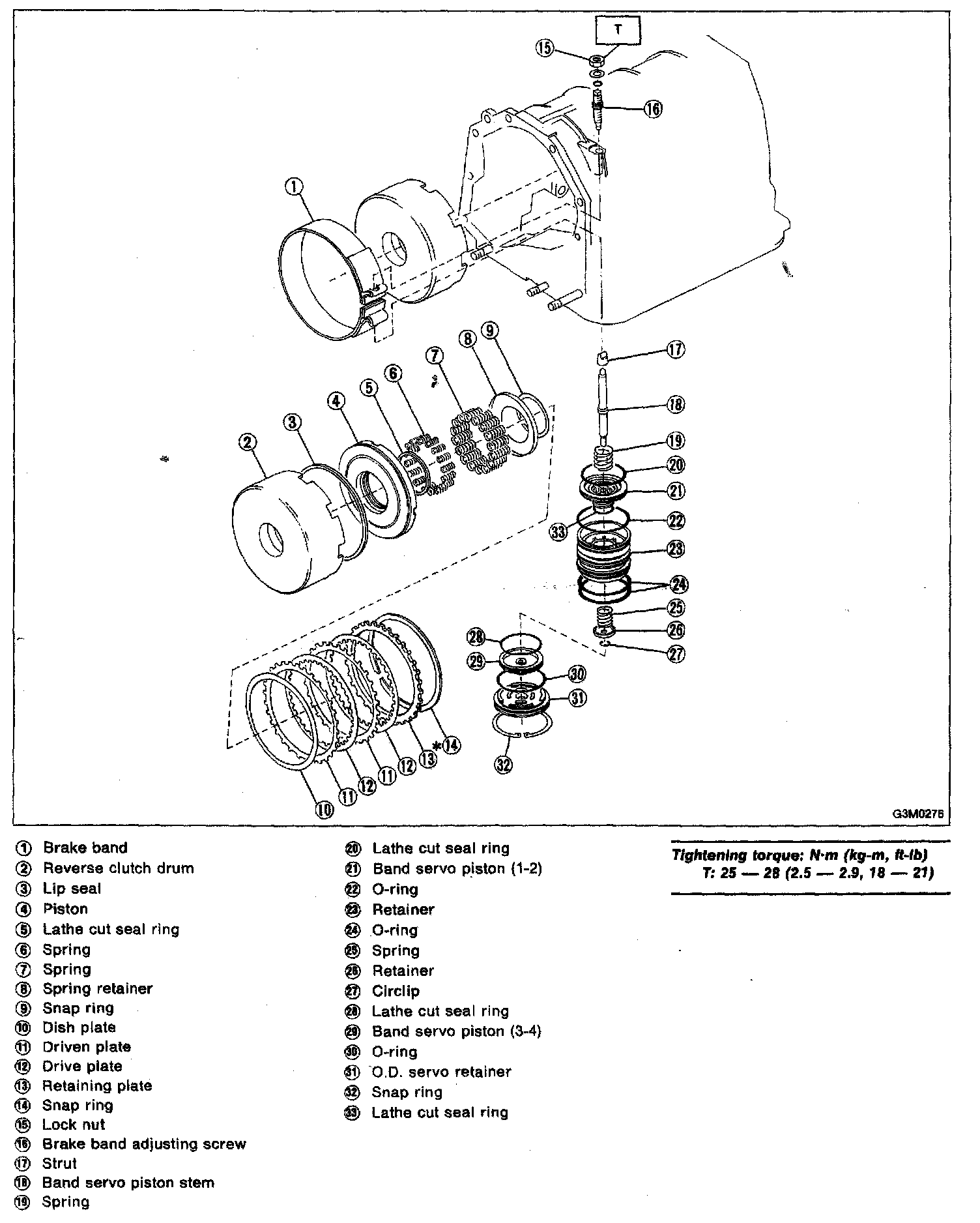

4-spd A/T, Reverse Clutch & Band Brake:

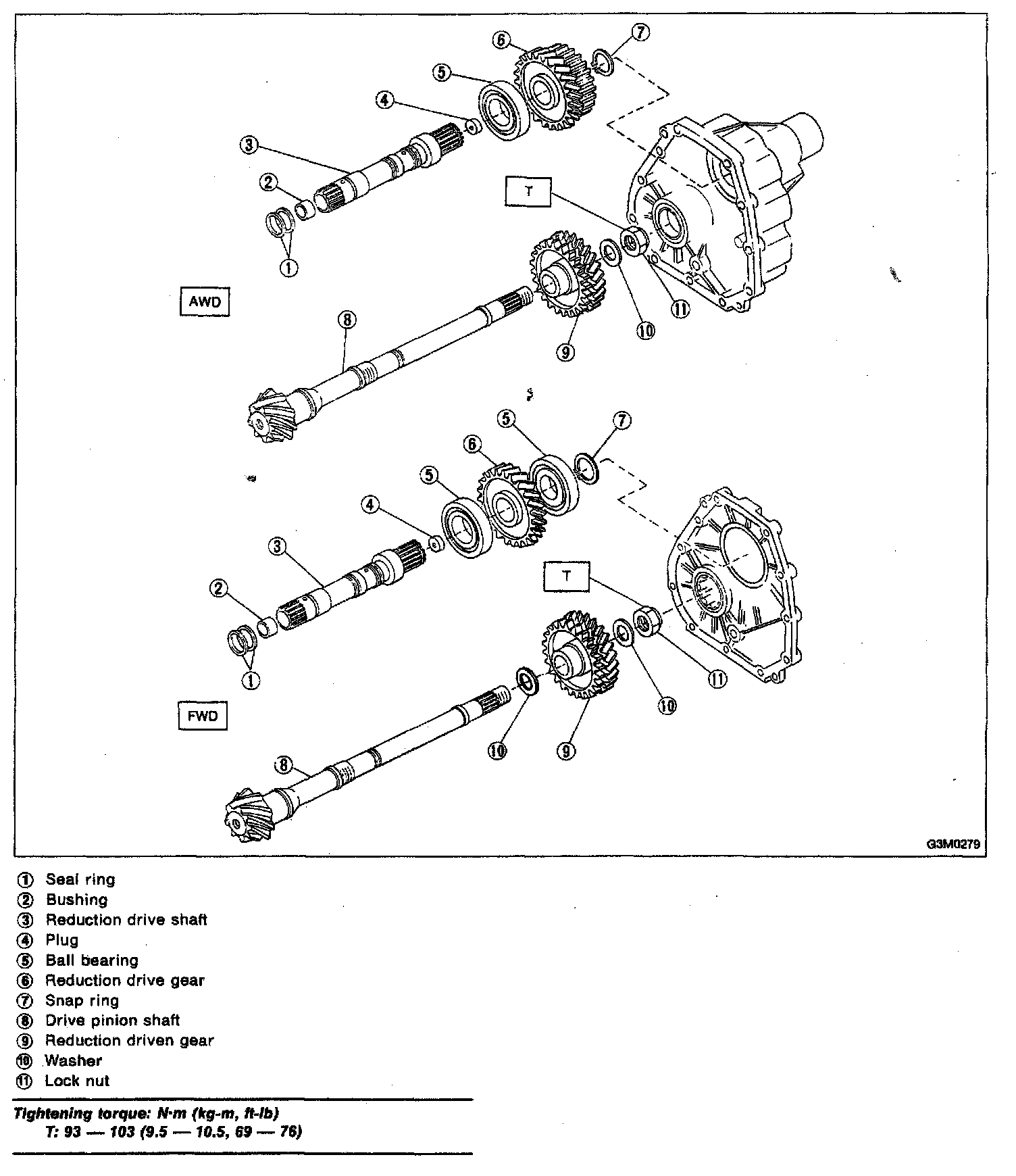

4-spd A/T, Transmission Reduction Gear:

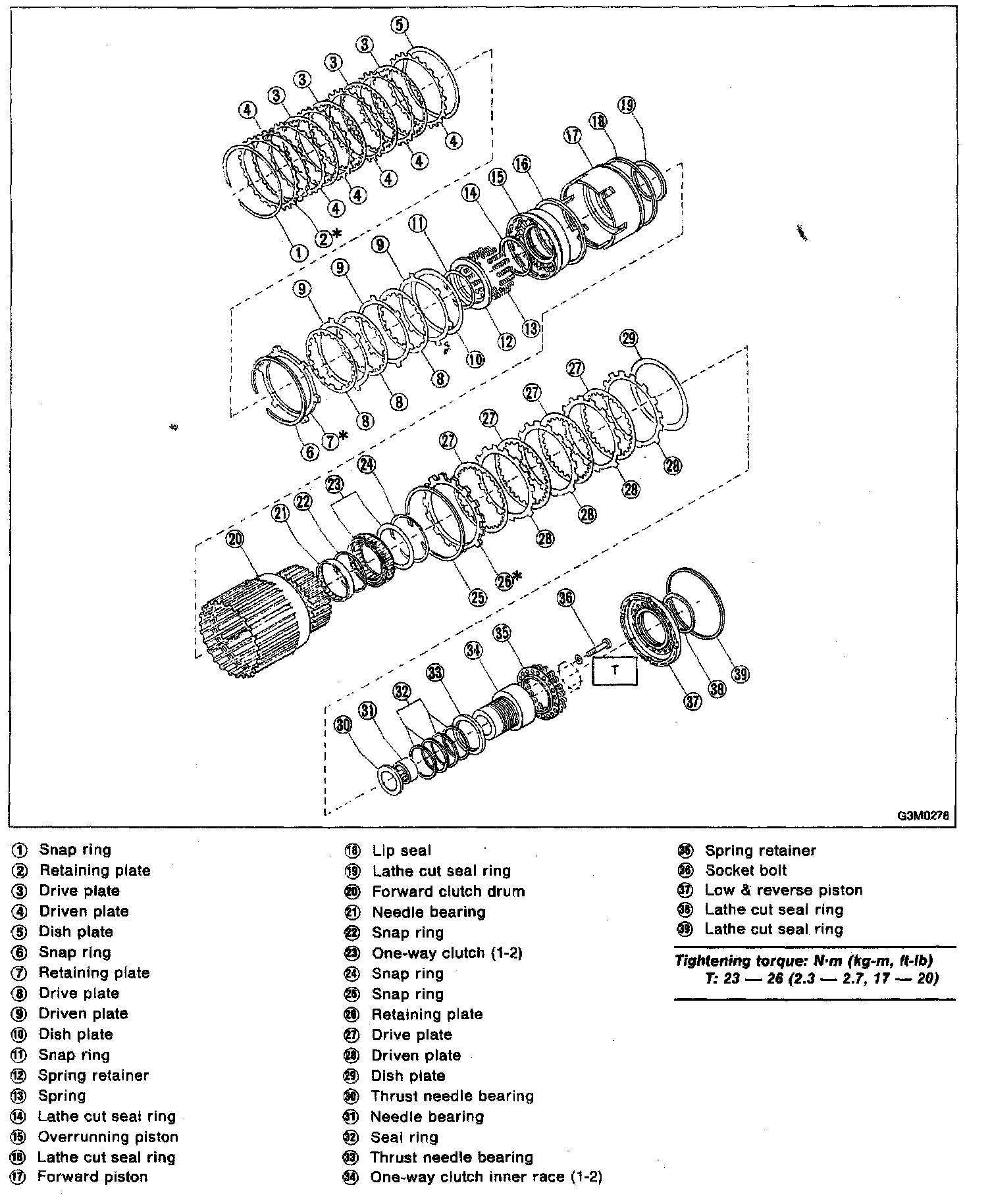

4-spd A/T, Forward Clutch And Low & Reverse Brake:



4-spd A/T, Transfer & Transmission Extension:

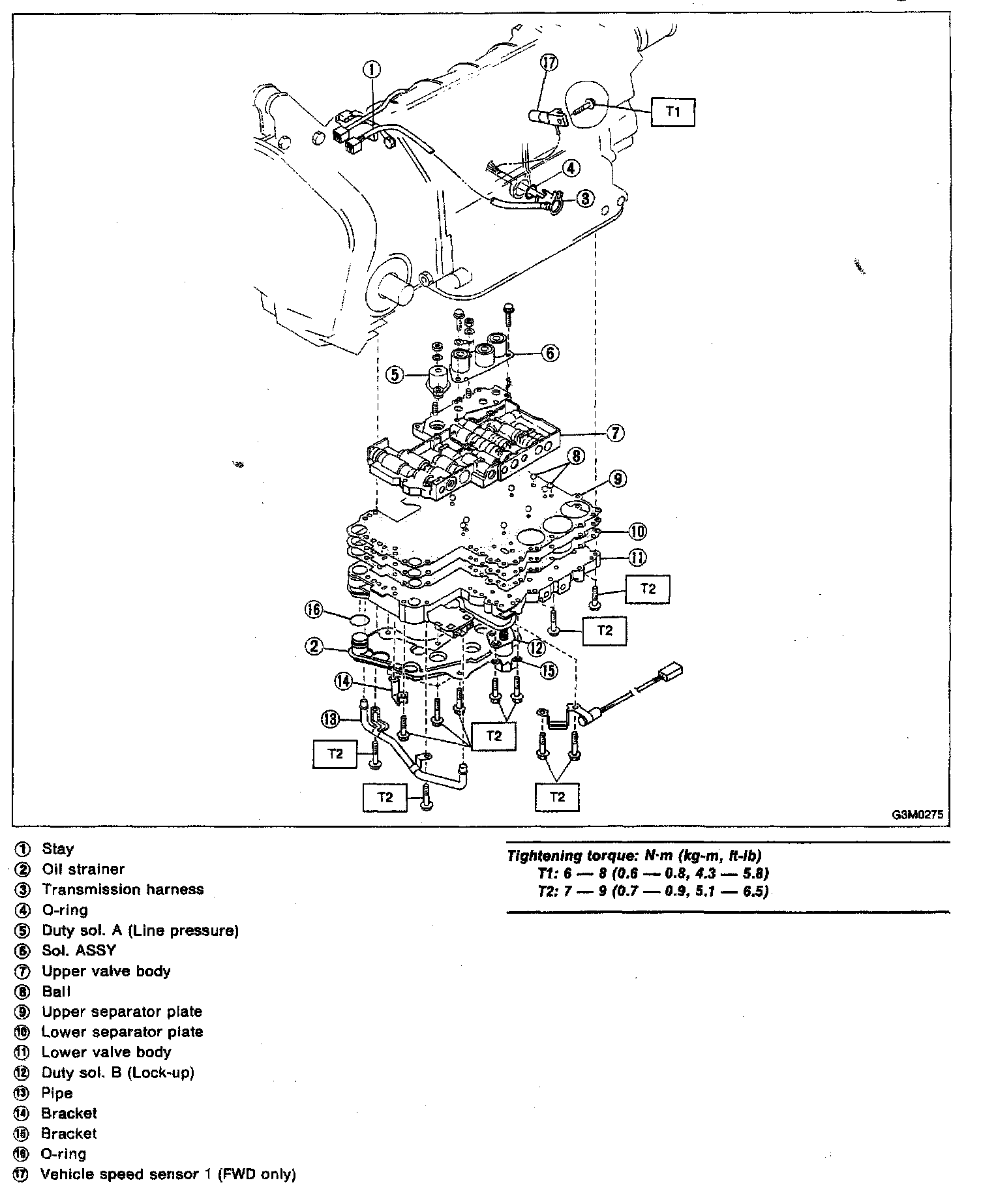

4-spd A/T, Control Valve & Harness:

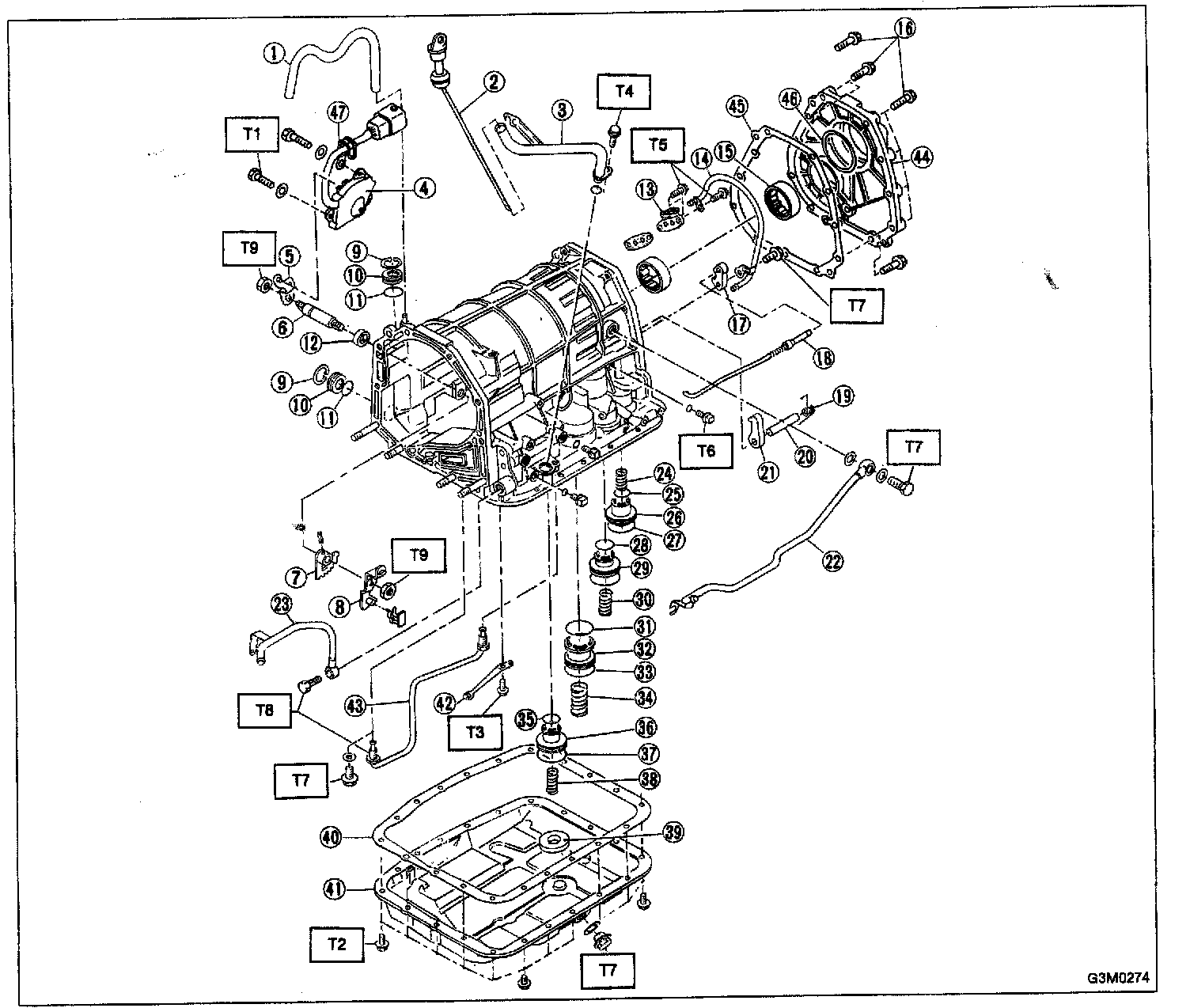

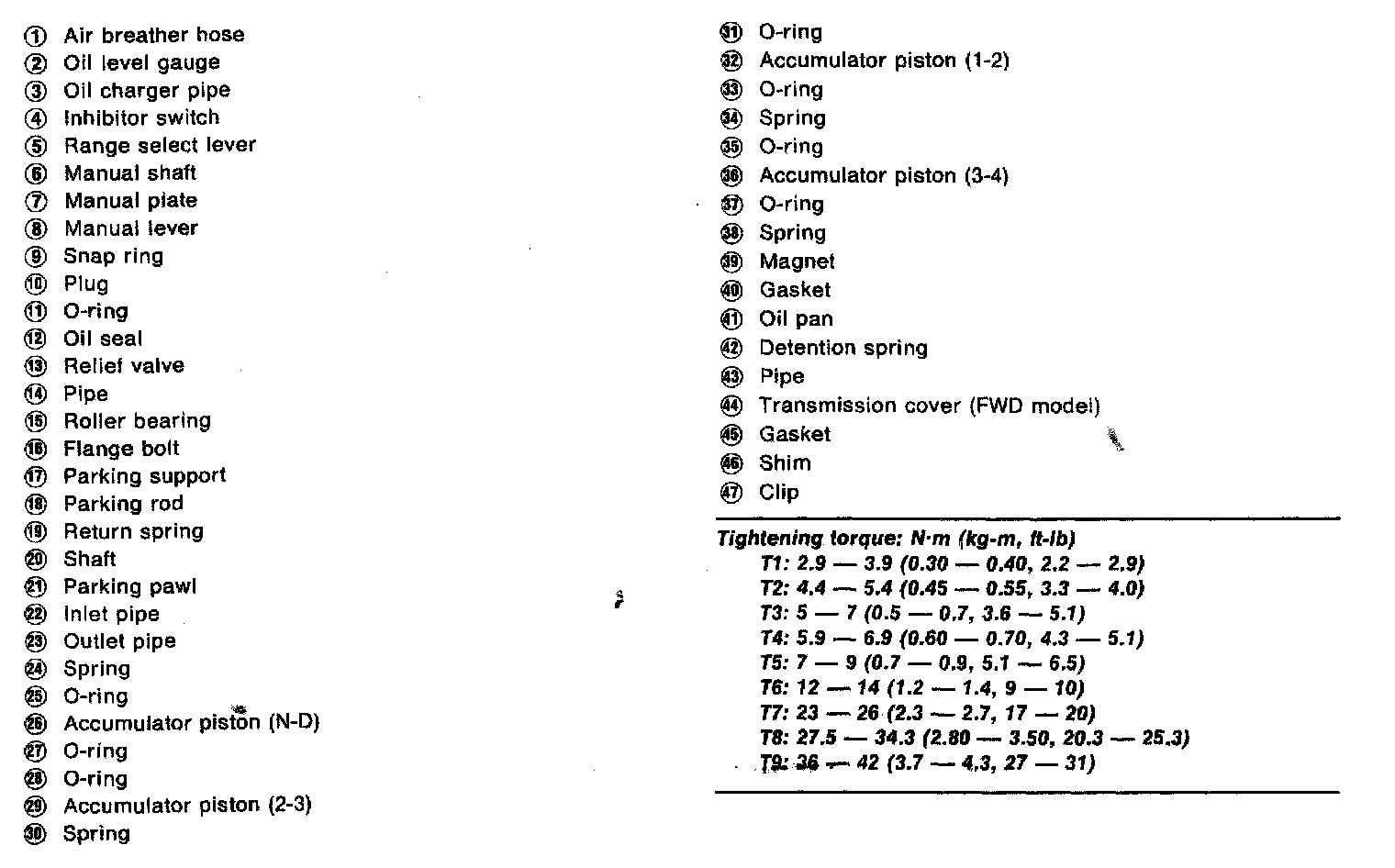

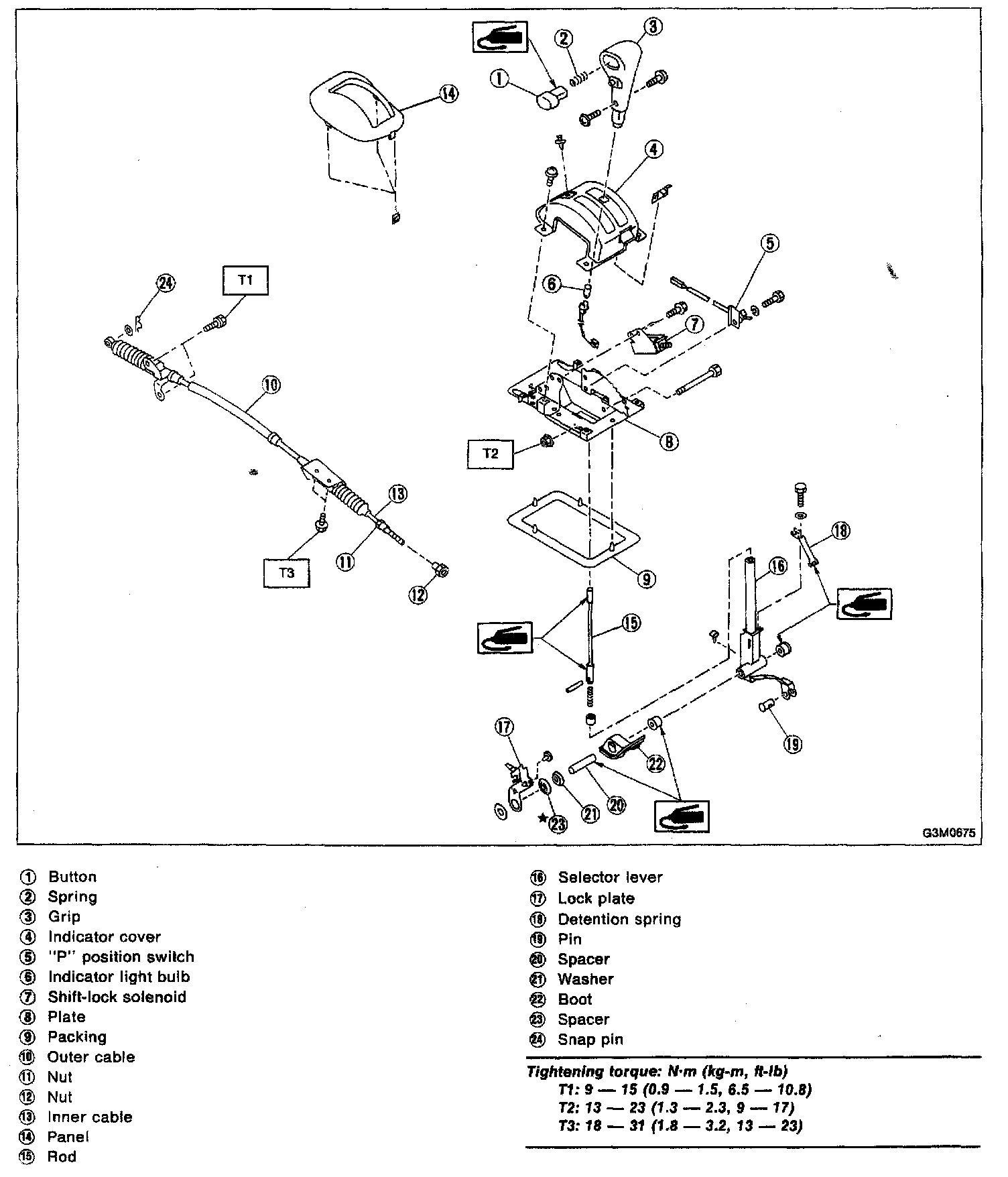

4-spd A/T, Transmission Case, Cover & Control Device (2 Of 2):



4-spd A/T, Transmission Case, Cover & Control Device (1 Of 2):

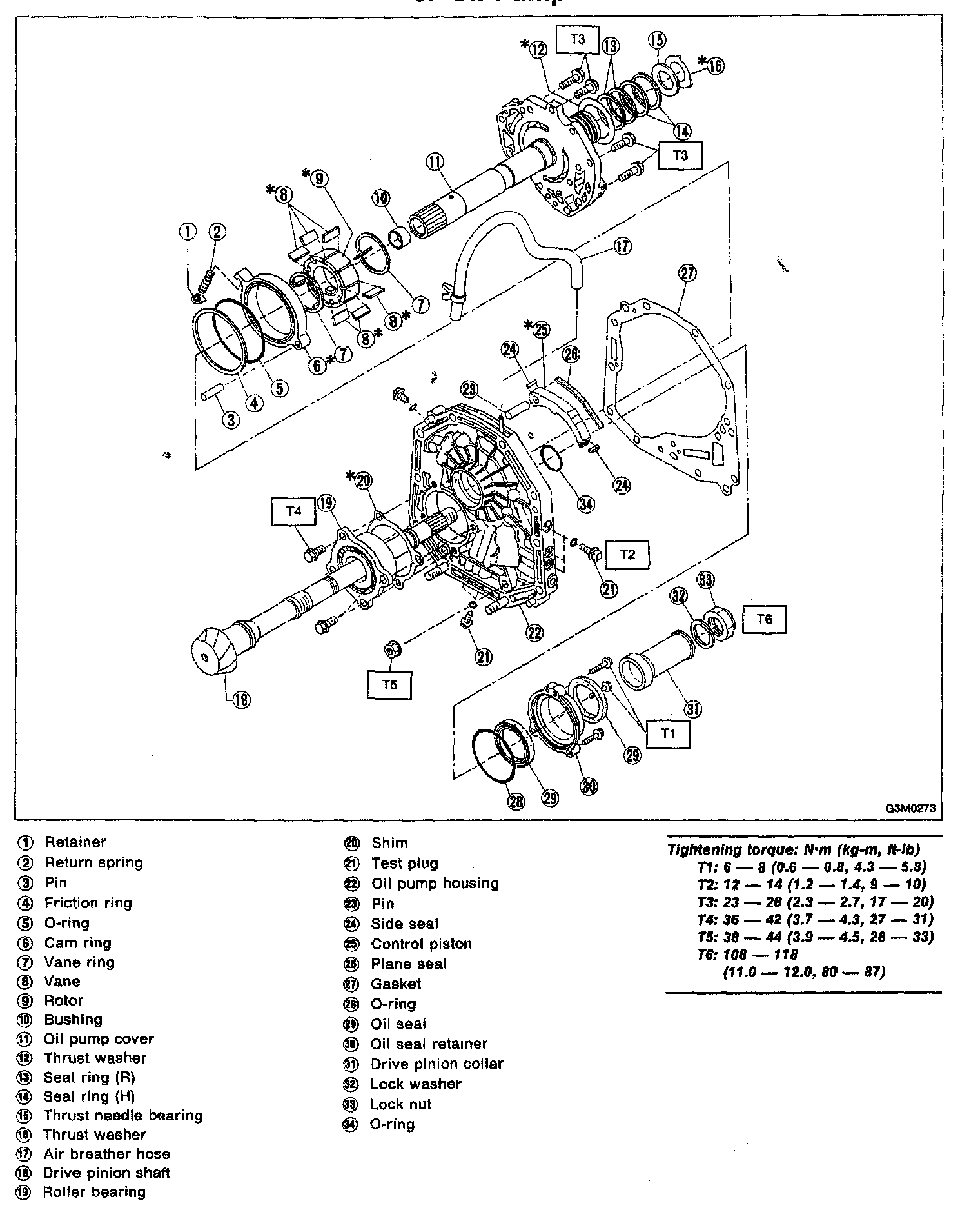

4-spd A/T, Transmission Oil Pump:

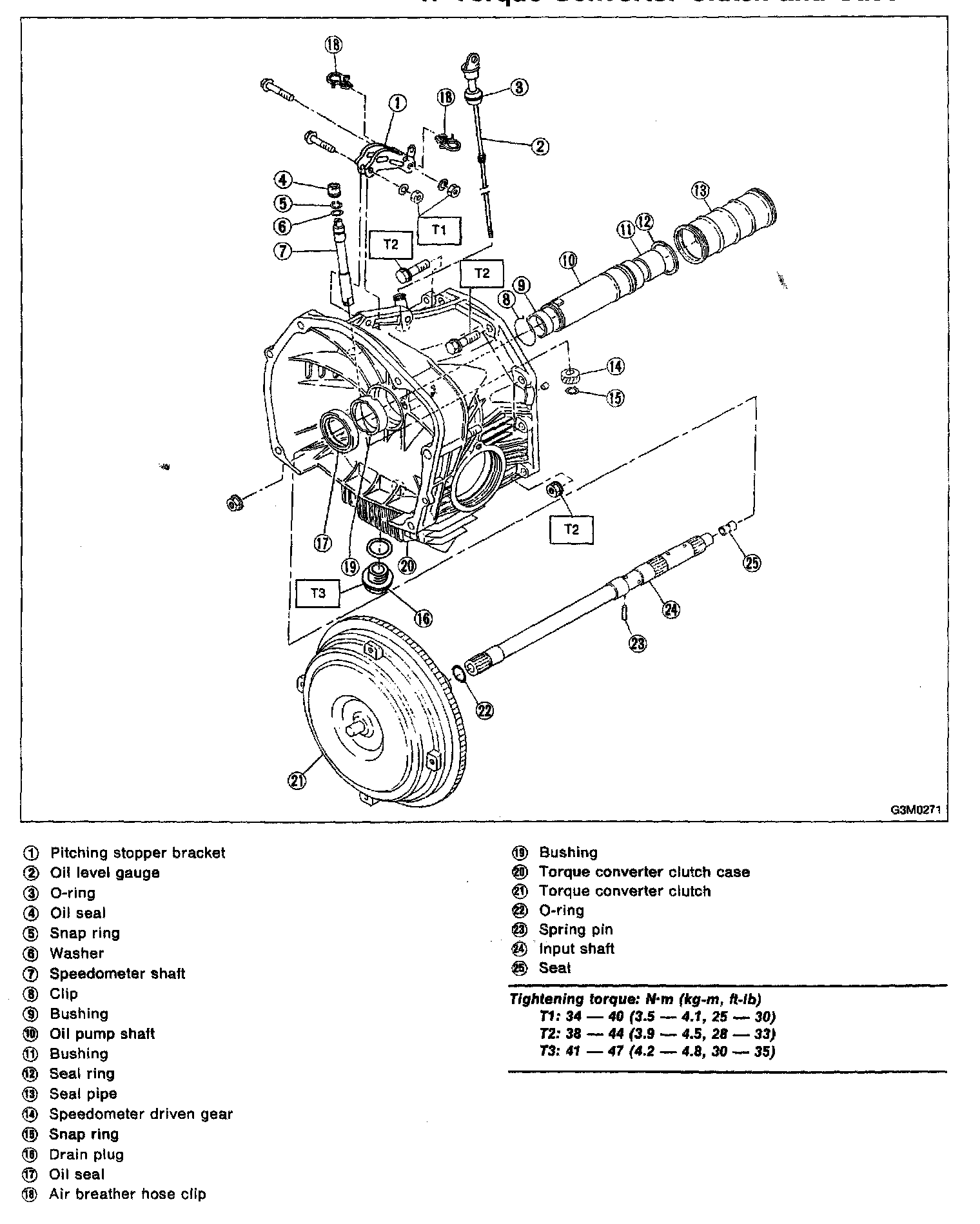

4-spd A/T, Torque Converter Clutch & Case:
